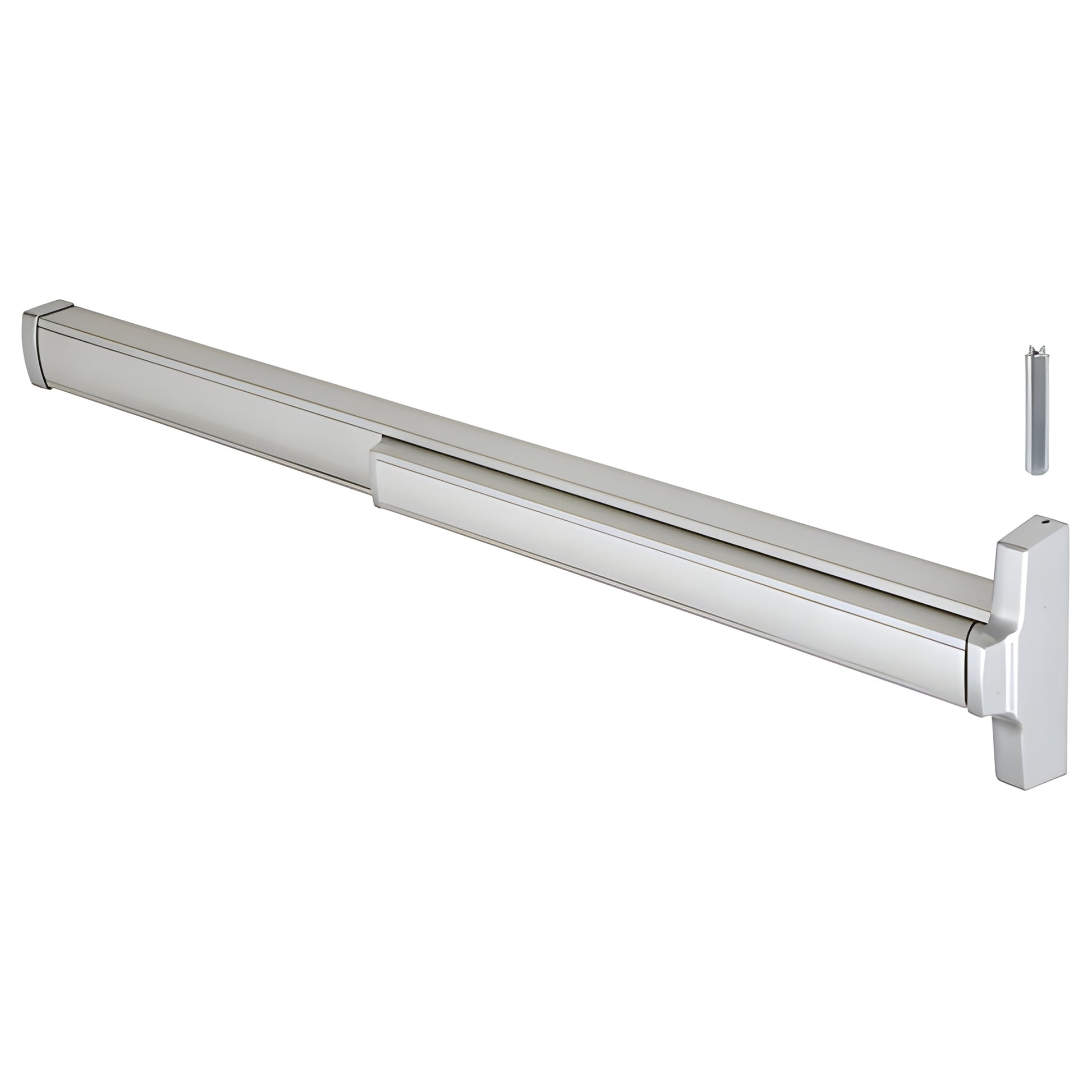

CRL 48" JacksonĀ® Model 2086 Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Aluminum Finish
CRL 48" JacksonĀ® Model 2086 Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Aluminum Finish
Regular price
$885.03 CAD
Regular price
Sale price
$885.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312086R47628
Shipping Weight: 12.8 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 12.8 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 2086 |
| Panic Bar Base Height 2-7/8 in. | (73 mm) |
| Panic Bar Projection 3 in. | (76.2 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Push Button |
| Panic Head Height 7-5/16 in. | (185.7 mm) |
| Panic | Type Concealed Vertical Rods Top Bolt |
| Push Pad Width 23-1/2 in. | (596.9 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Series | 20 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Model 2086 Concealed Vertical Rod Panic Exit Devices offer superior security and functionality, designed specifically for 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.
These high-quality devices are UL Listed and comply with ANSI 156.3, Grade 1 specifications, ensuring top-notch performance and durability.
Featuring a concealed fastening system for enhanced security and available in Dark Bronze and Satin Aluminum anodized finishes, these devices come in two standard lengths (36" and 48") and can be easily cut to fit custom openings.
For doors over 84", consider ordering the Top Rod Extender, and for keyed access, optional Cylinder Dogging and JacksonĀ® Model 8500LV Outside Lever Trim are available.
These high-quality devices are UL Listed and comply with ANSI 156.3, Grade 1 specifications, ensuring top-notch performance and durability.
Featuring a concealed fastening system for enhanced security and available in Dark Bronze and Satin Aluminum anodized finishes, these devices come in two standard lengths (36" and 48") and can be easily cut to fit custom openings.
For doors over 84", consider ordering the Top Rod Extender, and for keyed access, optional Cylinder Dogging and JacksonĀ® Model 8500LV Outside Lever Trim are available.
