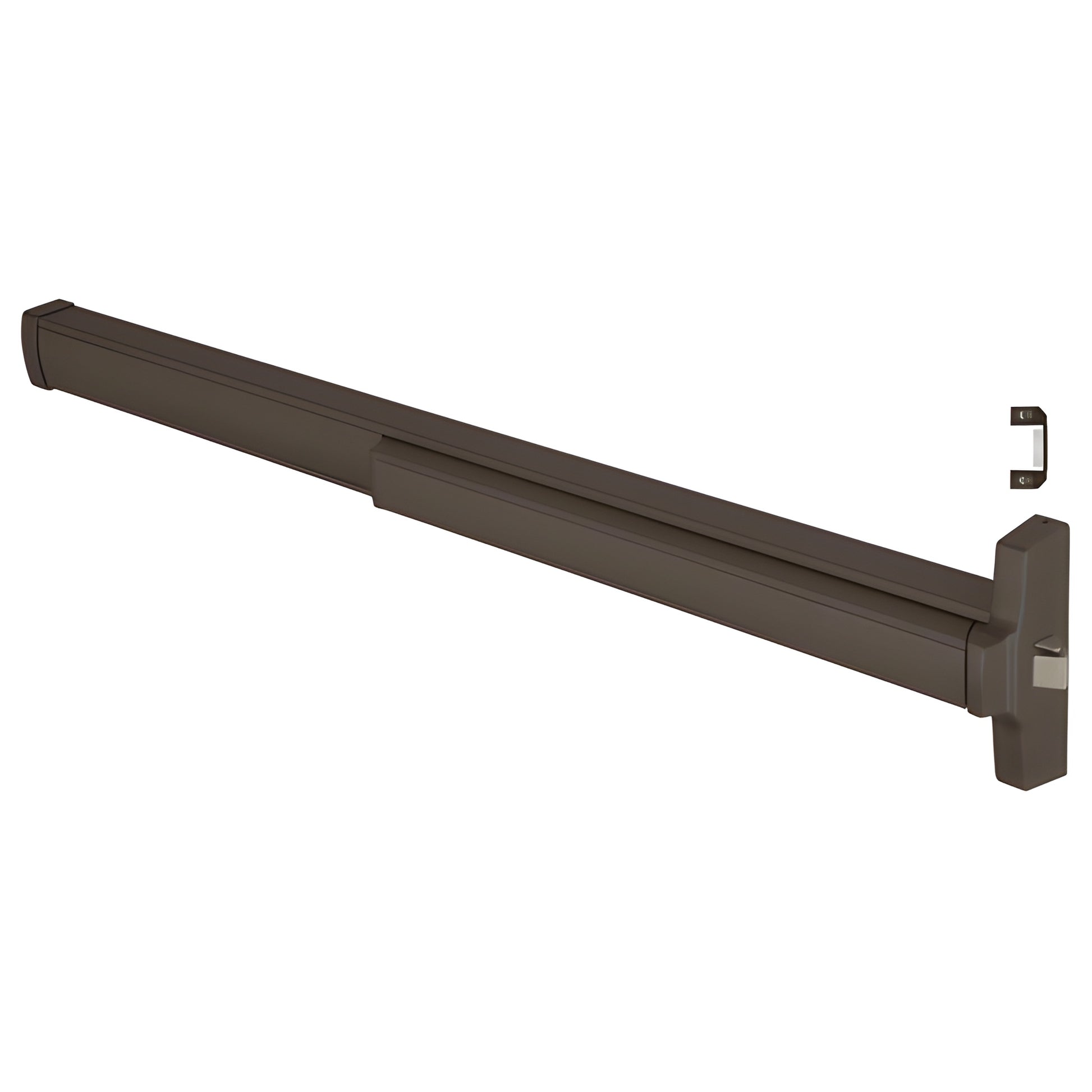

CRL 48" JacksonĀ® Model 2095 Grade 1 Rim Latch Panic Exit Device Right Hand Reverse Bevel with 'C' Strike 4 Foot Dark Bronze Finish
CRL 48" JacksonĀ® Model 2095 Grade 1 Rim Latch Panic Exit Device Right Hand Reverse Bevel with 'C' Strike 4 Foot Dark Bronze Finish
Regular price
$956.71 CAD
Regular price
Sale price
$956.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312095RC4313
Shipping Weight: 9.1 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 9.1 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Dark Bronze |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 2095 |
| Panic Bar Base Height 2-7/8 in. | (73 mm) |
| Panic Bar Projection 3 in. | (76.2 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Push Button |
| Panic Head Height 7-5/16 in. | (185.7 mm) |
| Panic | Type Rim |
| Push Pad Width 23.5 in. | (596.9 mm) |
| Recommended | Door Type Aluminum Narrow,Medium,Wide Stile, Wood,Hollow Metal |
| Replacement Parts DL | 911SCKDDU,DL2170SCKDDU,302989313 |
| Series | 20 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Model 2095 Rim Latch Panic Devices are expertly crafted to meet ANSI 156.3, Grade 1 specifications, ensuring high quality and durability.
These UL Listed devices are suitable for narrow, medium, and wide stile aluminum doors, as well as wood and hollow metal doors, offering secure concealed fastening and a sleek appearance.
Featuring a "Soft Touch" smooth quiet action push pad, these devices are easy to install and can be cut to size.
Available in Dark Bronze and Satin Aluminum anodized finishes, they come with a standard Type 'C' Strike and optional keyed entry capabilities.
For more information on installation and optional accessories, please contact CRL Customer Service.
These UL Listed devices are suitable for narrow, medium, and wide stile aluminum doors, as well as wood and hollow metal doors, offering secure concealed fastening and a sleek appearance.
Featuring a "Soft Touch" smooth quiet action push pad, these devices are easy to install and can be cut to size.
Available in Dark Bronze and Satin Aluminum anodized finishes, they come with a standard Type 'C' Strike and optional keyed entry capabilities.
For more information on installation and optional accessories, please contact CRL Customer Service.
Specifications
Installation Instructions
