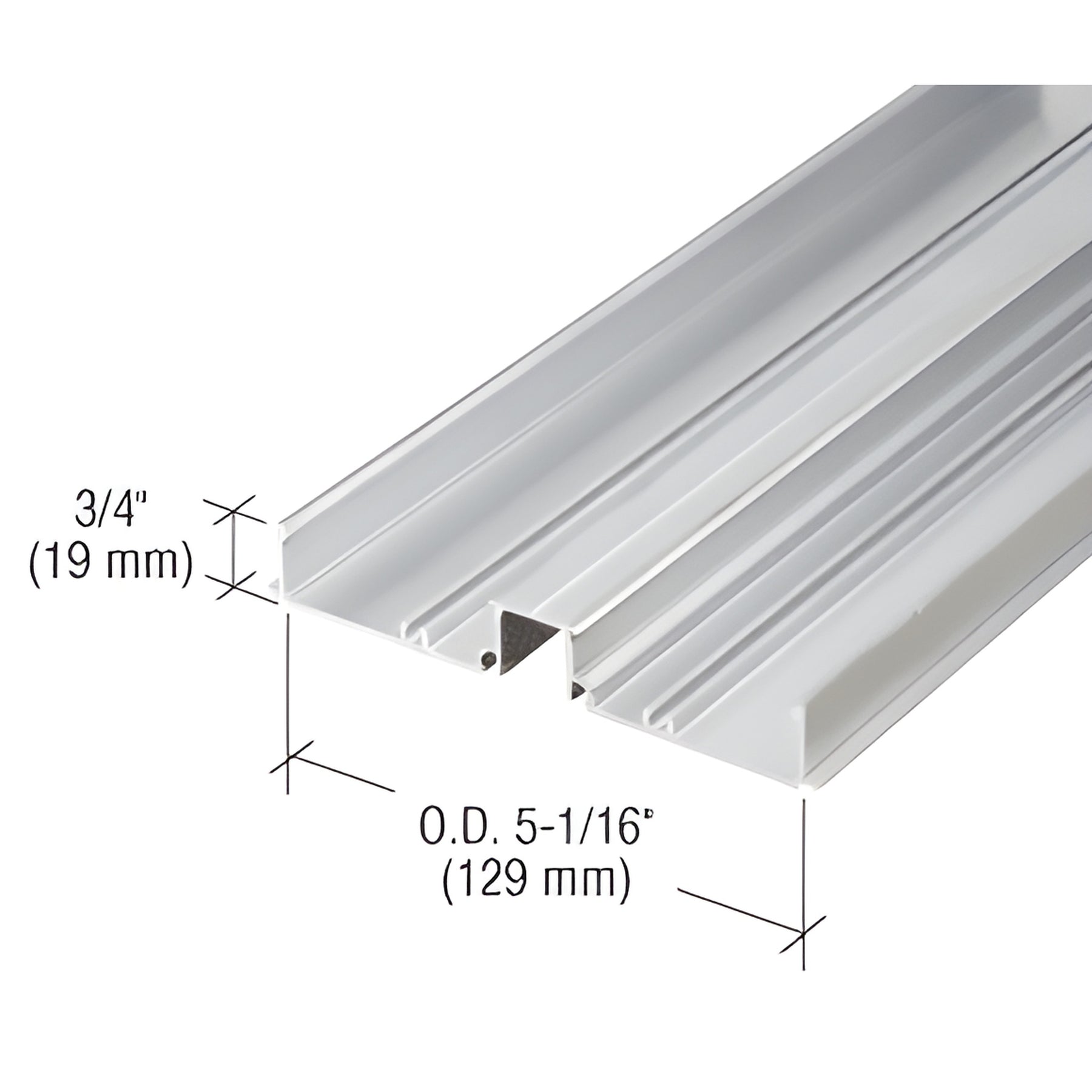

CRL 487 Clear Anodized OfficeFront™ Horizontal Mullion Base - 24'-2"
CRL 487 Clear Anodized OfficeFront™ Horizontal Mullion Base - 24'-2"
Regular price
$273.22 CAD
Regular price
Sale price
$273.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 487X50311
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Clear Anodized |
| Glazing Thickness | 3/8 in. (10 mm) |
| Glazing | Type Tempered, Tempered Laminated |
| Length 290 in. | (7366 mm) |
Overview
The CRL 487 Series Office Partition Extrusions are expertly crafted for versatile applications, such as Sidelites, Borrowed Lites, and Cased Openings.
Available in a convenient 24'-2" (7.3 M) stock length, these extrusions are compatible with 487X504 Glazing Stop and 487X015 Face Trim.
Designed to accommodate 1/4", 3/8", 1/2", and 9/16" (6, 10, 12, and 14 mm) glazing, they come in Clear, Bronze, and Black Anodized Finishes, with custom-painted options available upon request.
The innovative framing members support both clip joinery for quick on-site installation and screw spline assembly for shop fabrication, ensuring flexibility and ease of installation.
Available in a convenient 24'-2" (7.3 M) stock length, these extrusions are compatible with 487X504 Glazing Stop and 487X015 Face Trim.
Designed to accommodate 1/4", 3/8", 1/2", and 9/16" (6, 10, 12, and 14 mm) glazing, they come in Clear, Bronze, and Black Anodized Finishes, with custom-painted options available upon request.
The innovative framing members support both clip joinery for quick on-site installation and screw spline assembly for shop fabrication, ensuring flexibility and ease of installation.
