CRL Mab-Type Spindle, 5/16" Collar Height — Replacement Part
Item# CRL9050S8
Shipping Weight: 4.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Collar Height
5/16
Handing
Non Handed
Material
Aluminum
Standard Door Cleareance
1/2
Style
Mab Square Tapered
- For use with all CRL models, Jackson® 900, and DORMA® BTS80 series floor mounted door closers
- Six available collar heights from 1/8" to 1-5/16" (3 to 33 mm)
- MAB type (square tapered) and flat tapered spindles
SKU: CRL9050S8
CRL flat tapered and MAB (square tapered) spindles accommodate a range of threshold and finished-floor heights for floor mounted door closers. Compatible with all CRL models, Jackson® 900, and DORMA® BTS80 series closers, these spindles allow use of center-hung and offset bottom arms and work with CRL patch fitting inserts. The MAB style spindle is a common choice in Europe and South America for floor-mounted door closer installations.
Product Warning:

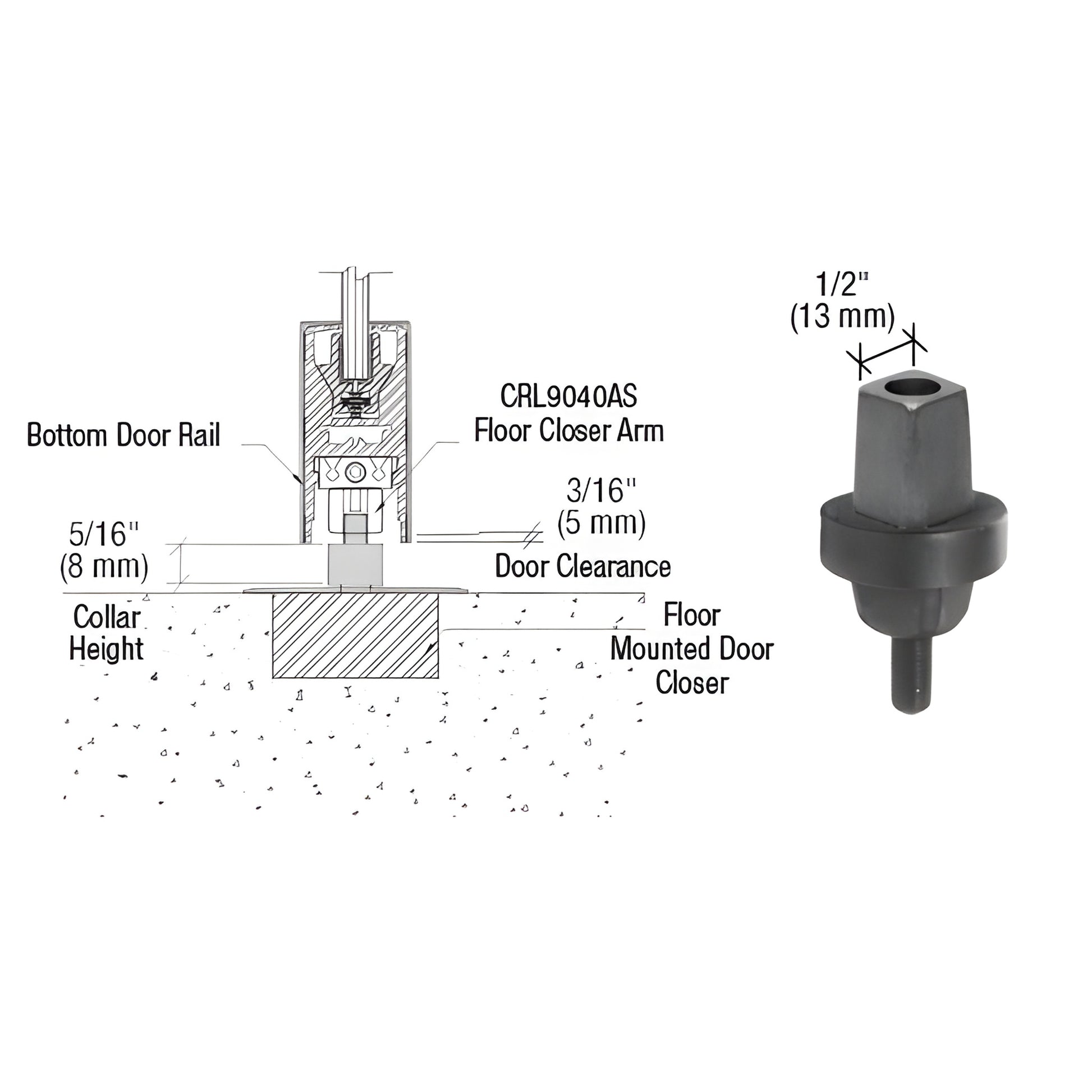

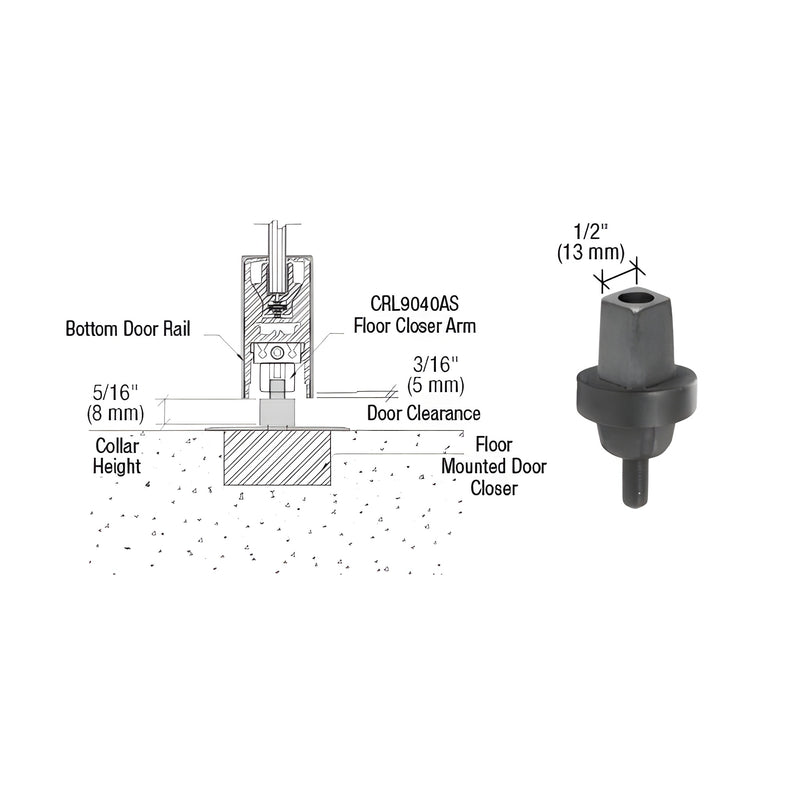

To determine actual door clearance from finished floor, add 3/16" (5 mm) to the collar height.
Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this information from CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Order the CRL9050S8 spindle for reliable floor mounted door closer compatibility — contact CRL Customer Service to confirm collar height for your installation.
