CRL 60" Long Outside Rail for Multi-Purpose Glass Storage System

• Fixed Post System for wood cases, glass packs, and loose lites
• Rated up to 4,000 lb. (1814 kg) between posts
• Customize using individual components or choose one of the kits

CRL Multi-Purpose Glass Storage Systems provide upright storage for glass cases, glass packs, and loose lites. All standard components feature a hot-dip galvanized finish for corrosion resistance and long service life. SKU: 2005423.

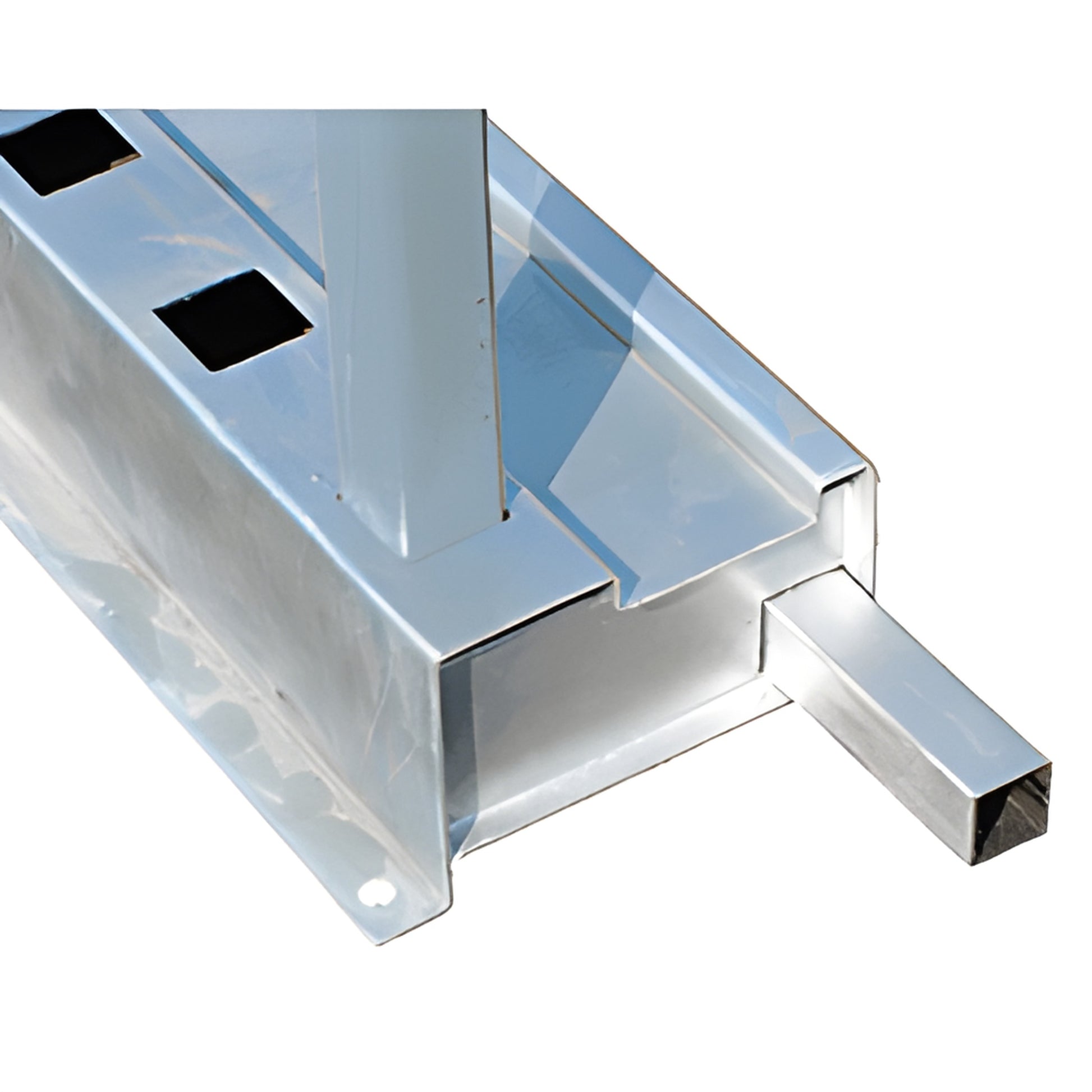

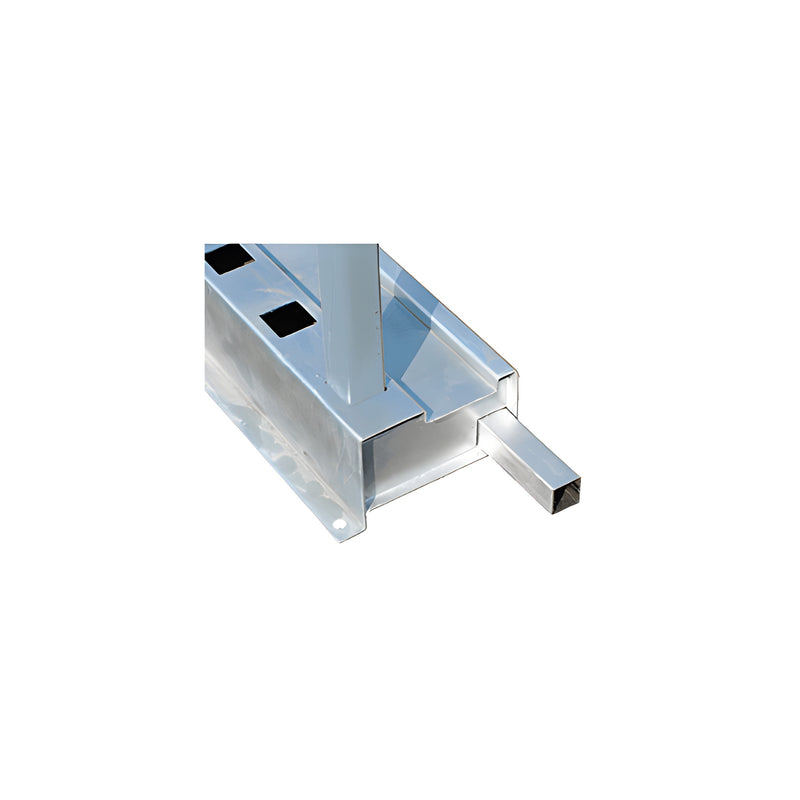

Base rails join in 60" (1.52 m) increments to create any required system length and are predrilled with 1/2" (12.7 mm) holes for anchoring to the shop floor. Rails remain aligned when butted together using a 1" (25 mm) square slip-joint tube that ensures a straight run.
Notes:
Dimensions: Rail size: 11" x 5.5" x 60"
Center rail size: 4.5" (7.25" with flange) x 5.75"

Product Warning:

• Rails include slots to hold 2x4s, protecting slab edges and rail finish (2x4s not included). Optional Easy Slide System (low-friction material) mounts to the 2x4s for extra protection.
• Center rail with easy slide must be used to support glass when sliding individual pieces in and out of the rack.
• Includes 11" connector tube for butting rails together in a straight line to achieve desired length.
• Outside rails feature 2" square holes spaced 4" apart; a welded steel plate with matching holes is boxed inside the rails 1" up from the bottom.
• Includes 2" square tube posts and 2" square rubber post caps to separate and protect glass.
• Heavy-duty powder-coated finish available.
• Maintain a minimum 2° angle when dropping stone between posts.

Shop this heavy-duty upright glass storage rack for workshops and fabrication shops—customize components or order a complete kit. Contact CRL to order or request a quote.
