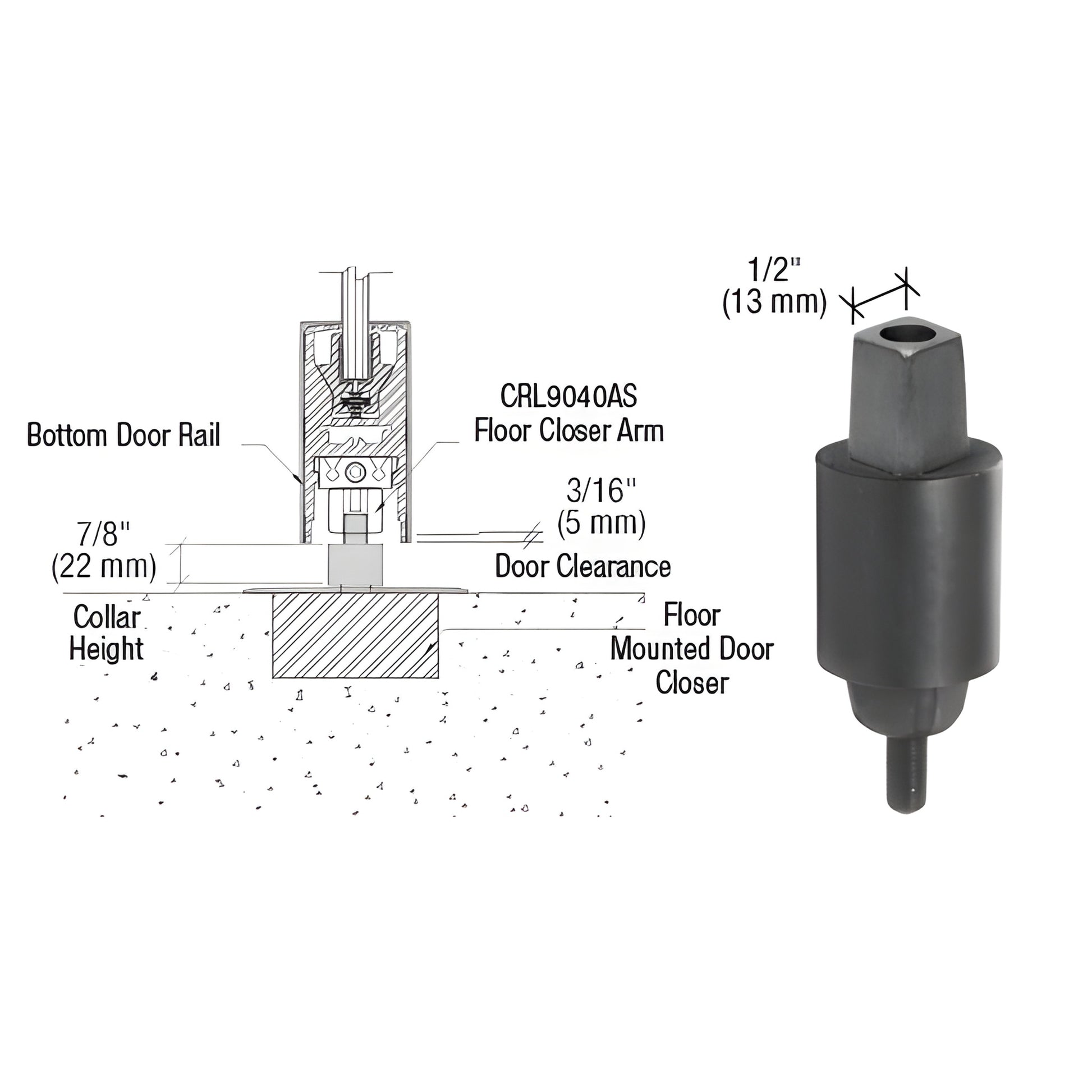

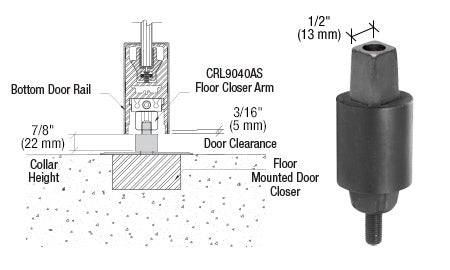

• CRL9050S23 MAB aluminum tapered spindle, 7/8" collar height, for floor-mounted door closers, shown with installation diagram.
1 1

CRL

CRL 7/8 in Mab-Type Spindle Collar Height - Door Hardware Replacement

CRL 7/8 in Mab-Type Spindle Collar Height - Door Hardware Replacement

$19.87 CAD
$19.87 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL9050S23
Shipping Weight: 2.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Collar Height
7/8
Handing
Non Handed
Material
Aluminum
Standard Door Cleareance
1 1/16
Style
Mab Square Tapered

Overview

  • For use with all CRL models, Jackson® 900, and DORMA® BTS80 series floor-mounted door closers
  • Six heights available: 1/8" to 1-5/16" (3 to 33 mm)
  • MAB type (square tapered) spindle

CRL Flat Tapered and MAB Type spindles (SKU: CRL9050S23) fit a range of threshold and finished-floor heights and are compatible with all CRL models, Jackson® 900, and Dorma® BTS80 floor-mounted door closers. Use the CRL flat tapered spindle with center-hung and offset bottom arms designed for this spindle style, plus CRL patch fitting inserts. The MAB-style spindle is commonly used in Europe and South America, making it a versatile choice for international and retrofit projects.

Product Warning:

To determine actual door clearance from finished floor, add 3/16" (5 mm) to the collar height. Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this from CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.



Order SKU CRL9050S23 now to match your floor-mounted door closer and threshold requirements.
