CRL Cielo 72 in Center Post Kit for Frameless Shower Doors
CRL Cielo 72 in Center Post Kit for Frameless Shower Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C72CKC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
6005-T6
Depth
4-1/2 in. (114 mm)
Finish/Color
Powder Coated
Glass Included
No
Glazing Thickness
1/2 in. & 9/16 in. (12 mm & 14 mm)
Height
72 in. (1829 mm)
Material
Aluminum
Width
3-1/4 in. (83 mm)
Overview
- Available Heights: 6, 7, and 8-Foot Posts
- Meets IBC 2018 Windload Requirements for High-Elevation Applications
- Durable 6005-T6 Aluminum Construction
- End Posts and Center Posts Available
- Surface or Core Mounting on Steel or Concrete
- Standard Finishes: Matte Black, Silver Metallic, and Sky White
- Glass Compatible: 1/2” Monolithic or 9/16” Laminated Glass

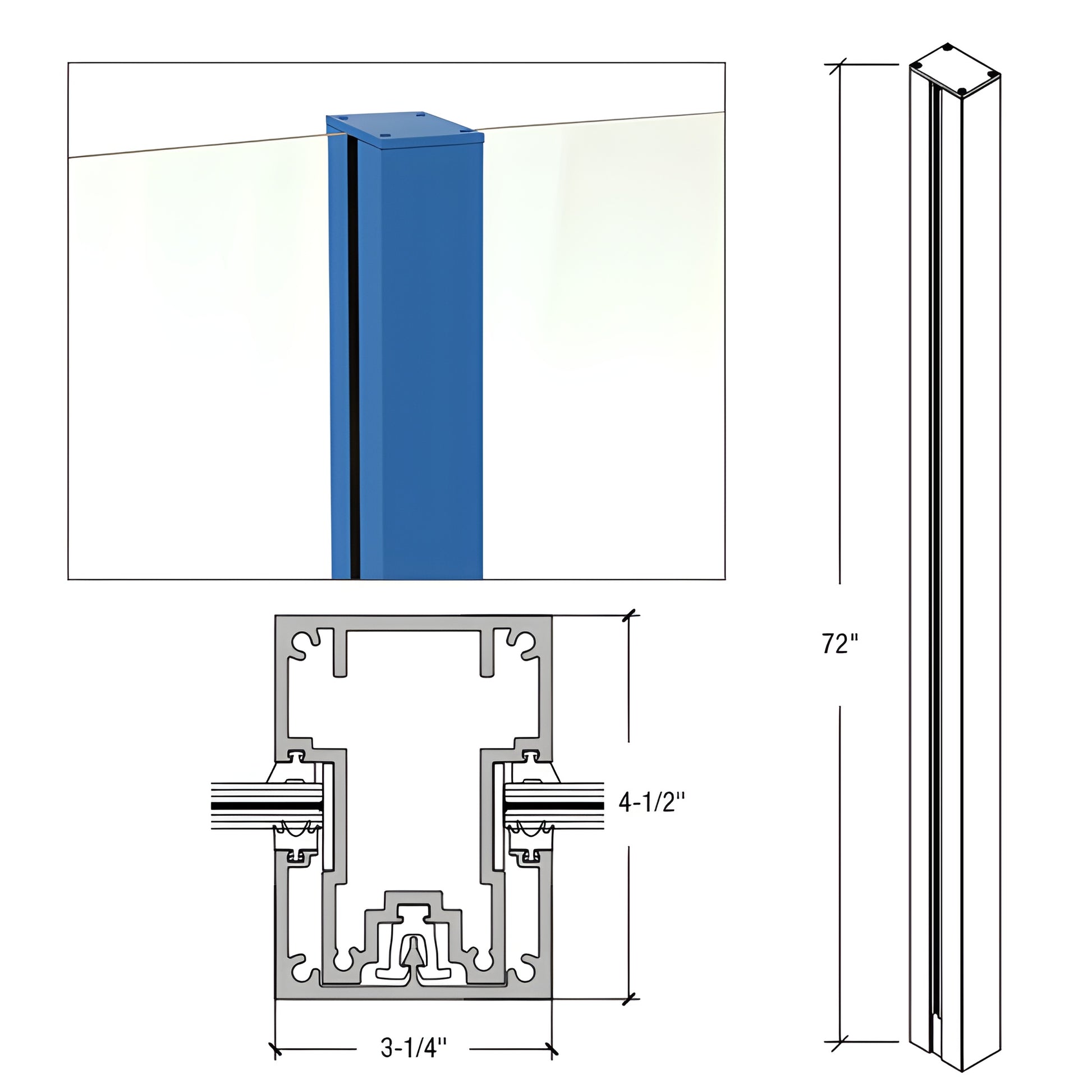

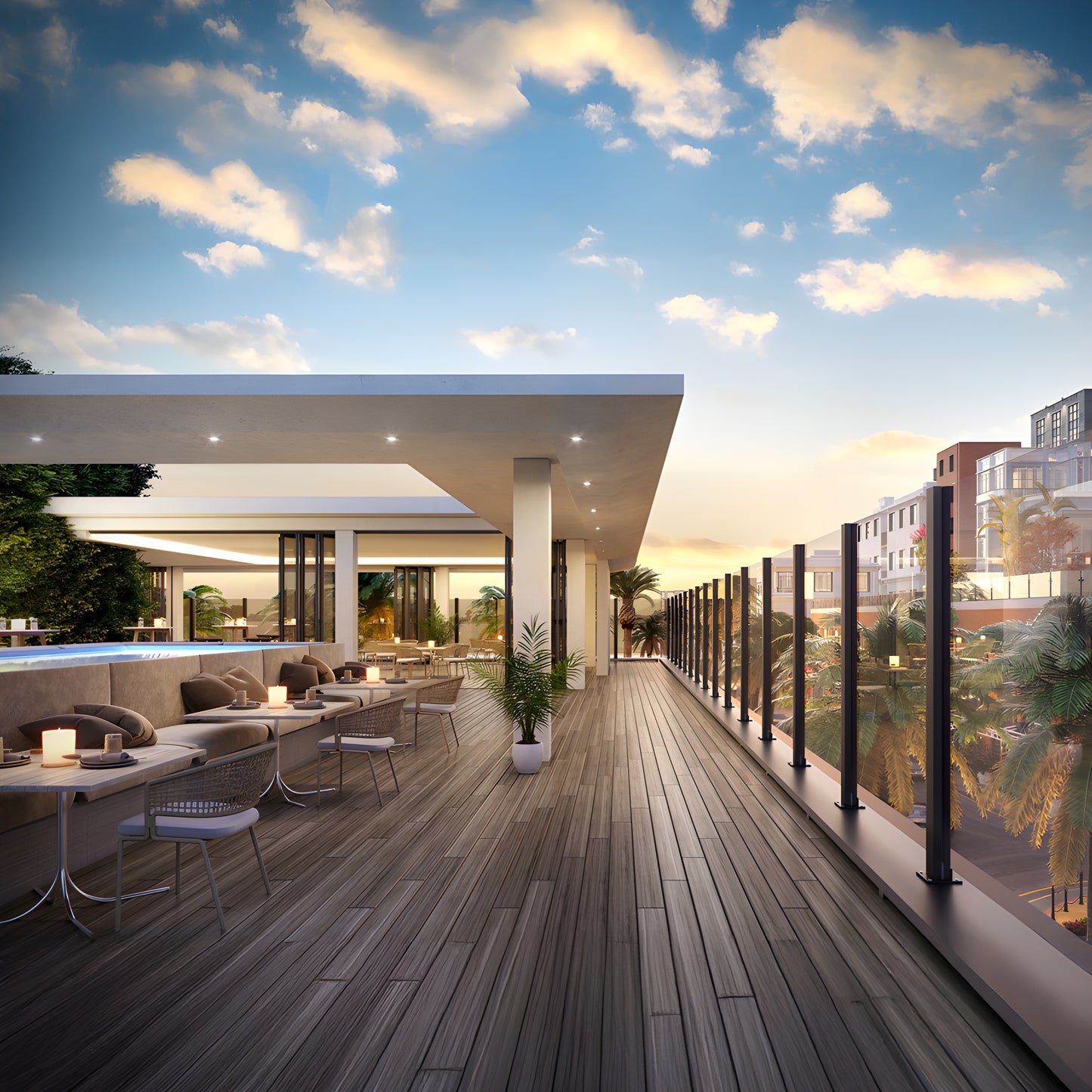

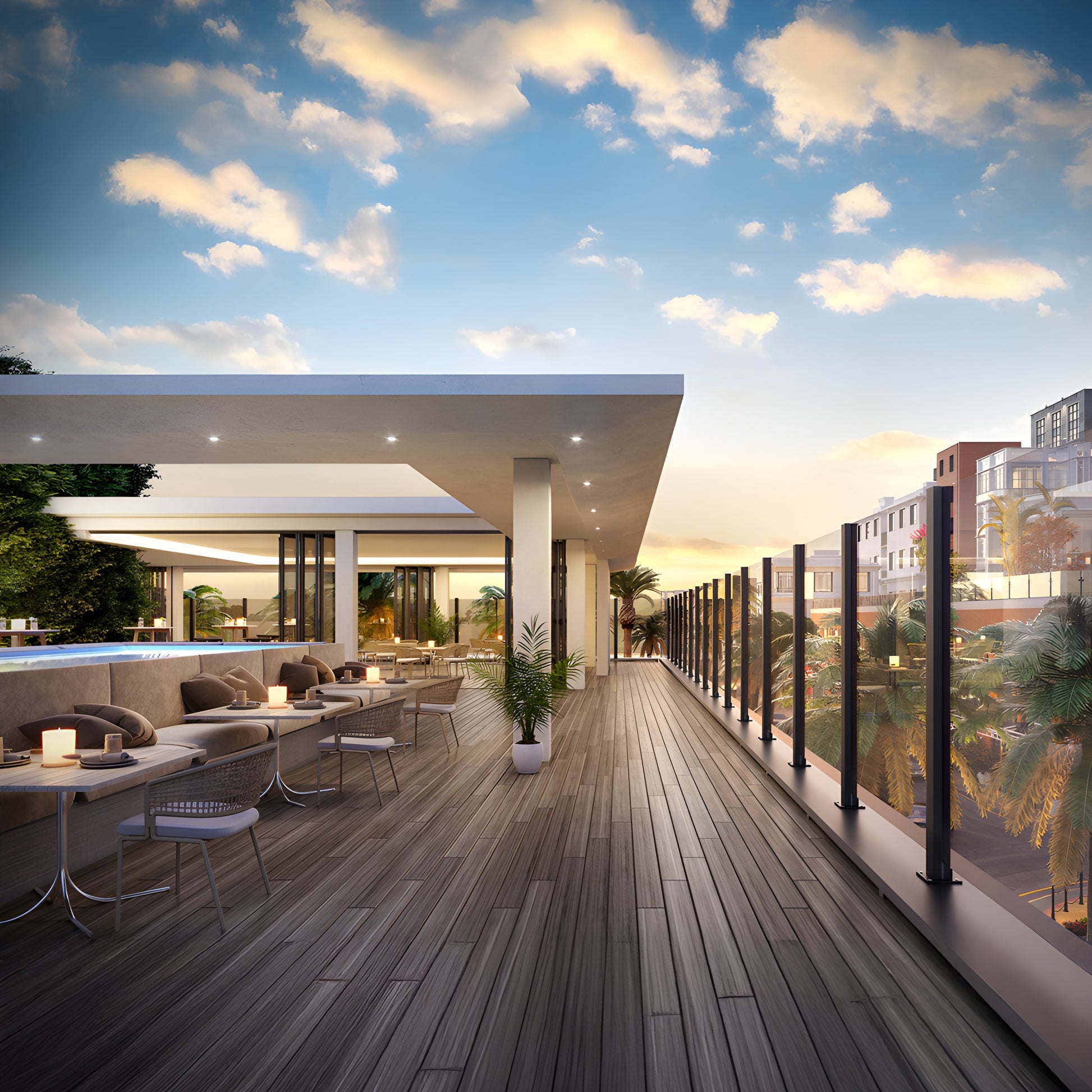

The Cielo Post Windscreen System (SKU: C72CKC) features a slim 3-1/4” front trim and 4-1/2” post depth for virtually unobstructed views and strong structural performance. Because no horizontal extrusions are required, the system enables expansive post-to-post glass spans—ideal for rooftop pools, outdoor dining, lounges, and other high-altitude exteriors.
Key differentiators include a unique snap-in cover system that conceals fasteners for a streamlined appearance and speeds installation, plus heavy-duty 6005-T6 aluminum posts engineered to meet IBC 2018 windload standards.
Recommended use: commercial and residential buildings requiring windscreens or glass railing solutions with high wind-resistance and clean sightlines.
Contact CRL for quotes, CAD details, and installation guidance or to order the Cielo Post Windscreen System today.
Specifications
BIM Objects - rvt
