CRL Cielo 72" Custom End Post Kit for Glass Railing
CRL Cielo 72" Custom End Post Kit for Glass Railing
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C72EKC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
6005-T6
Depth
4-1/2 in. (114 mm)
Finish/Color
Powder Coated
Glass Included
No
Glazing Thickness
1/2 in. & 9/16 in. (12 mm & 14 mm)
Height
72 in. (1829 mm)
Material
Aluminum
Width
3-1/4 in. (83 mm)
Overview
- Available post heights: 6, 7, and 8 feet
- Meets IBC 2018 windload requirements
- Durable 6005-T6 aluminum construction
- End posts and center posts available
- Surface-mount or core-mount options for steel or concrete
- Compatible with 1/2” monolithic or 9/16” laminated glass

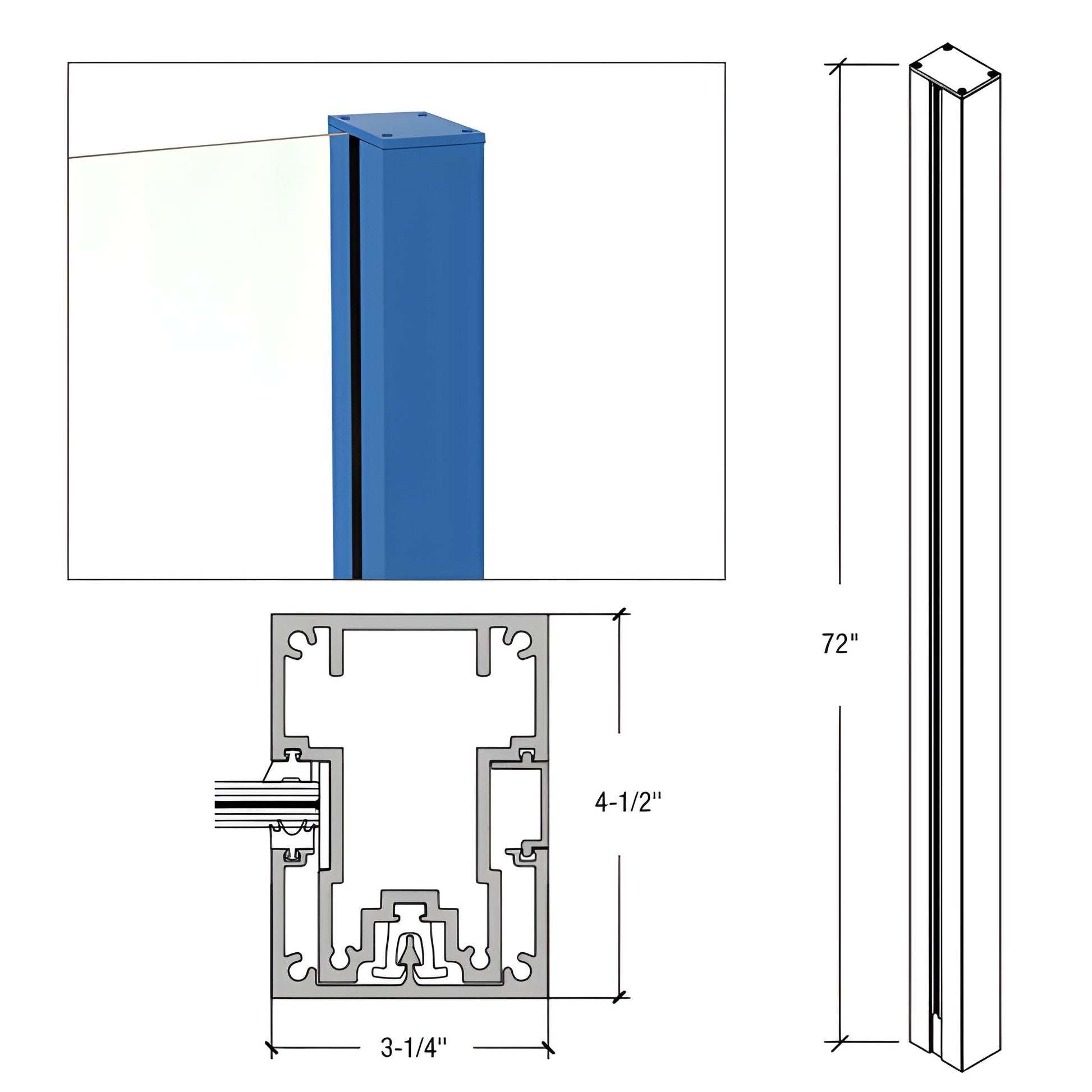

Cielo Post Windscreen System (SKU: C72EKC) features a slim 3-1/4” front trim and 4-1/2” post depth to deliver virtually unobstructed views and optimal structural performance. With no horizontal extrusions required, the system enables expansive post-to-post glass spans. A unique snap-in post cover system conceals fasteners for a streamlined, modern look and expedites installation.

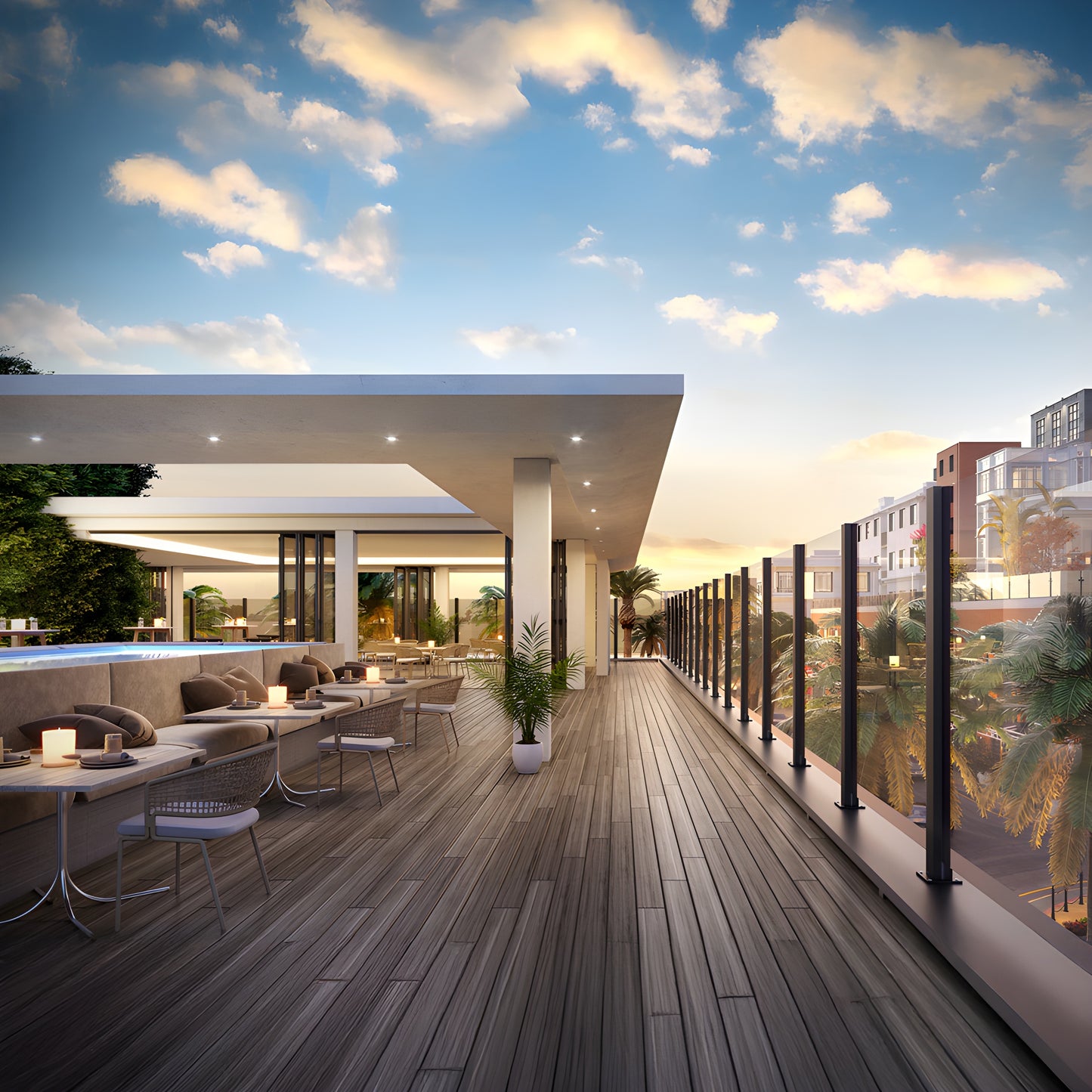

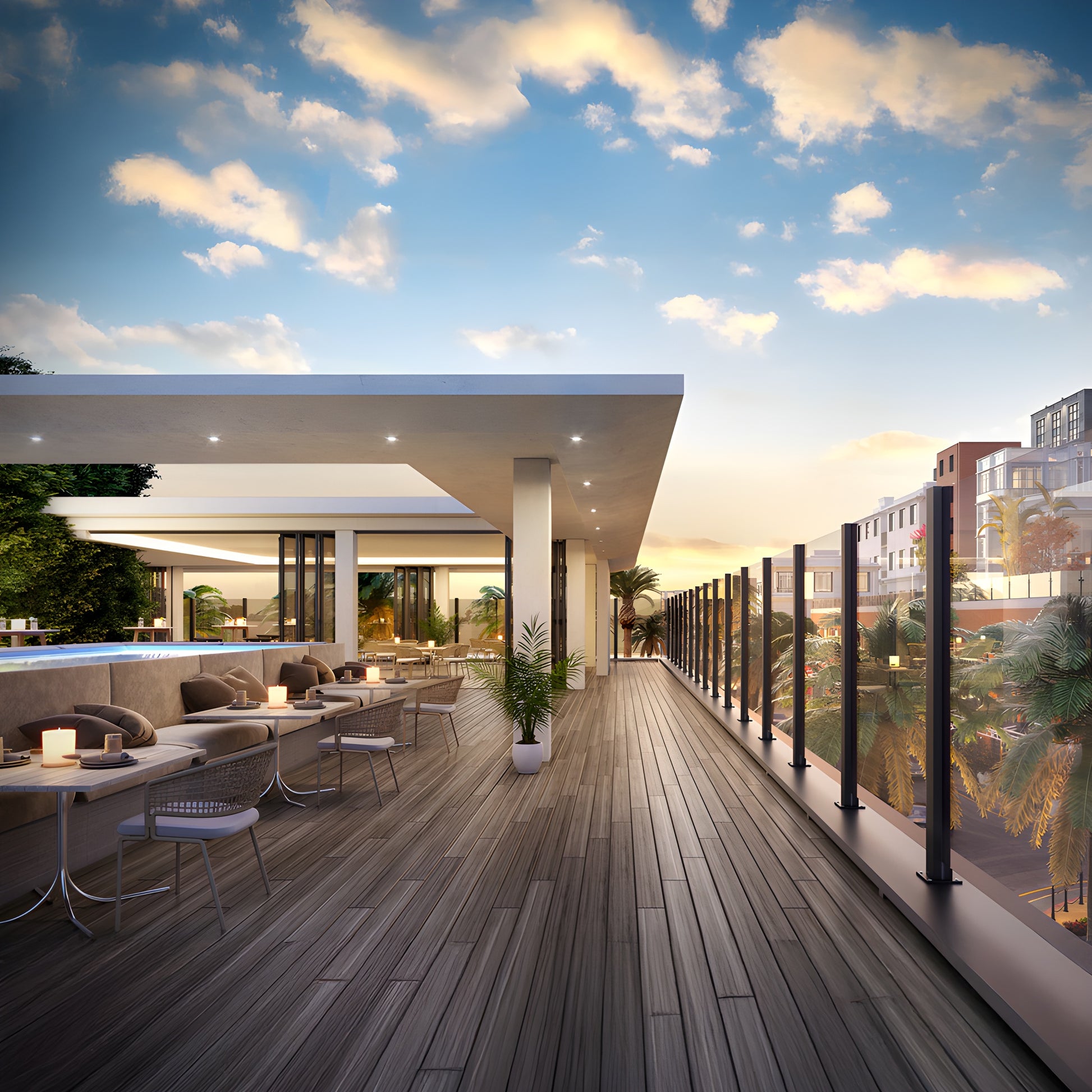

Designed for high-elevation commercial and residential projects, Cielo is ideal for rooftop glass railings, rooftop swimming pools, outdoor dining terraces, lounges, and other high-altitude exterior windscreens where clear sightlines and code-compliant wind resistance are critical.
Contact CRL Customer Service to request specifications, confirm shipping weight, or place an order for SKU: C72EKC.
Specifications
BIM Objects - rvt
