CRL 72-in Matte Bronze Heavy-Duty Glass Windscreen Post
CRL 72-in Matte Bronze Heavy-Duty Glass Windscreen Post
Regular price
$477.70 CAD
Regular price
Sale price
$477.70 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD72BRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Depth
13/16 in. (21 mm)
Finish/Color
Matte Bronze
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as Posts Only or in Kits Containing Post, Top Cap, and Glazing Vinyl
- Seven standard colors plus mill aluminum; custom colors available on request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry glazed with glazing vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass wet glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl for easy installation

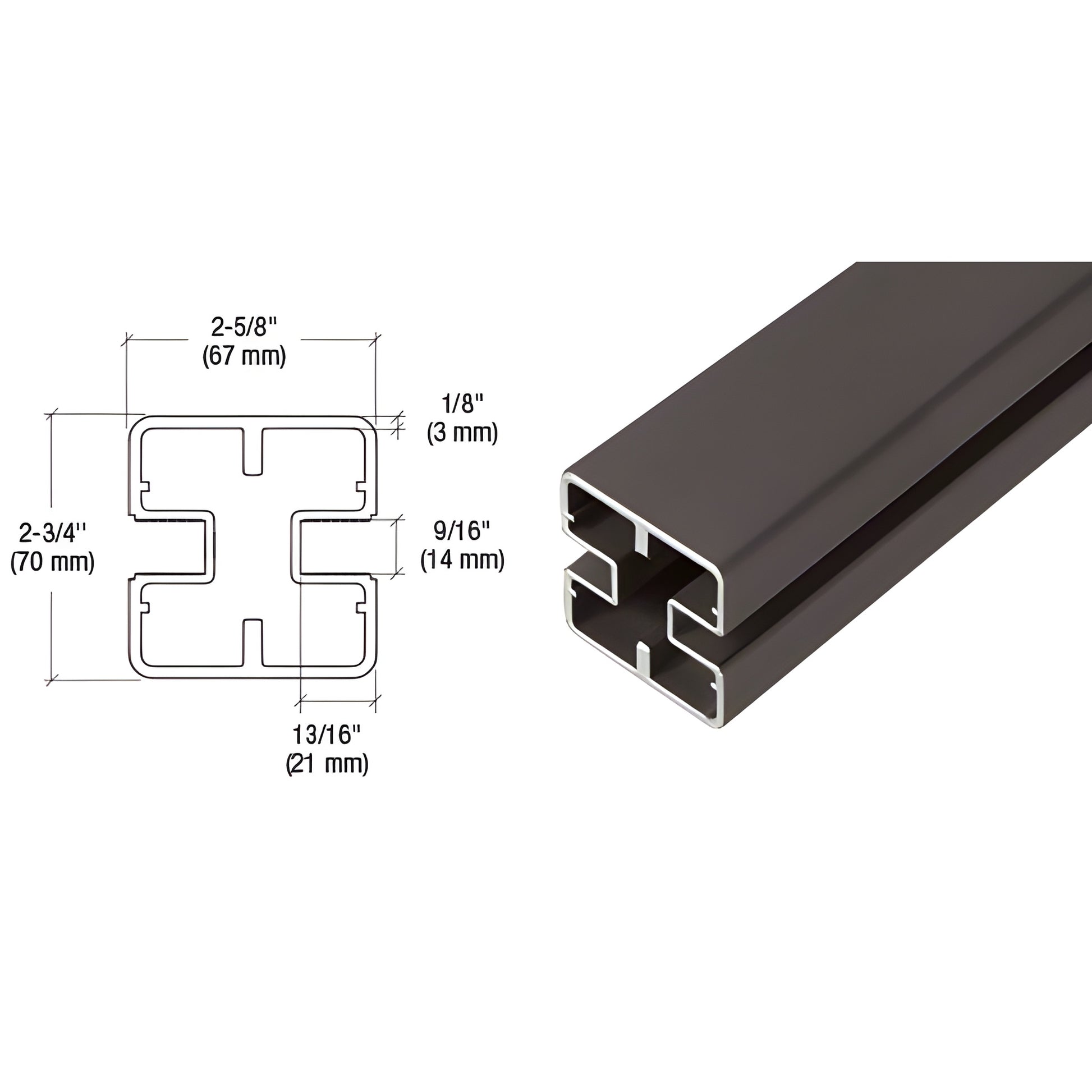

HD72BRZ Heavy-Duty Glass Railing Posts
HD posts (SKU: HD72BRZ) are engineered for heavy-duty glass railing and balustrade applications—use them at barrier ends or to join two panels at 180°. Designed for both dry glazed and wet glazed glass panels, these posts support 1/4"–3/8" (6–10 mm) glass with vinyl and 1/2"–9/16" (12–13.52 mm) glass with structural silicone. Available in seven standard finishes plus mill aluminum; custom colors upon request.
Performance limits: Maximum post spacing: 72" (1829 mm) on center. Maximum panel area: 24 sq ft per panel.
Product Warning:
All ARS/AWS painted-to-order products are non-refundable and non-returnable.
Looking for a quote or custom finish for HD72BRZ? Contact CRL Customer Service to order or request specifications.
Specifications
CAD Drawings - pdf
