CRL 72 in Metallic Silver Heavy-Duty Windscreen Replacement Post
Item# HD72S
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

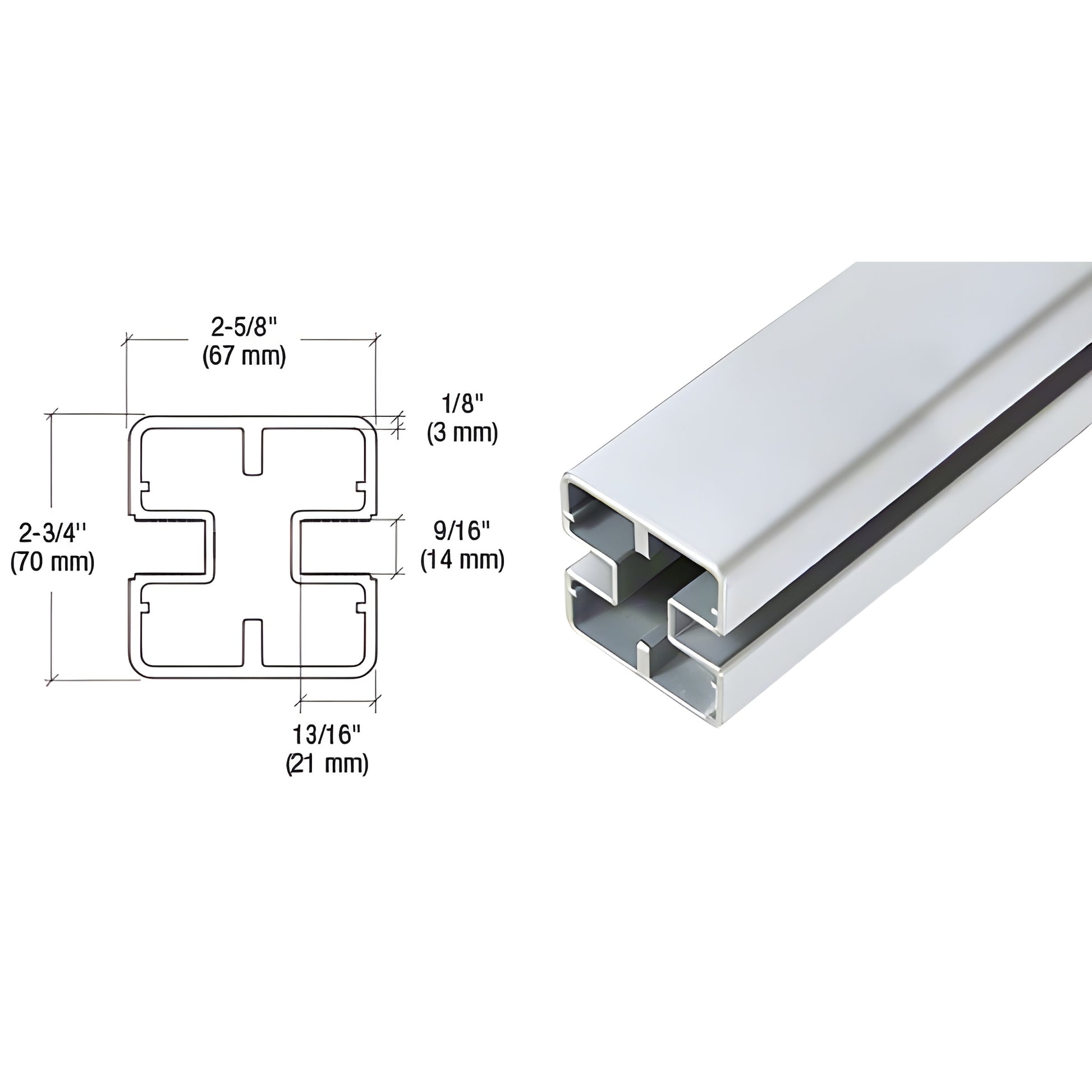

Depth
13/16 in. (21 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
- Available as Posts Only or in Kits Containing Post, Flat Top Cap, and Glazing Vinyl
- Seven standard colors plus mill aluminum; custom colors available on request
- Fits 1/4" to 3/8" (6–10 mm) glass when dry-glazed with vinyl
- Fits 1/2" (12 mm) and 9/16" (13.52 mm) glass when wet-glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl for easy glass railing installation
HD Posts (SKU: HD72S) are engineered for heavy-duty glass railing applications—ideal as end posts or to join two panels at 180°. Designed for commercial and residential glass balustrades, these heavy-duty posts accommodate both dry-glazed and wet-glazed glass panels and support a maximum post spacing of 72" (1829 mm) on center. Maximum panel size should not exceed 24 square feet.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, contact CRL Customer Service before placing your order. Product images are the actual product or a close representation; colors can vary with monitor settings.
Need a custom color or technical assistance for glass railing specs? Contact us to get started.
CAD Drawings - pdf
