CRL 72 in Mill-Finish Heavy-Duty Windscreen Replacement Post
CRL 72 in Mill-Finish Heavy-Duty Windscreen Replacement Post
Regular price
$376.42 CAD
Regular price
Sale price
$376.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD72M
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

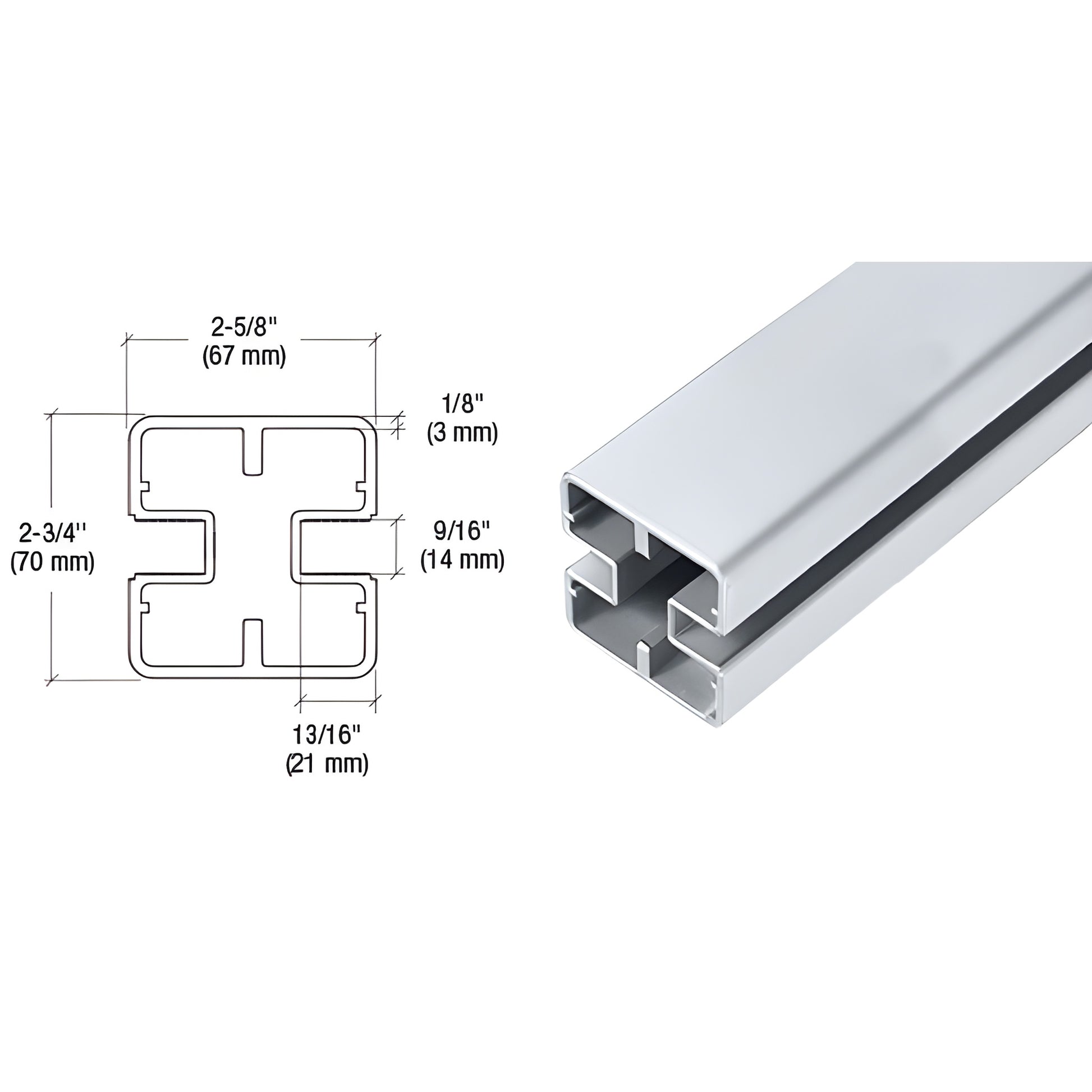

Description
Depth
13/16 in. (21 mm)
Finish/Color
Mill
Glazing Thickness
1/4 in. & 3/8 in. (6 mm & 10 mm)
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as Posts Only or in Kits Containing Post, Top Cap, and Vinyl
- Seven standard colors plus mill aluminum; custom colors available on request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass wet glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl
SKU: HD72M
HD posts (HD72M) are designed for heavy-duty glass railing applications—use as end posts or to join two panels at 180°. They support 1/4"–3/8" glass when dry glazed with vinyl and 1/2"–9/16" glass when wet glazed with structural silicone. Choose from seven standard finishes or mill aluminum; custom paint colors are available. Maximum post spacing: 72" (1829 mm) on center. Maximum panel area should not exceed 24 sq ft.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Order HD72M heavy-duty glass posts or kits today to complete your glass railing project—contact us for custom colors or weight verification.
Specifications
CAD Drawings - pdf
