CRL 72" LED Rail Insert Replacement Handrail Lighting
Item# LEDCR6
Shipping Weight: 3.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
White
Glazing Thickness
1/2 in. (13 mm)
Length
72 in. (1829 mm)
- For use with CRL cap rails when edge lighting glass panels
- Installs with CRL 95C silicone and housing shims

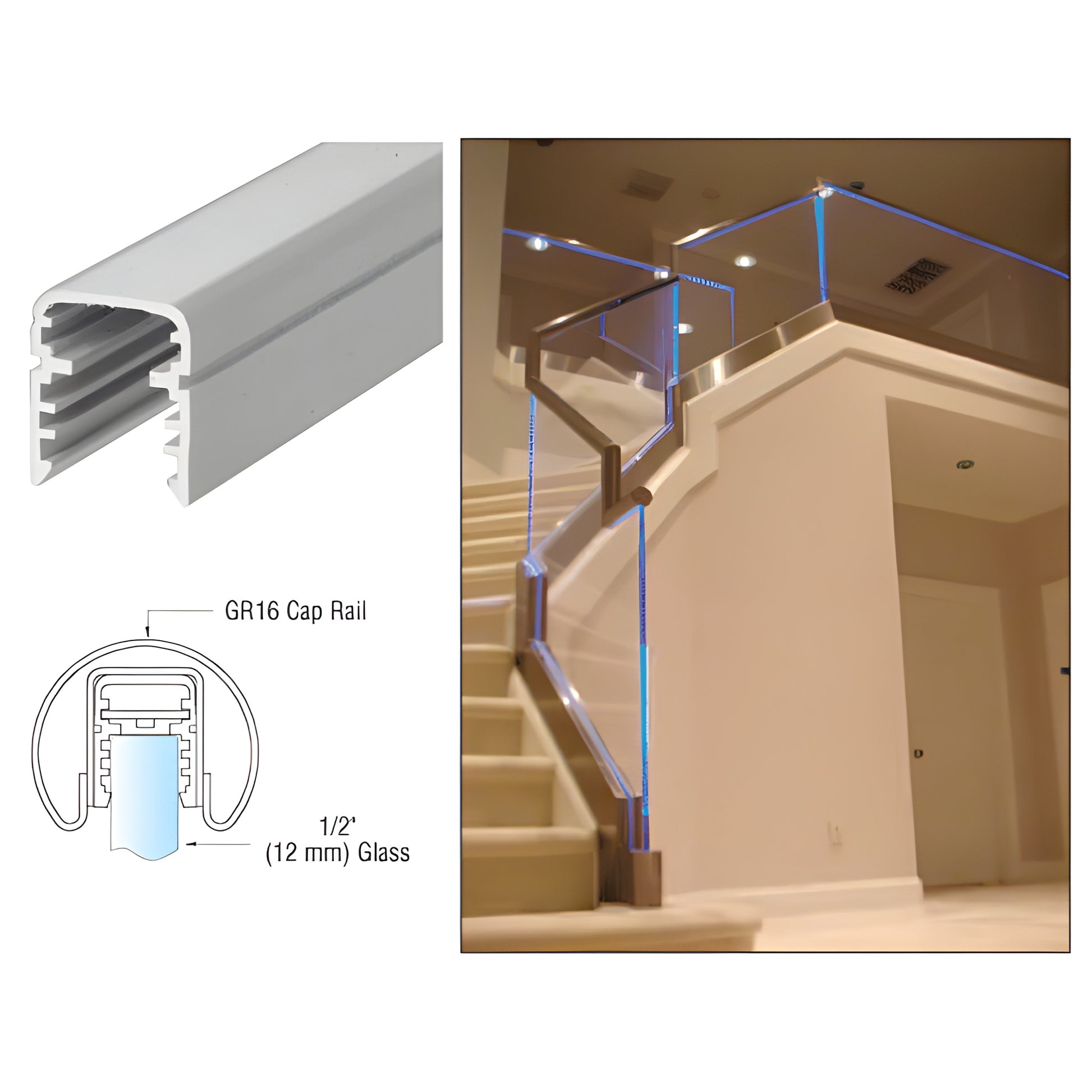

CRL Cap Rail Housing Insert (SKU: LEDCR6) slips over 1/2" (12 mm) glass panels to create a protected securing channel and a dedicated slot for an LED light strip. An insulated wire raceway runs behind the LED strip for clean, concealed wiring. Permanently secure the glass by applying a bead of Cat. No. 95CBL Black Silicone in the pocket on either side of the glass. LED strip lights are sold separately.
Most shipping weights are approximate. If you need an exact weight to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual products or close representations; colors may vary by monitor.
Use LEDCR6 to streamline edge lighting installations with a purpose-built LED light strip housing insert—order now or contact CRL Customer Service for details.
Installation Instructions
