CRL 72" Matte Black Heavy-Duty Windscreen Replacement Post
Item# HD72BL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Depth
13/16 in. (21 mm)
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
- Available as Posts Only or in Kits Containing Post, Top Cap, and Vinyl
- Seven standard colors, plus mill aluminum; custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass wet glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl

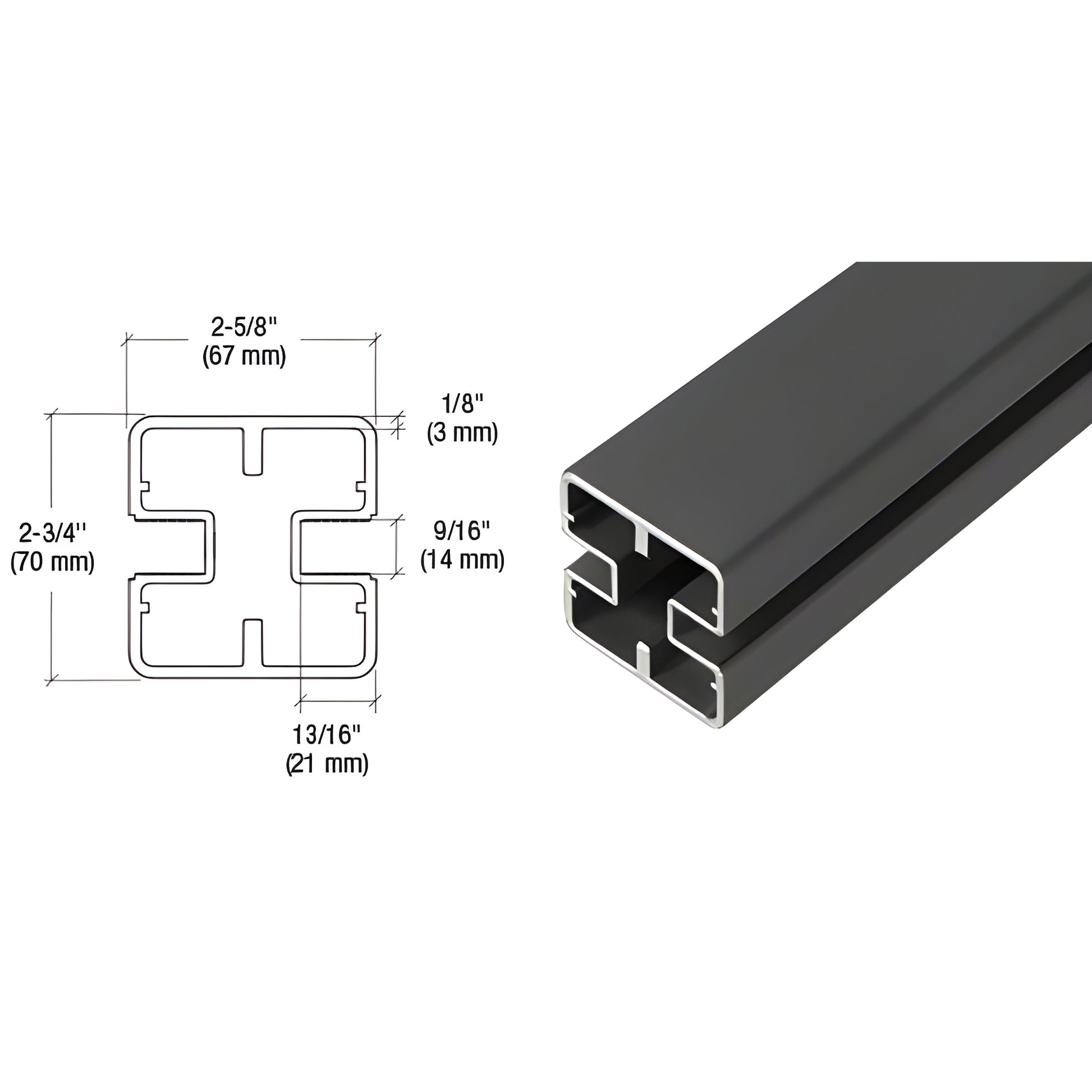

HD posts (SKU: HD72BL) are designed for heavy-duty glass railing applications — ideal as end posts or for joining two panels at 180°. These heavy-duty glass railing posts accommodate 1/4"–3/8" panels when dry glazed and 1/2"–9/16" panels when wet glazed with structural silicone. Available in seven standard colors plus mill aluminum, with custom color matching on request. Maximum post spacing: 72" (1829 mm) on center. Maximum panel size: 24 sq ft.
Product Warning:
All ARS/AWS painted-to-order products are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary with monitor settings.
Need help specifying HD72BL heavy-duty glass railing posts or ordering a kit? Contact our sales team to get a quote and lead time.
CAD Drawings - pdf
