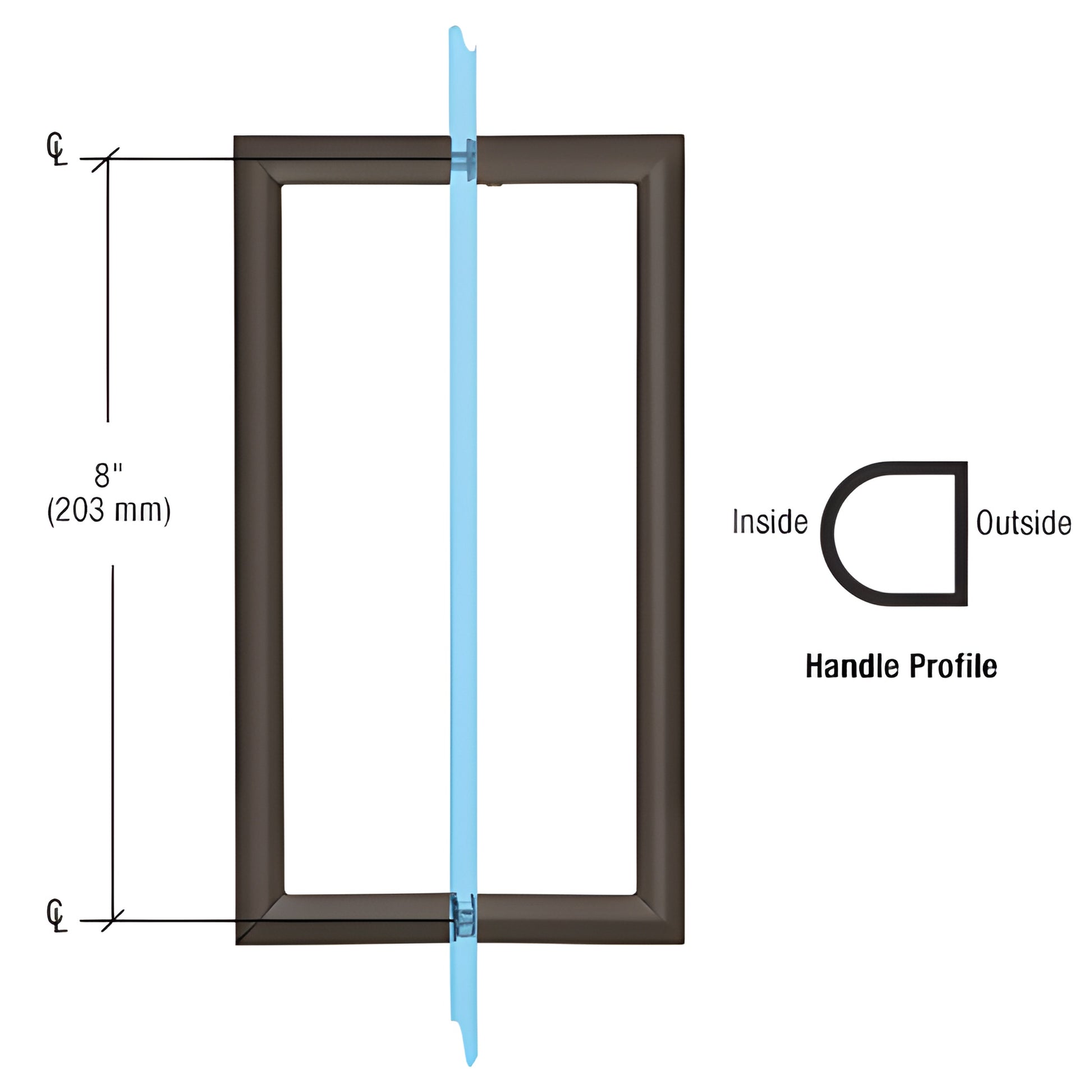

• RM8X80RB oil-rubbed bronze back-to-back rectangular shower pull handle, 8" c-c, 3/4" tubular, for 6-12mm glass.
1 1

CRL

CRL RM Series 8 in Oil-Rubbed Bronze Back-to-Back Door Pull

CRL RM Series 8 in Oil-Rubbed Bronze Back-to-Back Door Pull

$123.16 CAD
$123.16 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# RM8X80RB
Shipping Weight: 1.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Construction
Tubular
Design Style
Beveled
Diameter
3/4 in. (19 mm)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/4 in. To 1/2 in. (6 mm To 12 mm)
Material
Brass
Mounting Center To Center
8 in. (203 mm)
Mounting Type
Glass Mount - Back To Back
Opening Style
Slide, Fold, Swing(side), Pivot(floor)
Projection From Surface
2-1/2 in. (64 mm)
Series
RM
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Tube Profile
Half Round
Tube Size
3/4

Overview

  • Flat outside surface with round tubing inside for a comfortable grip
  • Compatible with CRL Geneva, Vienna, Concord, Cardiff and other square-cornered hinges
  • Stocked in several popular finishes
  • Fits 1/4" to 1/2" (6 to 12 mm) monolithic tempered glass

The CRL RM Series Flat Outside Surface / Round Tubing Inside Back-to-Back Pull Handles (SKU: RM8X80RB) combine the square-cornered look of the SQ Series with the rounded internal grip of the MT Series. Ideal as a back-to-back pull handle for tempered glass shower doors and wardrobe doors, the RM Series pairs visually with CRL hinge families (Geneva, Vienna, Concord, Cardiff) while providing a comfortable, ergonomic hold.

Our selection includes over a dozen distinct pull-handle models in multiple finishes to match shower enclosures and interior glazing. Each handle is constructed from high-quality materials for long-lasting performance; single-sided and back-to-back options are easy to install. Custom designs and finishes are available for unique projects.

SPECIFICATIONS:
Material: 3/4" (19 mm) brass tubing; 1-1/4" (32 mm) metal washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to ordering, please contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor and video settings.



Order SKU RM8X80RB today to match square-cornered hinges with a comfortable, durable back-to-back pull handle.

Specifications

CAD Drawings - pdf
RM Series Back-to-Back Detailed CAD Drawings.pdf
