CRL 83-1/4 in Narrow Commercial Door Astragal with Weatherstrip
CRL 83-1/4 in Narrow Commercial Door Astragal with Weatherstrip
Regular price
$118.32 CAD
Regular price
Sale price
$118.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# R011G83L
Shipping Weight: 3.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Mill
Height
1/2 in. (12.7 mm)
Includes
6 Spring Clips
Length
83-1/4 in. (2114.6 mm)
Material
Extruded Aluminum
Width
1/2 in. (12.7 mm)
Overview
- Extruded Aluminum Channel Weatherstrip
- Retrofits Kawneer® Astragals

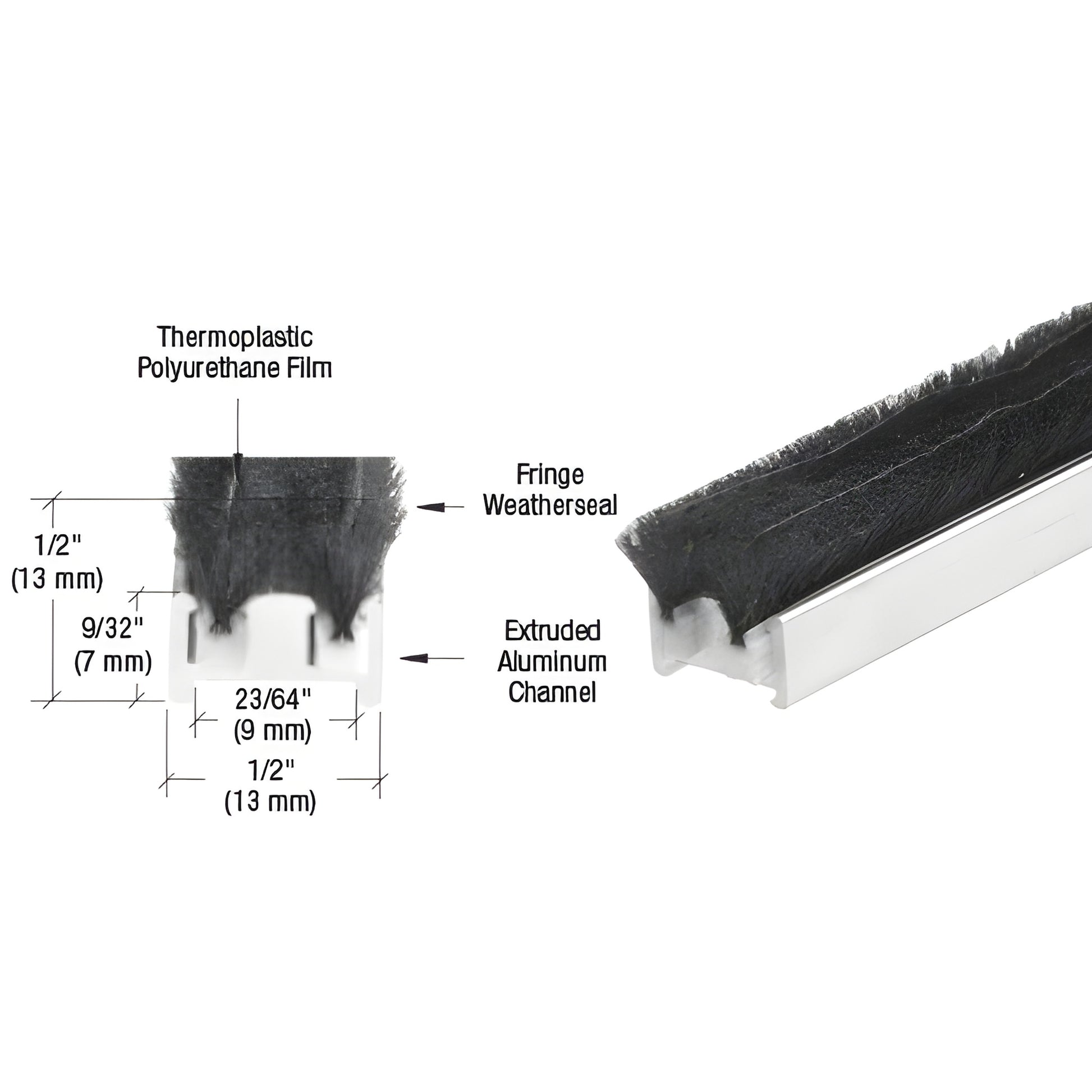

Heavy commercial traffic requires regular replacement of vertical door weatherseals. The CRL Commercial Door Astragal (SKU: R011G83L) is a mill-finish, extruded aluminum channel weatherstrip designed for fast installation and field adjustment on existing commercial doors. This retrofit astragal fits Kawneer®-style astragals with a center channel width of 1/2" (12.7 mm) or larger and installs with a screwdriver using the included pre-punched spring tensioner for quick alignment with the mating surface. An exclusive impermeable film barrier effectively stops air infiltration, improving door sealing and energy efficiency. The astragal can be cut to length to accommodate unusual door heights.
Included: Six spring clips per astragal. For additional clips request Cat. No. R011GCL1P.
Product Warning / Trademark:
Kawneer® is a registered trademark of Alcoa Inc., and its subsidiaries and affiliates.
Applications & benefits: Durable extruded aluminum construction for heavy commercial door use, retrofit compatibility with Kawneer® astragals, easy screwdriver installation, adjustable spring tensioner, and an impermeable film barrier to reduce air infiltration — ideal for commercial door weatherseal replacement and retrofit projects.
Order the CRL Commercial Door Astragal (R011G83L) for a fast, reliable commercial door weatherstrip retrofit.
