CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass
CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass
Regular price
$1,100.07 CAD
Regular price
Sale price
$1,100.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8B10D
Shipping Weight: 60.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 60.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

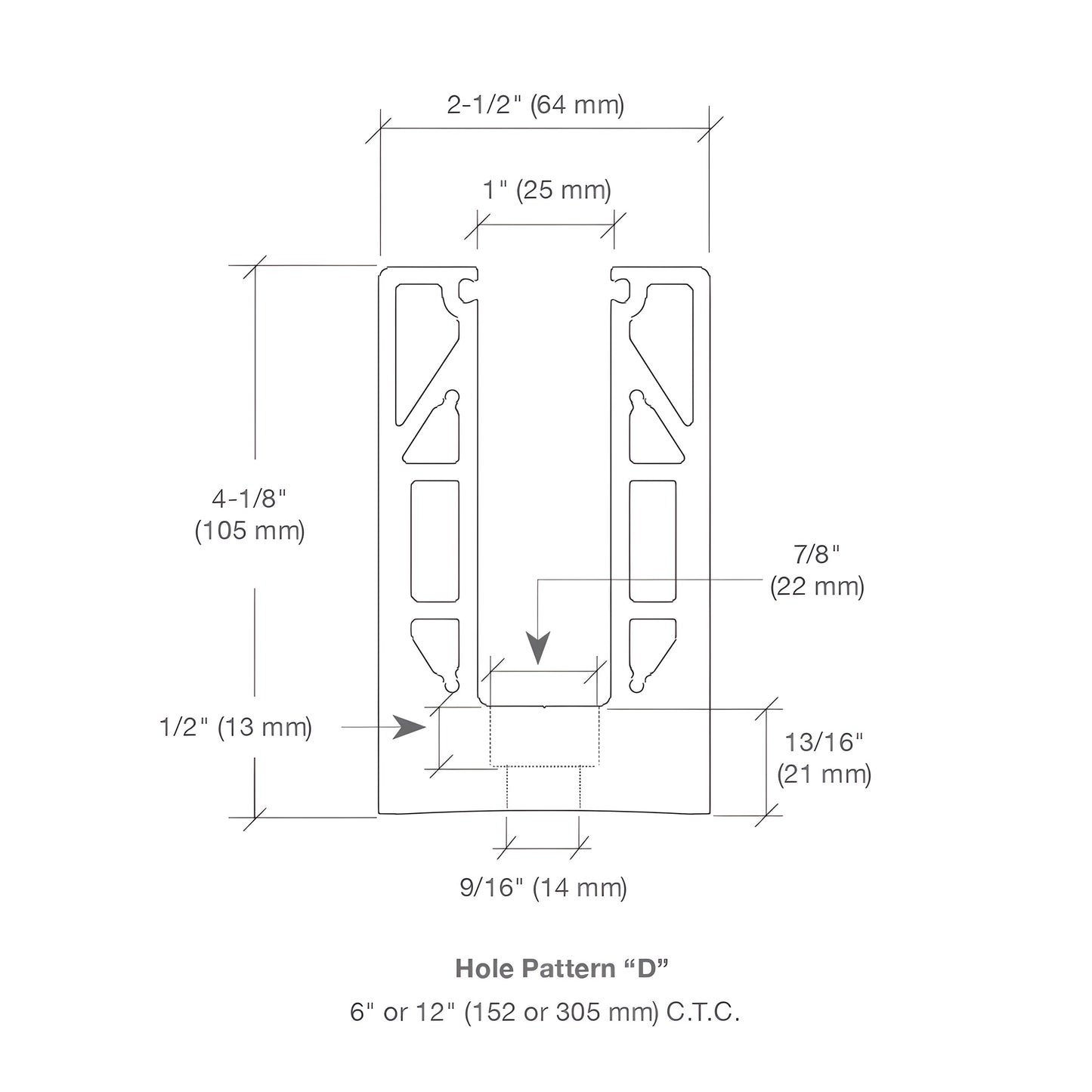

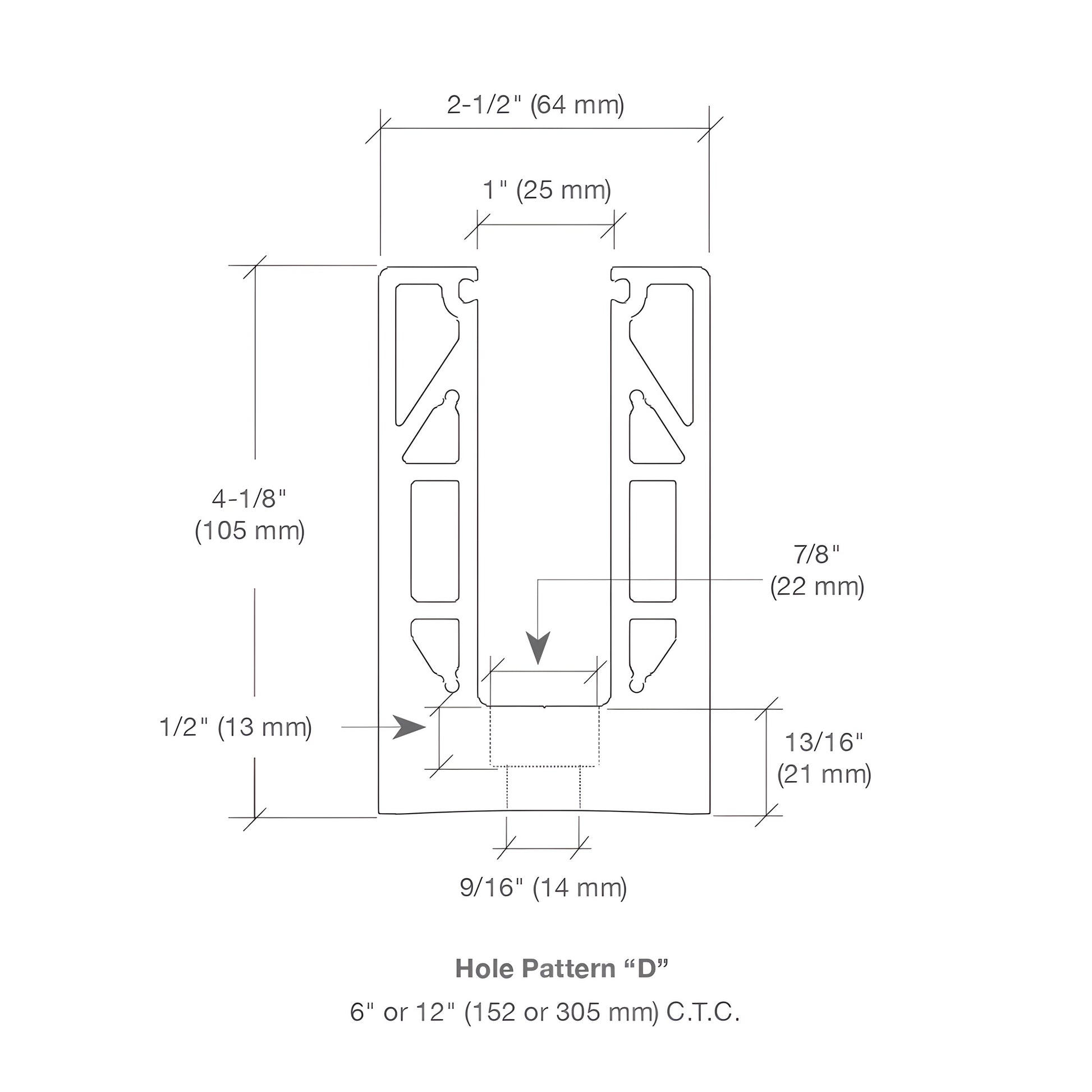

| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/2 in. (13 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Profile | Drilled |
| Width 2-1/2 in. | (64 mm) |
Overview

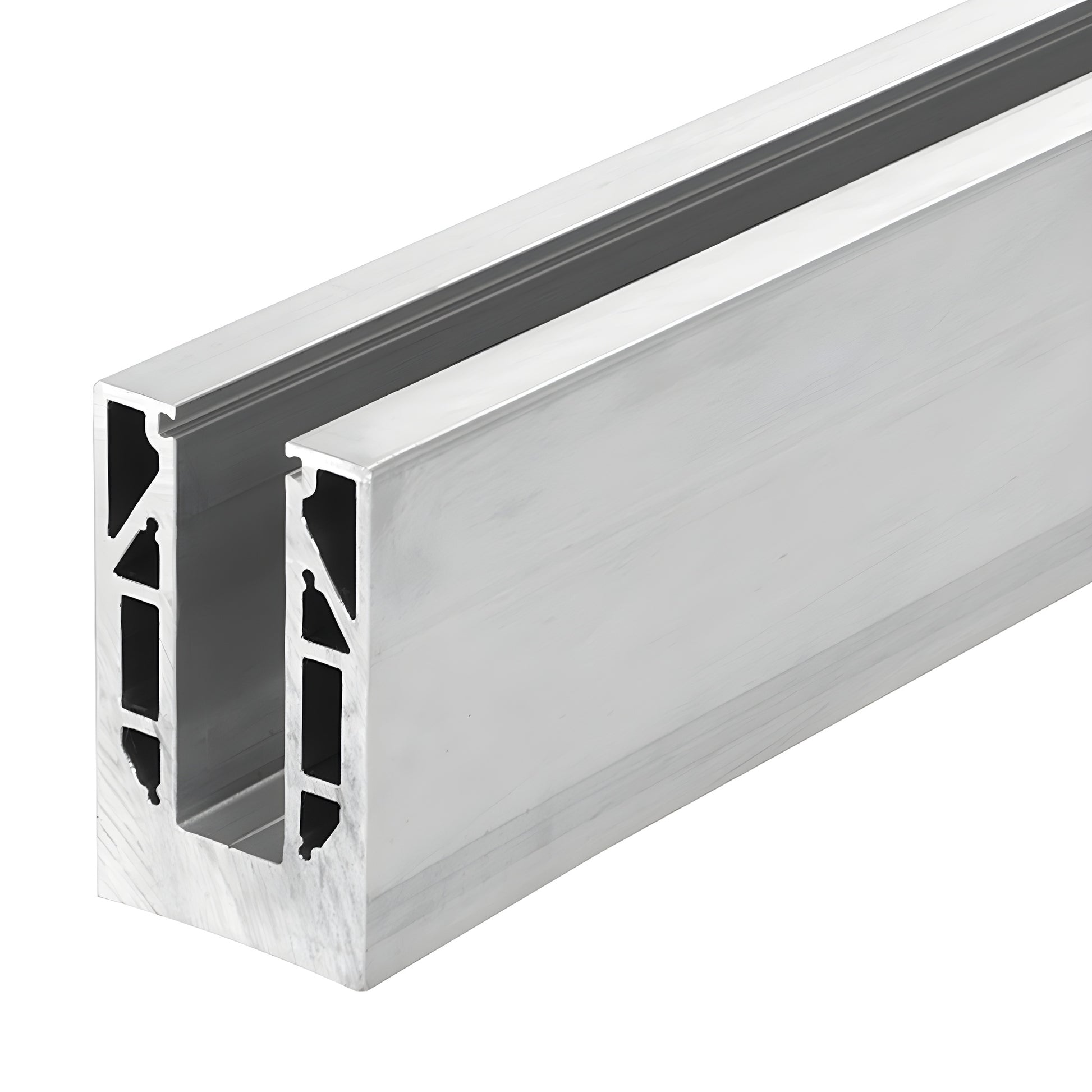

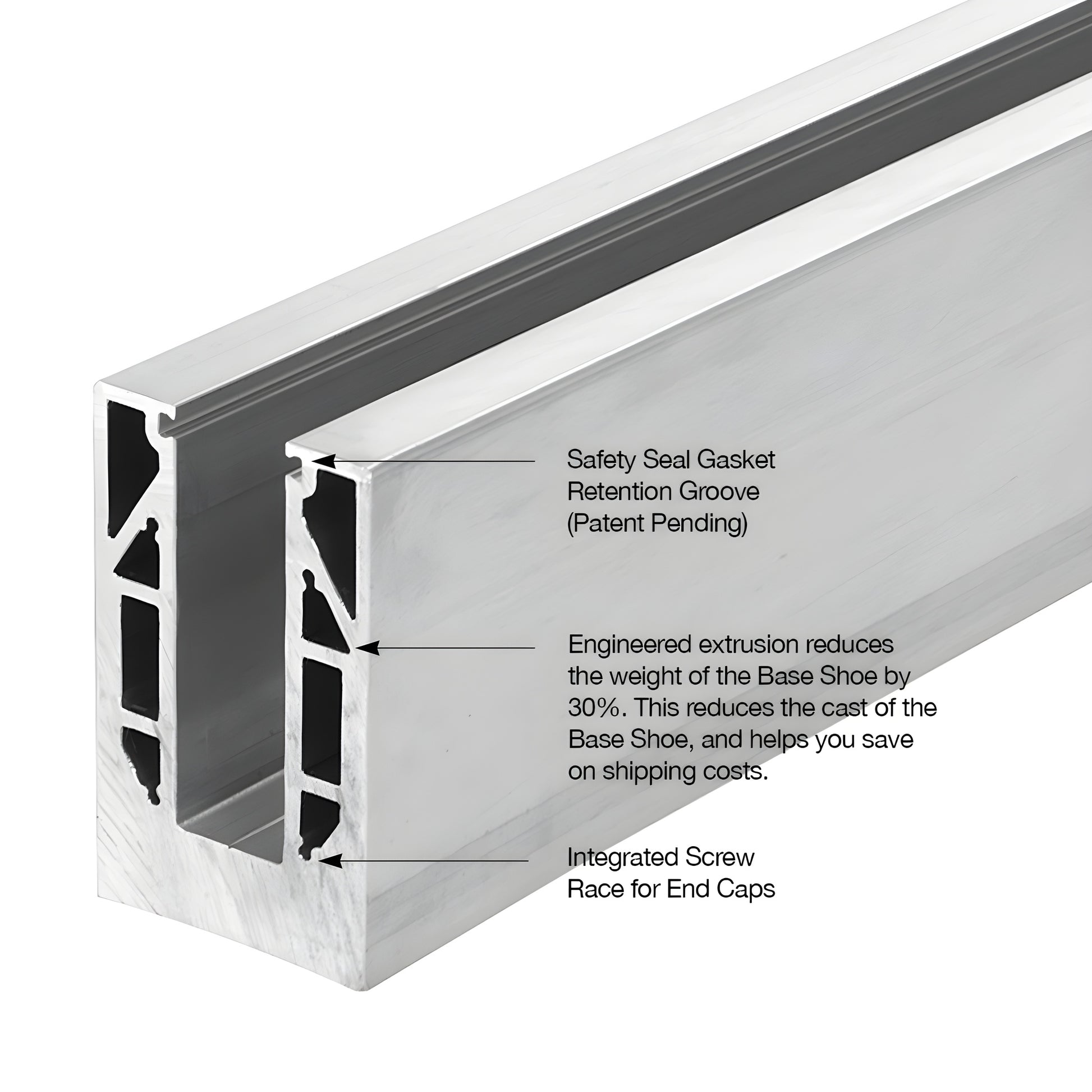

The CRL 8B Series Square Base Shoe is 30% lighter than the traditional B5S Series, making it a cost-effective and eco-friendly option for glass railing and windscreen applications.
Engineered for use with 1/2" (12 mm) monolithic tempered glass, this base shoe is available in 10' and 20' stock lengths, both drilled and undrilled.
Easily cut to size with a chop saw, it meets NBC load requirements when installed according to ICC-3269.
Note that direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe for best results.
Engineered for use with 1/2" (12 mm) monolithic tempered glass, this base shoe is available in 10' and 20' stock lengths, both drilled and undrilled.
Easily cut to size with a chop saw, it meets NBC load requirements when installed according to ICC-3269.
Note that direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe for best results.
Specifications
Installation Instructions
Engineering & Test Reports
