CRL 8B Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass

CRL 8B Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass

$2,382.57 CAD
$2,382.57 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 8B20D6
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

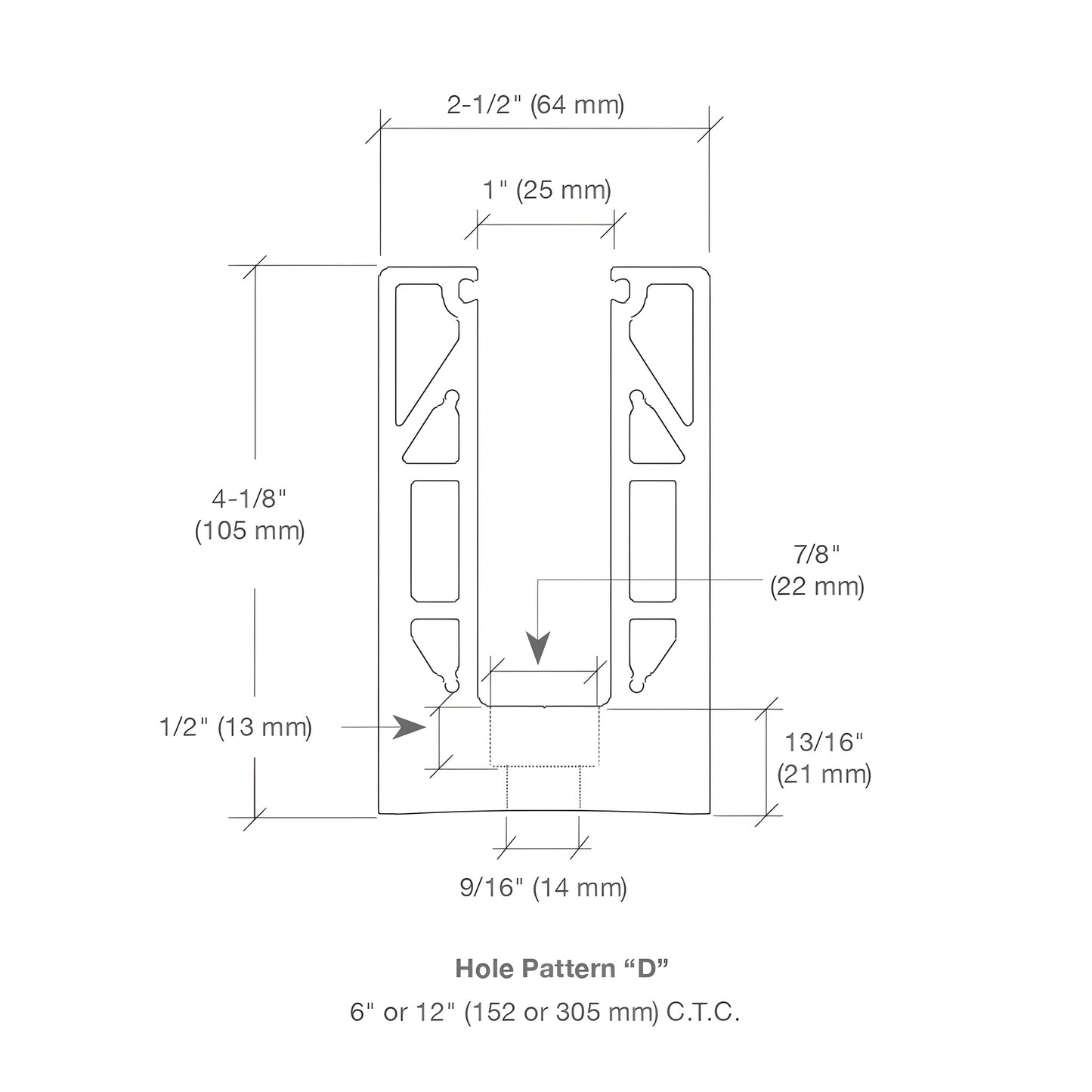

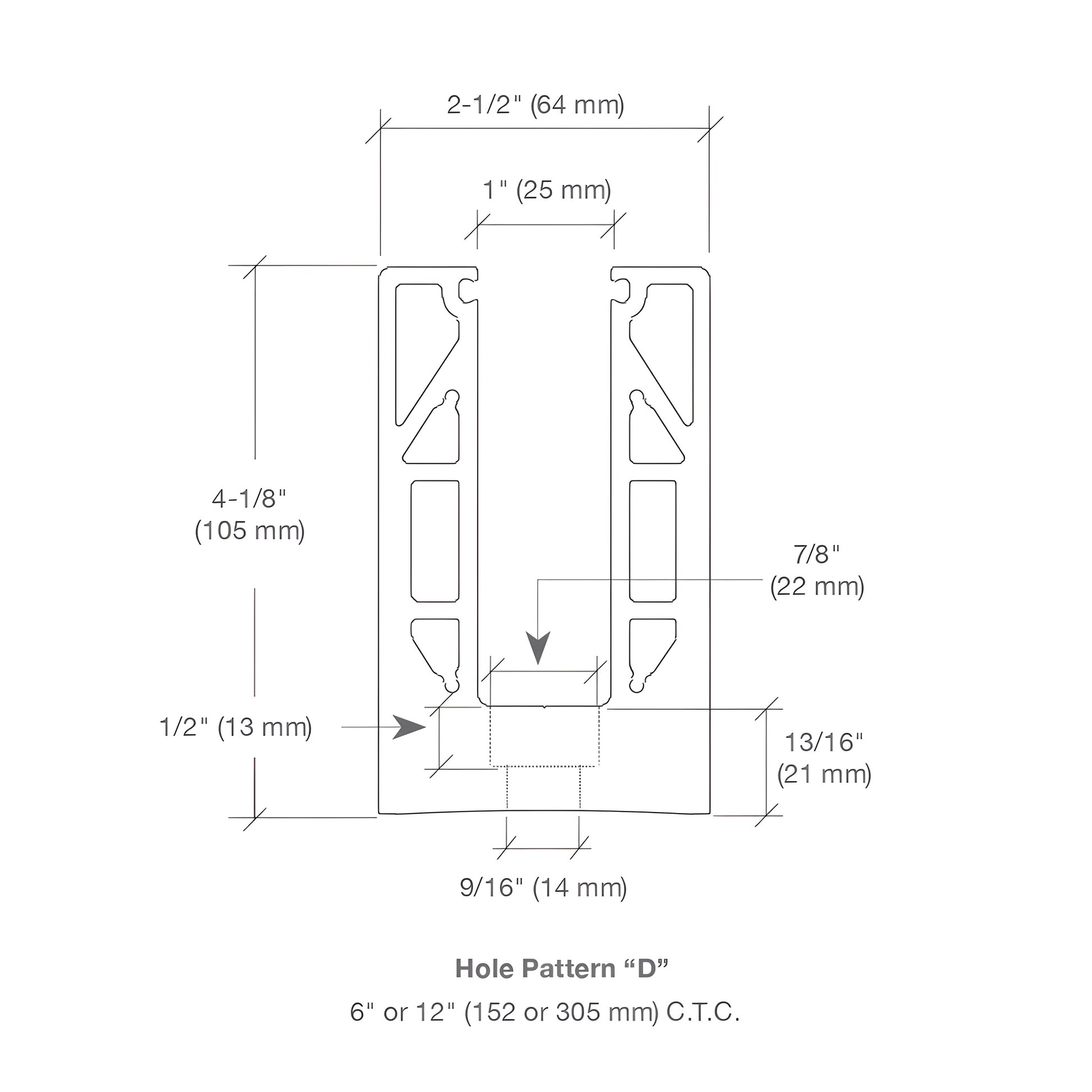

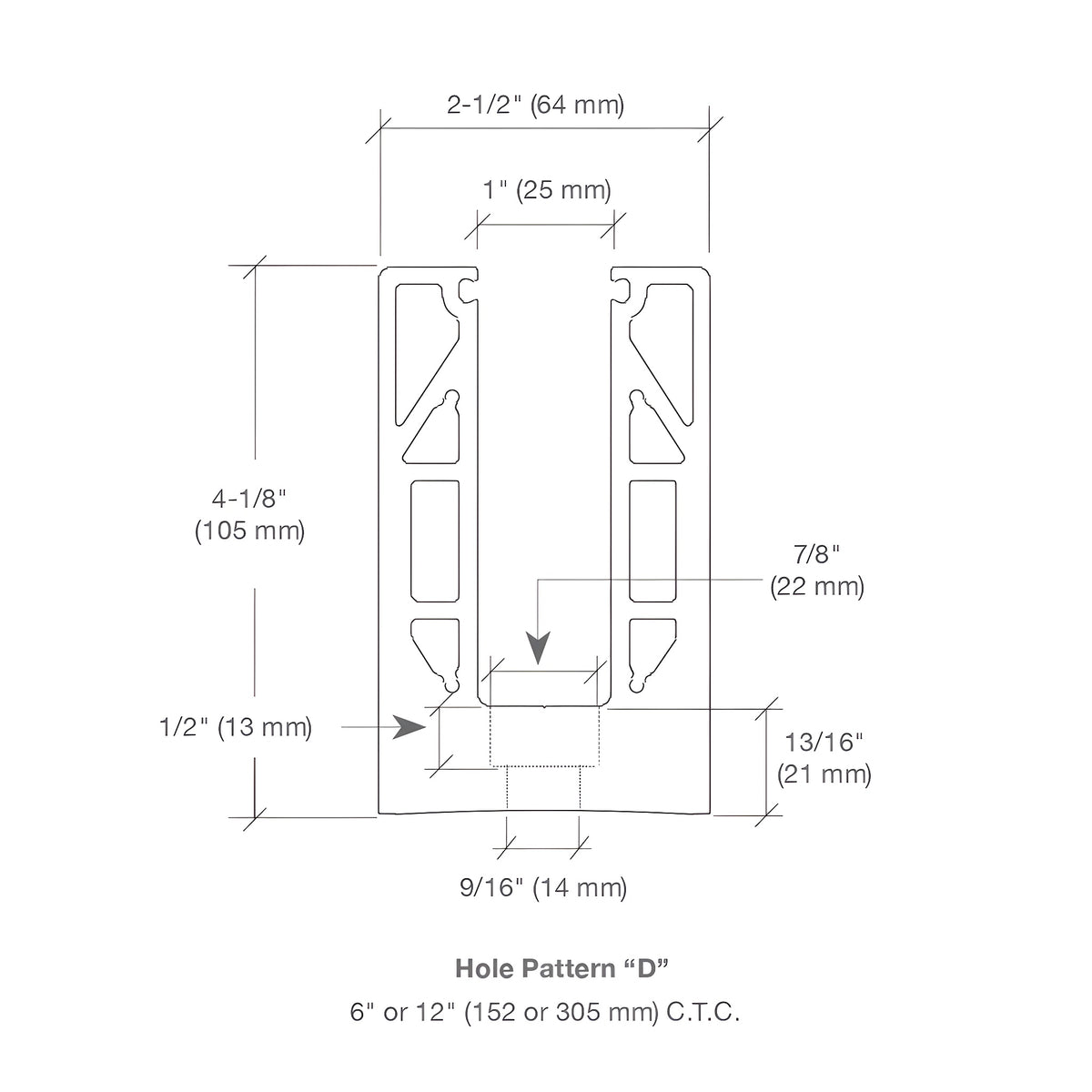

Drilling Center To Center 6 in.(152 mm)
Finish/ColorMill
Glazing Thickness1/2 in. (13 mm)
GlazingType Monolithic
Height 4-1/8 in.(105 mm)
Length 240 in.(6096 mm)
MaterialAluminum
Width 2-1/2 in.(64 mm)

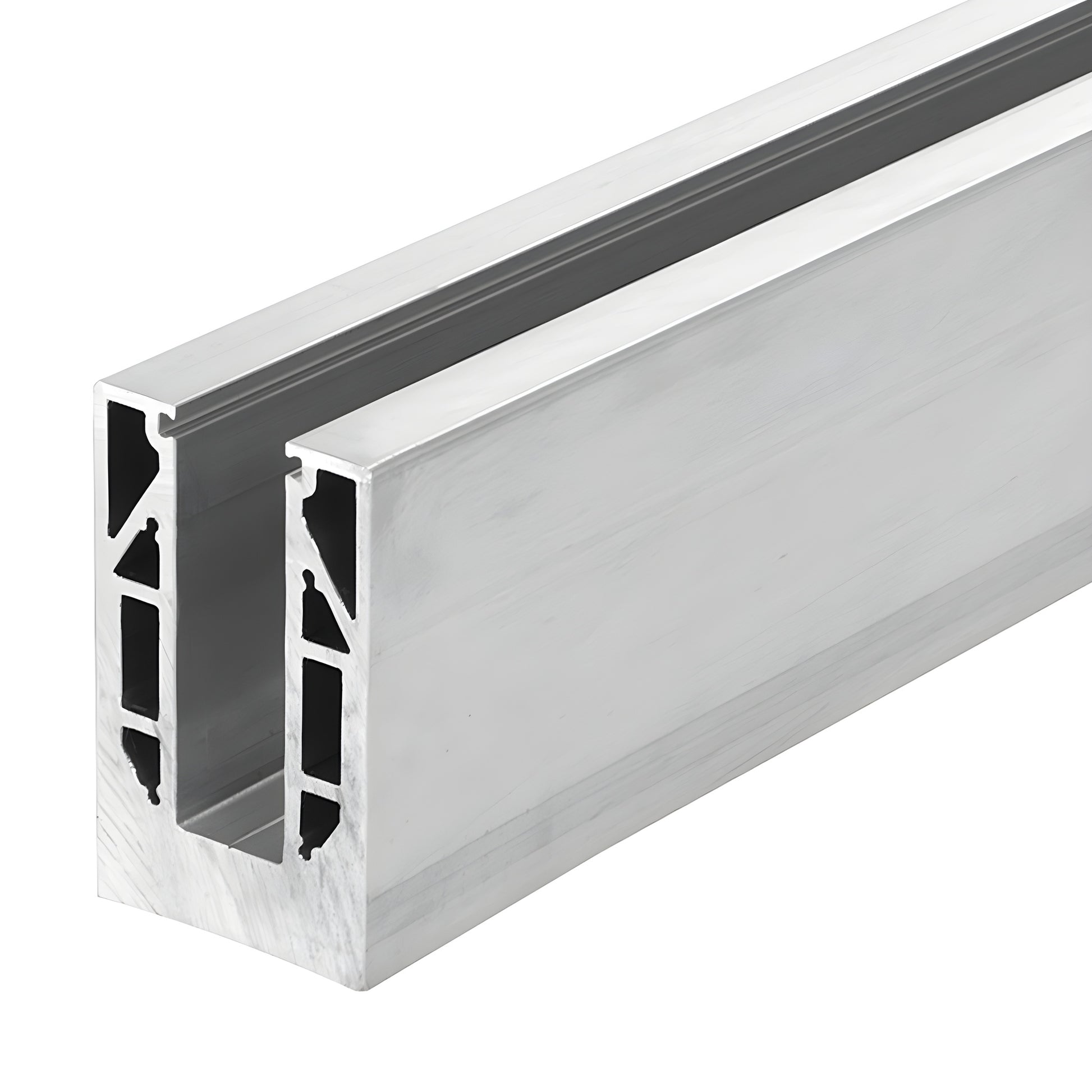

Overview

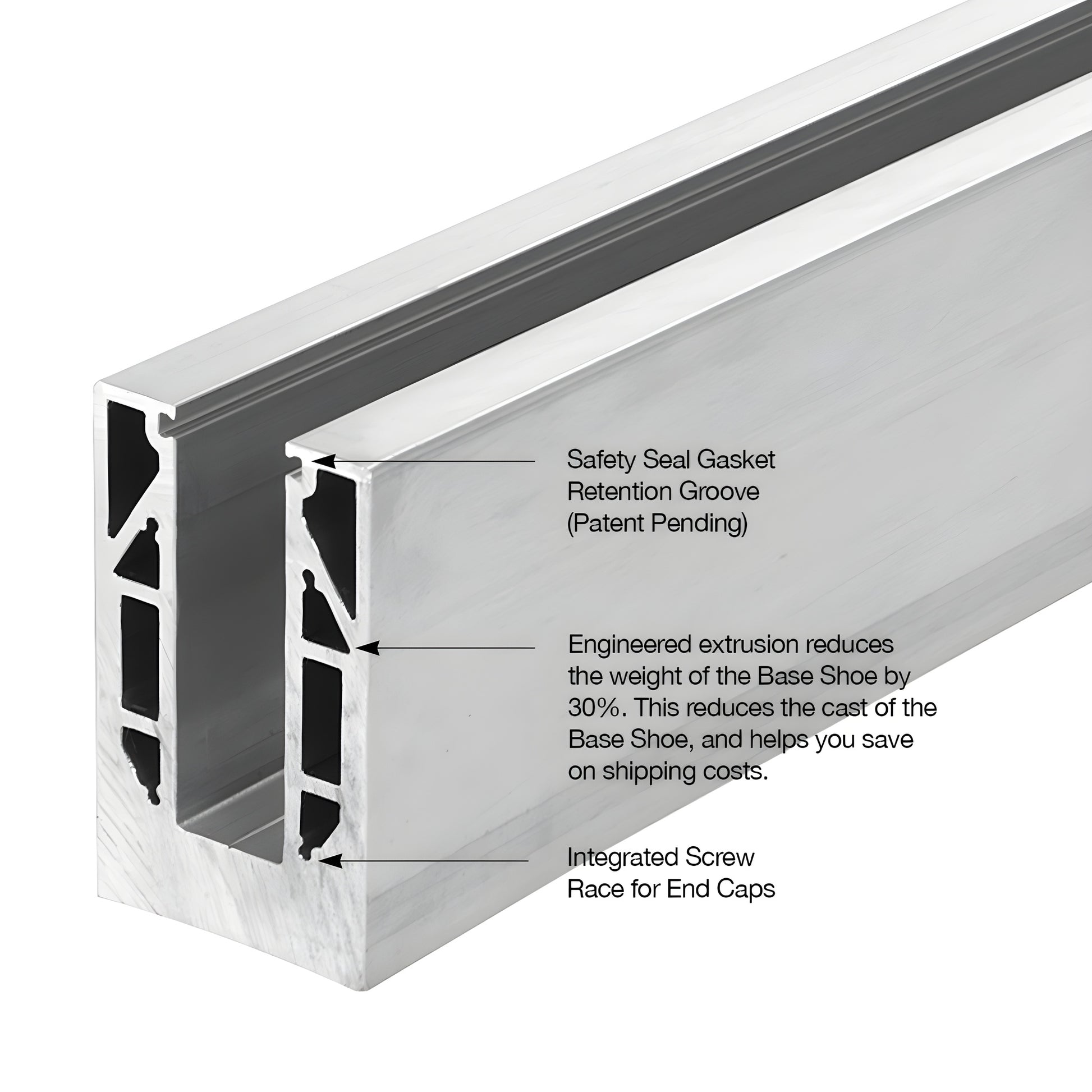

The CRL 8B Series Square Base Shoe is a standout product, 30% lighter than the traditional B5S Series, making it more cost-effective and environmentally friendly while also reducing shipping expenses.
Ideal for use with 1/2" monolithic tempered glass, this base shoe comes in 10' and 20' stock lengths, available both drilled and undrilled to suit your needs.
Designed to seamlessly integrate with CRL's patented TAPER-LOC® System, it can be easily customized to fit your project using a chop saw with a minimum 10" saw blade for aluminum.
Please note, direct powder coating of this extrusion is not recommended; instead, apply powder-coated cladding over the base shoe for optimal results.
