CRL 90Β° Hold-Open Adjustable Spring Overhead Concealed Door Closer
CRL 90Β° Hold-Open Adjustable Spring Overhead Concealed Door Closer
Regular price
$276.91 CAD
Regular price
Sale price
$276.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8760A
Shipping Weight: 11.87 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.87 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL6760, CRL8010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8960A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36"β42" to meet A.D.A. opening force requirements
- Adjustable end-load bottom pivot set for floor or threshold mounting
- For doors with 1" (25 mm) top rail depth
- 5 Year Limited Warranty
- UL Listed

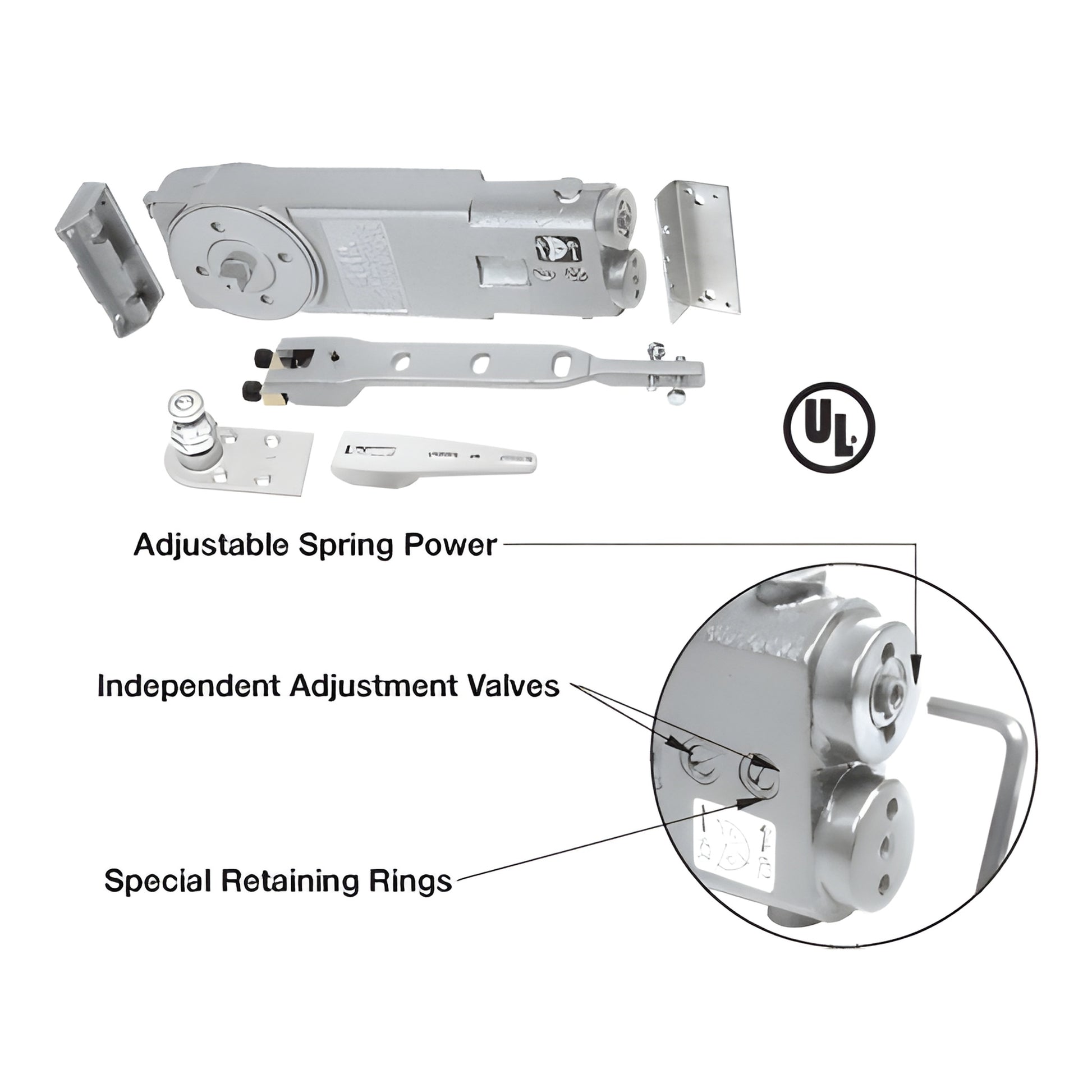

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8760A) is an ADA-compliant, overhead concealed door closer engineered for 36β42" openings. Offered as a body-only retrofit with mounting clips or as complete packages including the closer body, mounting clips, Type "S" side-load arm or Type "A" end-load arm, and a "DP" adjustable dual-purpose or "GE" pivot set. The unit fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is available in 90Β° and 105Β° hold-open or no hold-open models.
Adjustable Spring Power
Adjustable spring tension from a minimum of 8-1/2 lbs. opening force to a medium spring size to accommodate site-specific conditionsβideal when you need an ADA opening force adjustable concealed door closer that balances code compliance with reliable door control.
Independent Adjustment Valves
Non-critical, dual-action valves independently control closing speed and latching speed for precise closing performance.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being fully removed from the closer body, reducing service issues during maintenance.
Installation & Options
Available to retrofit existing non-adjustable installations or as complete hardware packages. Units with different spring sizes or accessory options are offered to match door weight and site needs.
Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces may not provide adequate spring power to control and close the door under all site conditions or with larger/heavier doors. Verify suitability for your door and site before final selection.
