CRL 90Β° Hold-Open Adjustable Spring Overhead Concealed Door Closer GE
CRL 90Β° Hold-Open Adjustable Spring Overhead Concealed Door Closer GE
Regular price
$258.46 CAD
Regular price
Sale price
$258.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8760GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL6760, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8960GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
- Adjustable side-load bottom pivot set for threshold mounting
- 5 Year Limited Warranty
- UL Listed
The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8760GE) is an ADA-compliant, overhead concealed door closer engineered for retrofit or new installations. Offered as a body-only unit with mounting clips to replace non-adjustable closers, or as a complete package that includes the closer body, mounting clips, Type "S" side-load arm or Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set or "GE" pivot set. The closer features independent dual-action valves for separate closing and latching speed control and is available in both 90Β° and 105Β° hold-open or no-hold-open models. Bodies fit standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes and hardware options are available to match varying door weights and site conditions.

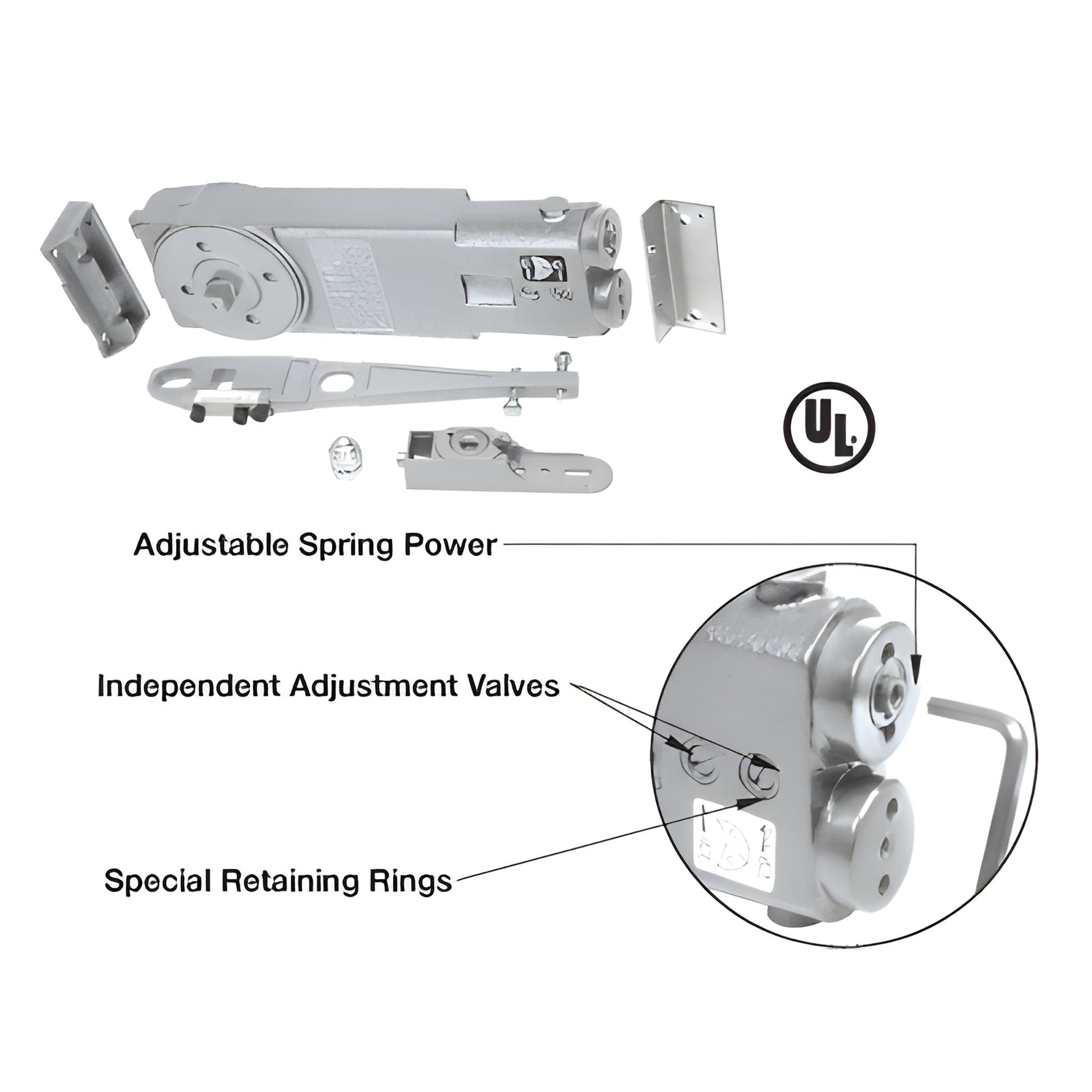

Adjustable Spring Power
Allows spring tension adjustment from a minimum 8-1/2 lbs. opening force up to medium spring sizes to meet site-specific ADA opening force and closing control requirements.
Independent Adjustment Valves
Non-critical valve controls adjust closing speed and latching speed independently for fine-tuned door operation.
Special Retaining Rings
Prevent adjustment valve screws from being backed completely out of the closer body, improving serviceability and safety.
NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum door swing.
Product Warning:
Closers set to comply with ADA-specified opening forces may not provide sufficient spring power to control and close some doors depending on door size and site conditions. Verify suitability for your installation.
Order or request a spec sheet for the CRL8760GE Adjustable Spring Power Overhead Concealed Door Closer today.
