CRL 90Β° Hold-Open Overhead Concealed Door Closer Side-Load ADA GE
CRL 90Β° Hold-Open Overhead Concealed Door Closer Side-Load ADA GE
Regular price
$198.80 CAD
Regular price
Sale price
$198.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8960GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL6960, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
Package Type
Side load ADA GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8760GE
Spindle
1/2
Spring Size
8.5
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (12.7 mm) top rail depth
- Adjustable side-load bottom pivot set for threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

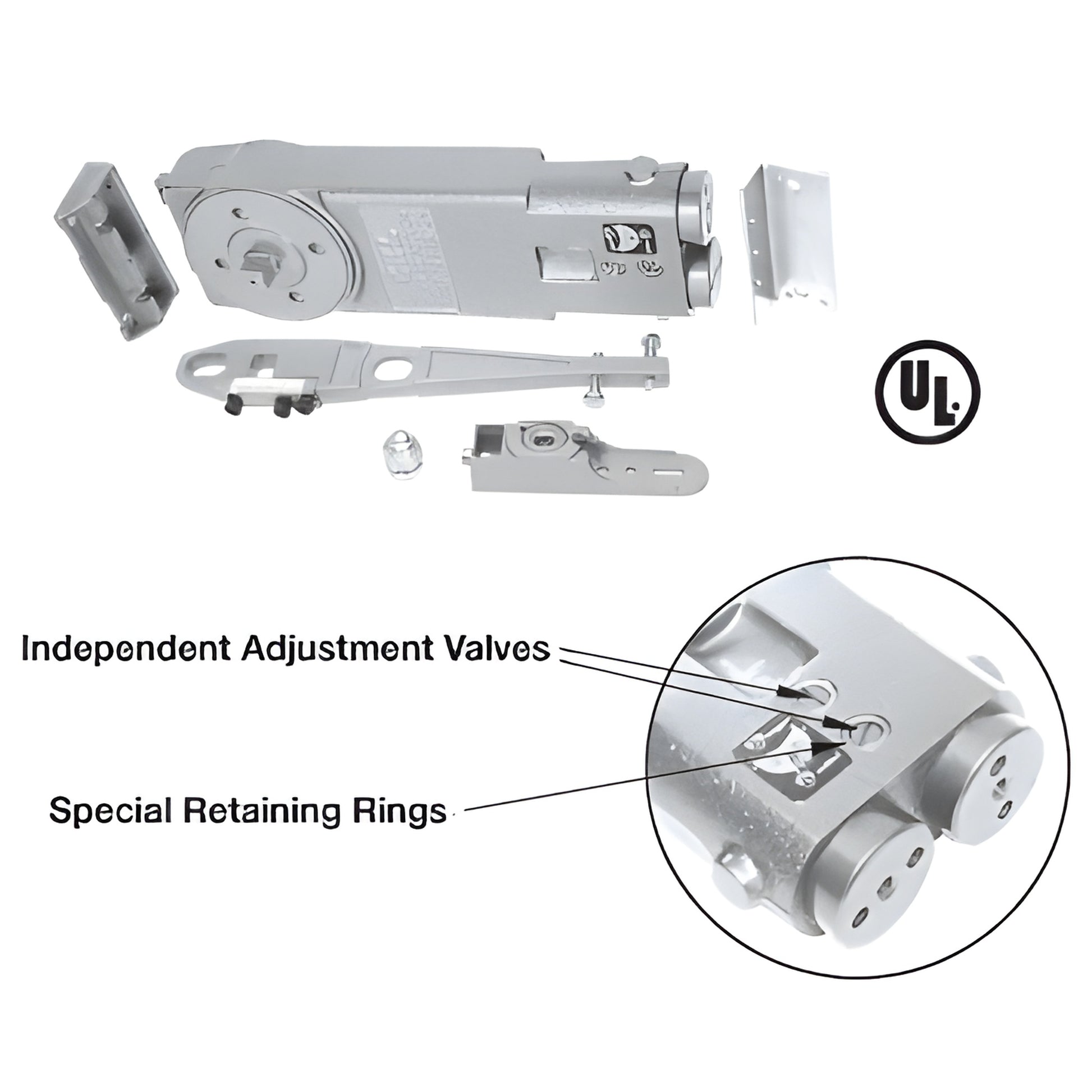

These CRL Overhead Door Closer Kits (SKU: CRL8960GE) include a medium spring size door closer, mounting clips, Type "S" side-load arm, and a "GE" bottom pivot set. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is compatible with overhead concealed door closer installations. Both 90ΒΊ and 105ΒΊ hold-open and no-hold-open models are available. Alternative spring sizes, hardware options, and overhead concealed door closer accessories can be ordered separately.
Independent Adjustment Valves
Non-critical valves provide independent control of closing speed and latching speed for precise adjustment.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the door closer body.
NOTE: Install an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum door swing.
NOTE: Although A.D.A. Series door closers comply with A.D.A. specified opening forces, site conditions and door size may affect spring power and closing performance.
Product Warning:
Closers set to comply with A.D.A. opening forces may not provide adequate spring power to control and close the door in all site conditions. This closer is not for doors weighing over 200 lbs. (91 kg) or wider than 36" (914 mm).
Ready to specify an ADA-compatible overhead concealed door closer with adjustable side-load bottom pivot for threshold mounting? Contact CRL or add SKU CRL8960GE to your quote.
