CRL 90Β° No-Hold-Open Adjustable Spring Concealed Overhead Door Closer
CRL 90Β° No-Hold-Open Adjustable Spring Concealed Overhead Door Closer
Regular price
$276.91 CAD
Regular price
Sale price
$276.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8762A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6762, CRL8010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
90Β°
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8962A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for Doors From 36" to 42" to Meet A.D.A. Opening Force Requirements
- Adjustable End-Load Bottom Pivot Set for Floor or Threshold Mounting
- For Doors with 1" (25 mm) Top Rail Depth
- 5 Year Limited Warranty
- UL Listed
The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8762A) is an ADA-compliant concealed door closer designed for retrofits and new installations. Offered as a body-only unit with mounting clips to replace non-adjustable closers, or as complete packages including the closer body, mounting clips, Type "S" side-load arm or Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set or "GE" pivot set. The closer fits into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and supports models with 90Β° or 105Β° hold-open or no hold-open functionality.

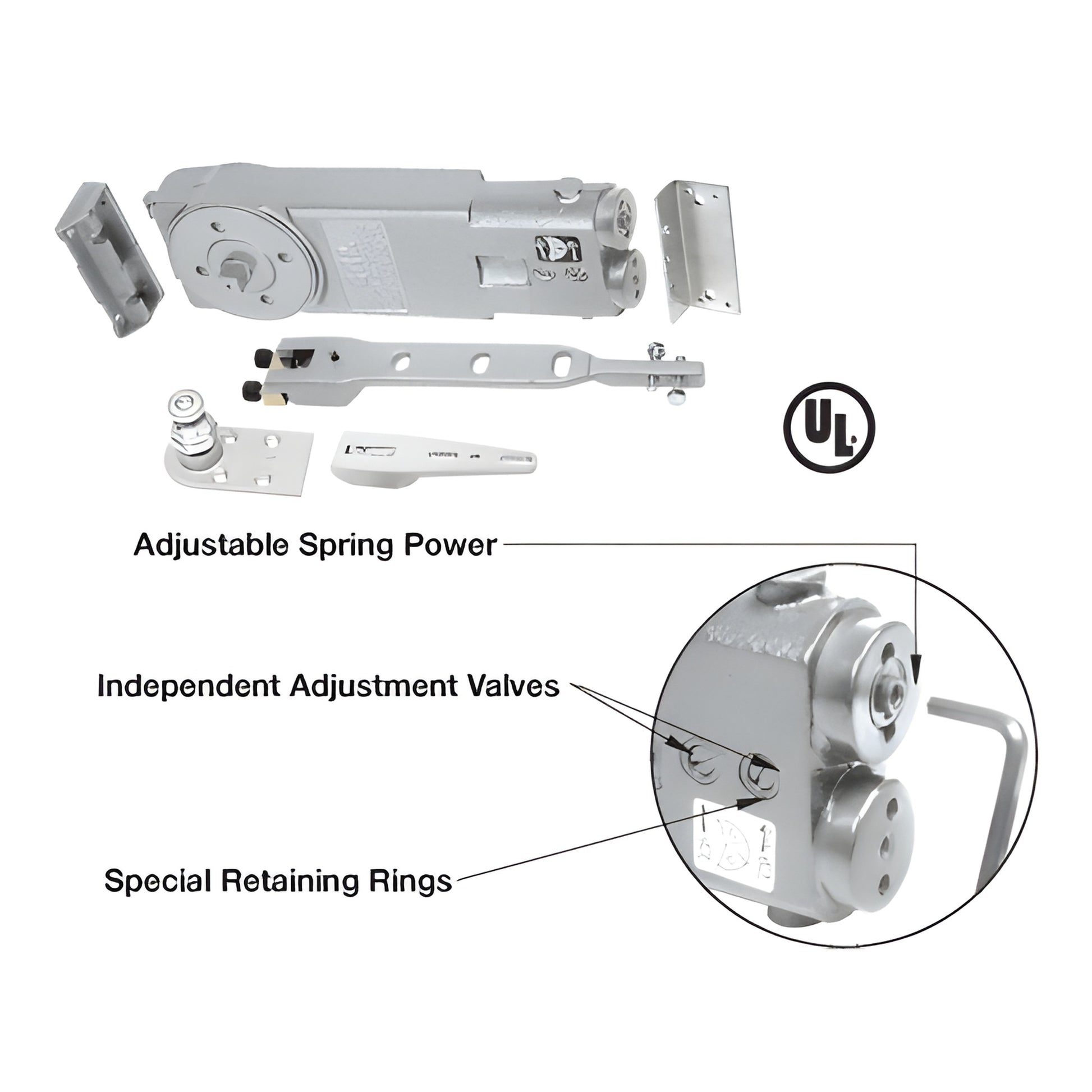

Adjustable Spring Power
Allows spring tension adjustment from a minimum of 8-1/2 lbs. opening force to a medium spring size to meet site conditions and A.D.A. opening force requirements for concealed door closers.
Independent Adjustment Valves
Non-critical dual-action valves independently control closing speed and latching speed for precise door control.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing fully out of the closer body, improving durability and serviceability.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage from over-extension of the maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door under varying site conditions and door sizes. Verify performance for your application.
Order the CRL8762A adjustable overhead concealed door closer for ADA-compliant, retrofit-ready door control β contact CRL or your local distributor to buy.
