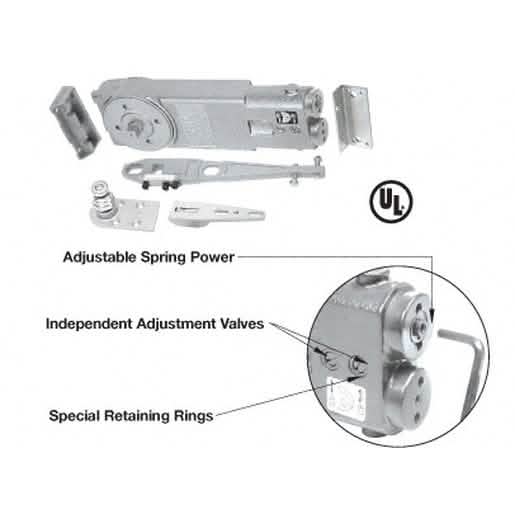

• CRL8762S aluminum concealed overhead door closer kit with arm, pivot, mounting clips and close-up of adjustment valves (UL)
1 1

CRL

CRL 90Β° Concealed Overhead Door Closer Adjustable Spring (S-Pkg)

CRL 90Β° Concealed Overhead Door Closer Adjustable Spring (S-Pkg)

$275.50 CAD
$275.50 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL8762S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6762, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
90Β°
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8762GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes

Overview

  • Suitable for doors 36"–42" to meet A.D.A. opening force requirements
  • Adjustable dual-purpose bottom pivot set for floor or threshold mounting
  • For doors with 1/2" (13 mm) top rail depth
  • 5 Year Limited Warranty Β· UL Listed

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8762S) is an ADA-compliant, retrofit-ready concealed overhead closer designed for commercial exterior and interior aluminum storefront and hollow metal doors. Offered as a body-only kit with mounting clips to replace non-adjustable closers, or as complete packages including the closer body, mounting clips, Type S side-load or Type A end-load arm, and a DP-Adjustable Dual-Purpose Bottom Pivot Set or GE-Pivot Set. Independent dual-action valves control closing and latching speeds. Available in 90Β° and 105Β° hold-open or no hold-open configurations. Bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions; additional spring sizes and hardware options are available to suit site conditions.

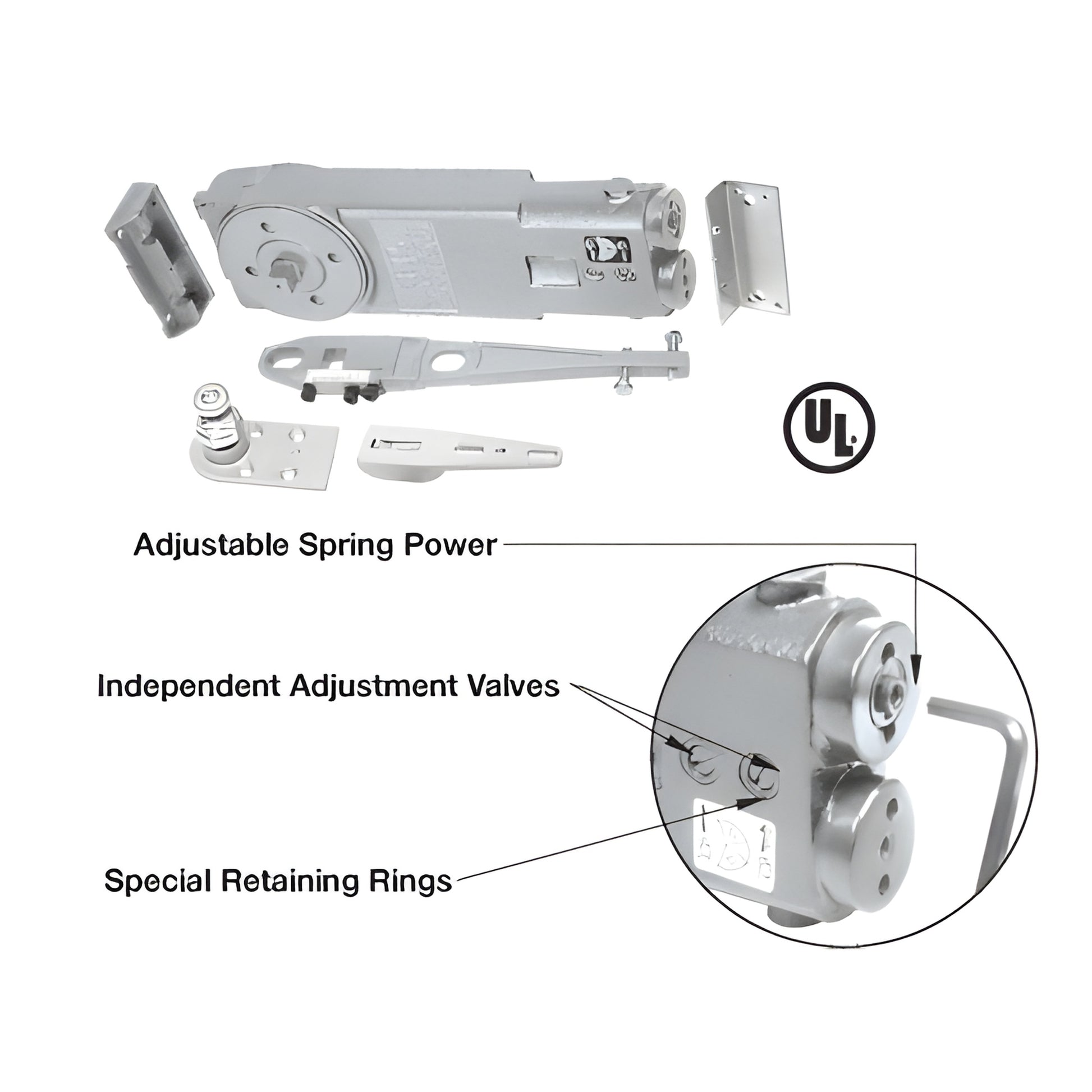

Adjustable Spring Power
Allows spring tension adjustment from a minimum 8-1/2 lbs. opening force up to a medium spring size to meet site requirements and A.D.A. opening force limits.

Independent Adjustment Valves
Non-critical valves independently adjust Closing Speed and Latching Speed for precise, field-tunable performance.

Special Retaining Rings
Prevent valve screws from backing out of the closer body during adjustment or maintenance.

Note: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the maximum allowable door swing.

Product Warning:
Closers set to comply with A.D.A. opening force limits may not provide sufficient spring power to control and close larger or heavy doors under certain site conditions. Verify suitability for door size and site before final installation.

Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary by monitor.


For retrofit or package options and to confirm compatibility with your door system, contact CRL or request a quote today.
