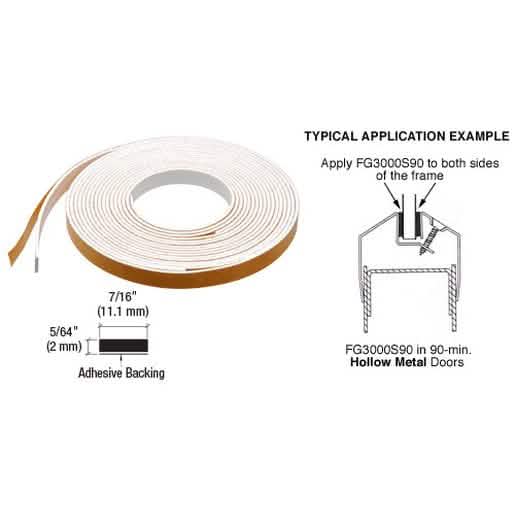

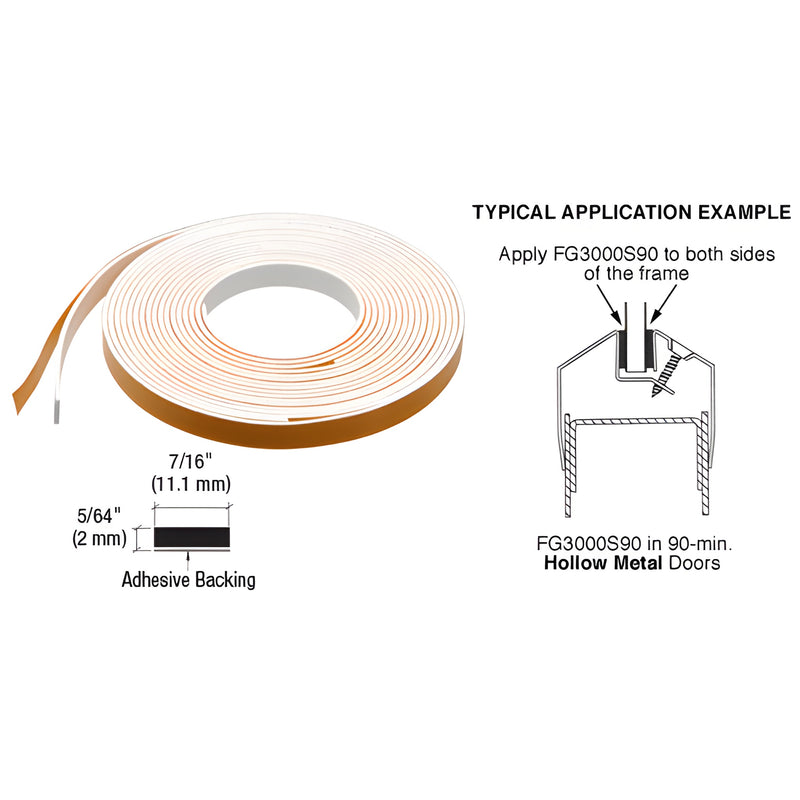

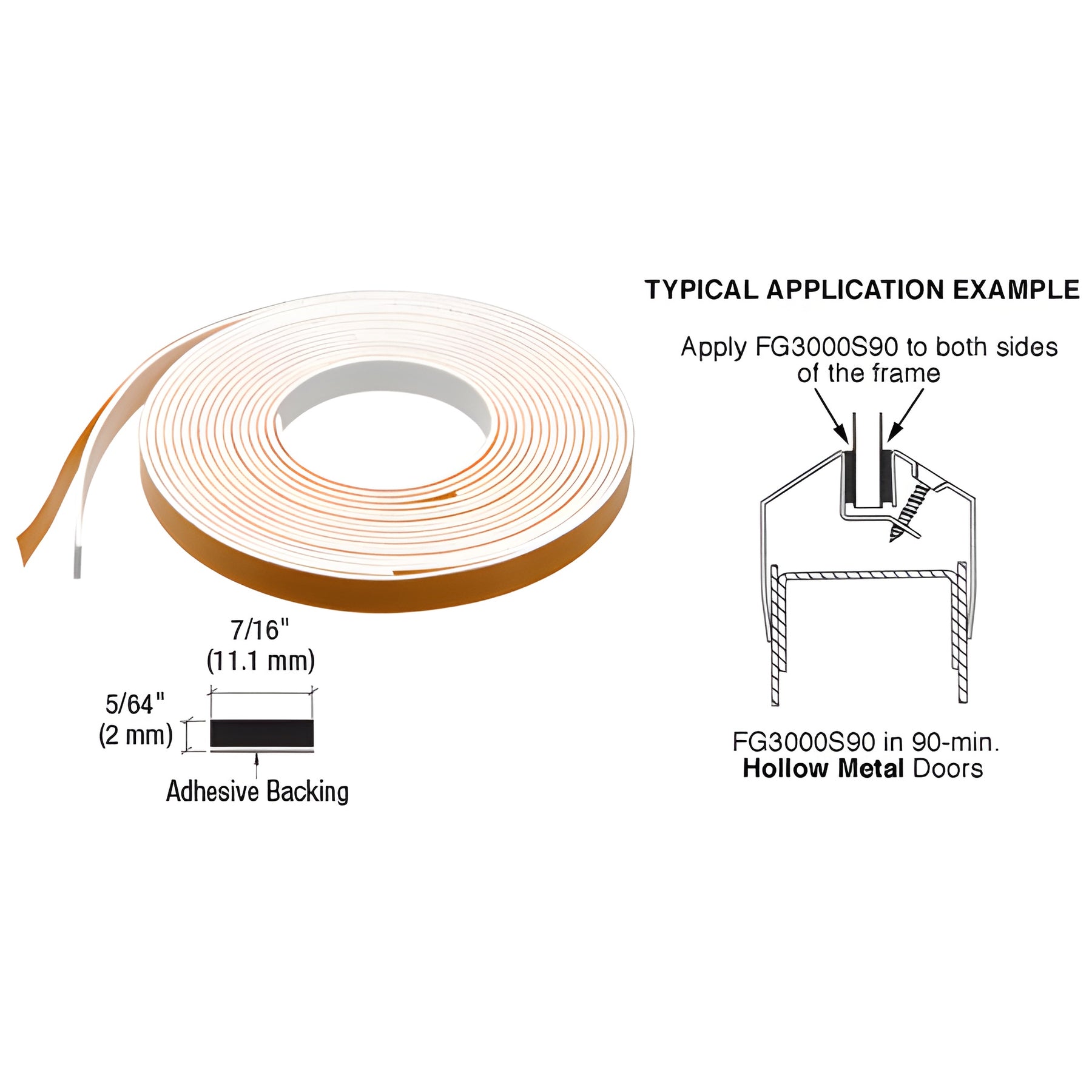

CRL 90-Minute Fire-Rated Glazing Tape 5/64" x 7/16"

• Specially Formulated High Performance Intumescent Glazing Tape
• Positive Pressure Tested and Listed
• Use with Wire Glass and Firelite™

CRL FG3000 Fire Glazing Tapes (SKU FG3000S90) are high-performance intumescent glazing tapes with single-side adhesive designed for larger vision lites in 20, 45, 60 and 90 minute rated wood and hollow metal doors with metal vision frames. Positive-pressure tested and UL-listed, FG3000 allows larger side lites, borrowed lites and glass transoms in approved hollow metal and wood door assemblies when used with listed glazing. Successfully passed 20 minutes (with hose stream) and 45 minutes tests on wood and metal doors with vision lites installed.


Maximum Wood Door Size:
48" x 96" (1.22 x 2.44 m) single and/or pairs approved.

Maximum Hollow Metal Door Size:
48" x 120" (1.22 x 3.05 m) single and/or pairs approved.

Listed glazing products include:
(Wire Glazing) Pilkington, Asahi, and Central Glass; (Non-Wire Glazing) Firelite™.

Verify all applications with your door and/or frame manufacturer.

Underwriters Laboratory IS47
Fire Rated - UL10C - Positive Pressure

Smoke Tested: Tested to UL 1784 and meets NFPA 105-2013 smoke leakage requirements (≤3.0 cfm/sq ft at 0.10" water column).

Fire Rated: Tested to UL10B and UL10C Positive Pressure Fire Tests of Door Assemblies.



Product Warning:

Verify all applications with your door and/or frame manufacturer.

Suggested Application Temperature: Between 65ºF (18ºC) and 80ºF (26ºC). Do not install on frames below 50ºF (10ºC) or above 100ºF (37ºC).

These tapes perform best when used within 6 months of purchase.

Order FG3000S90 for a tested,
