CRL Cielo 96-in Center Post Kit for Frameless Glass Railings
CRL Cielo 96-in Center Post Kit for Frameless Glass Railings
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C96CKC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
6005-T6
Depth
4-1/2 in. (114 mm)
Finish/Color
Powder Coated
Glass Included
No
Glazing Thickness
1/2 in. & 9/16 in. (12 mm & 14 mm)
Height
96 in. (2438 mm)
Material
Aluminum
Width
3-1/4 in. (83 mm)
Overview
- 6, 7, and 8-Foot post heights
- Meets IBC 2018 windload requirements
- Durable 6005-T6 aluminum construction
- End posts and center posts available
- Surface or core mounting for steel or concrete
- Standard finishes: Matte Black, Silver Metallic, Sky White
- Compatible with 1/2” monolithic or 9/16” laminated glass

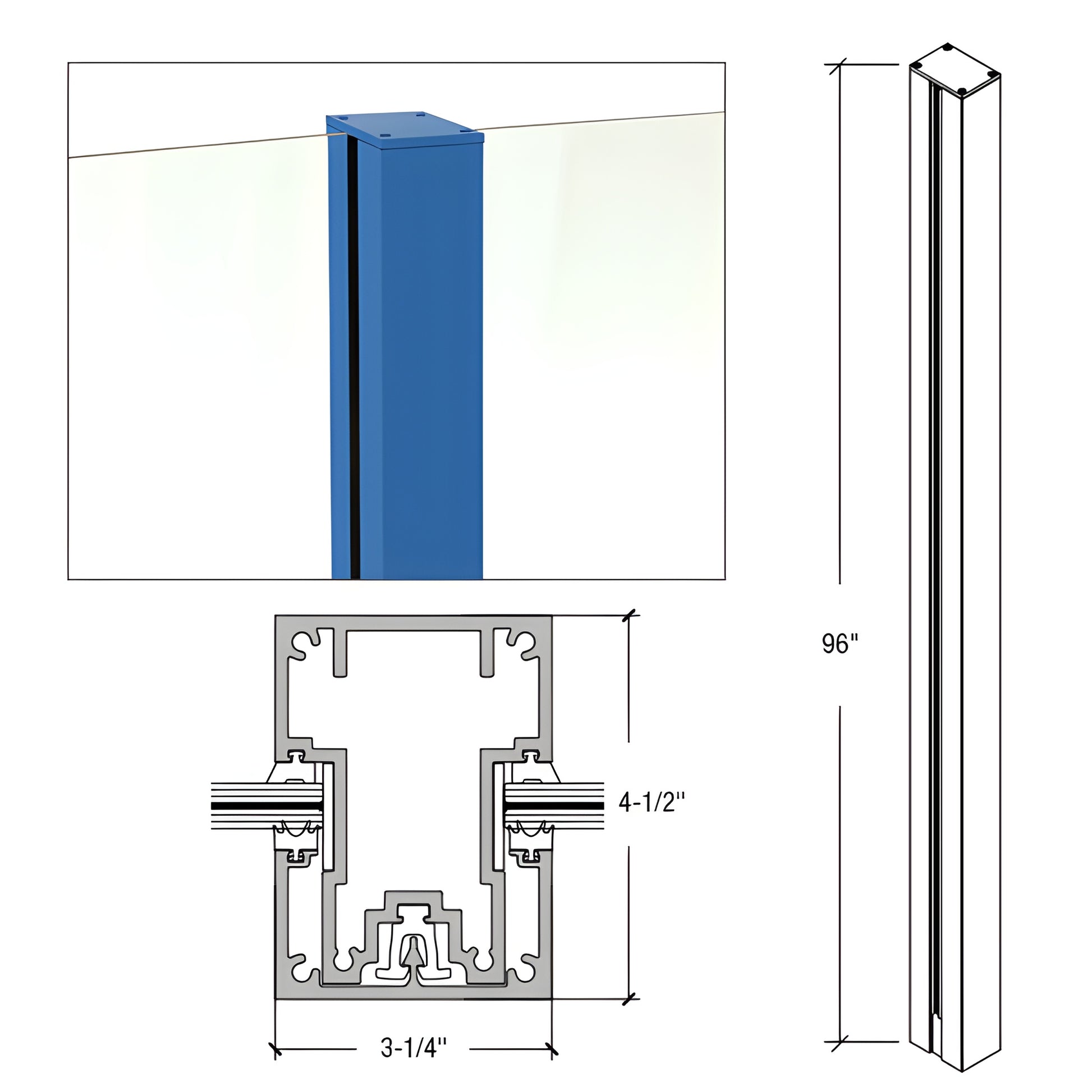

The Cielo Post Windscreen System (SKU: C96CKC) features a slim 3-1/4” front trim and 4-1/2” post depth that delivers virtually unobstructed views and reliable structural performance. With no horizontal extrusions required, the system enables expansive post-to-post glass spans for rooftop glass windscreen, pool-edge wind barriers, and commercial glass railing applications. A unique snap-in post cover system speeds installation and conceals fasteners for a clean, modern aesthetic.

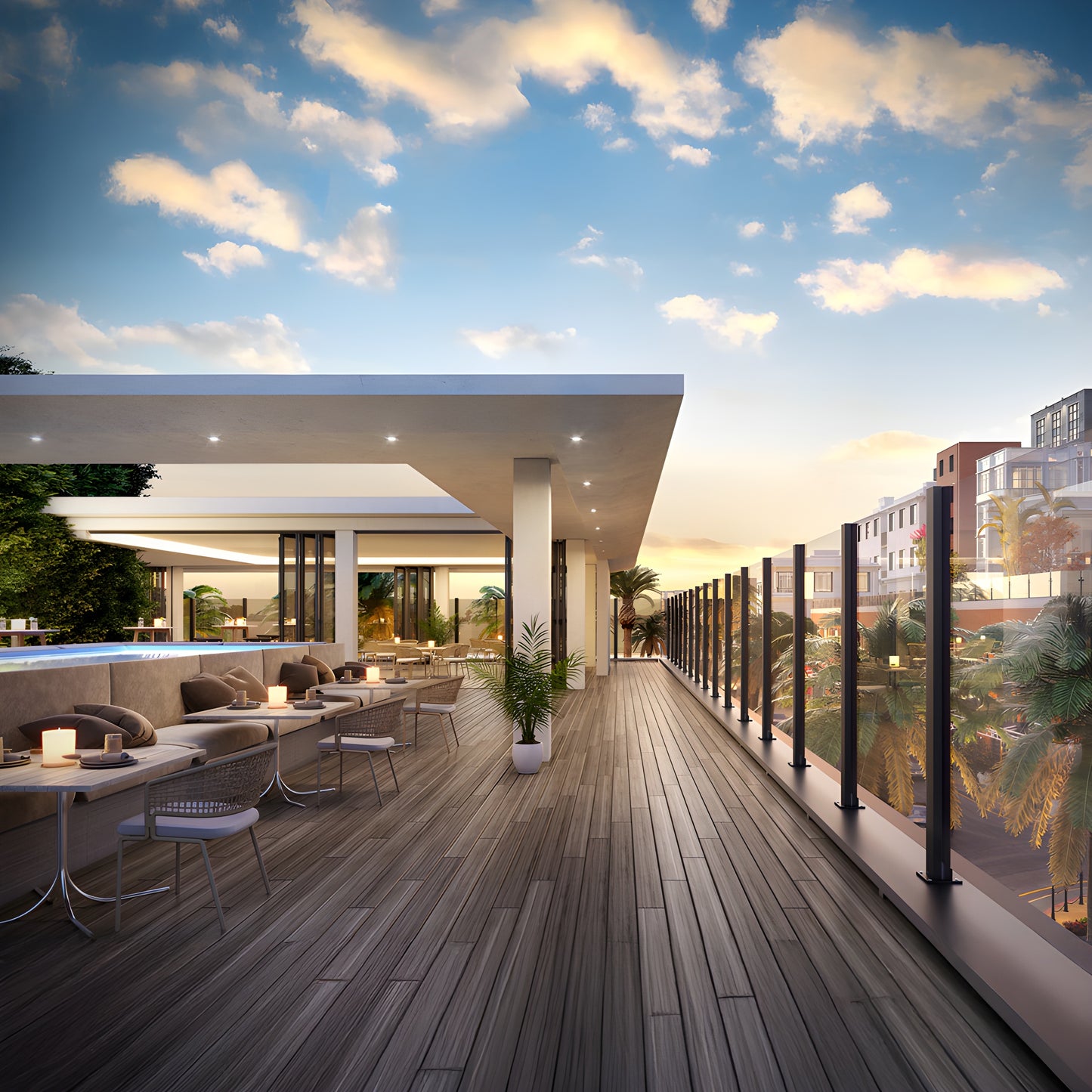

Ideal for commercial and residential high-elevation projects—rooftop swimming pools, dining terraces, lounges, and other elevated exteriors—the Cielo system is an aluminum glass post solution engineered for wind-prone environments.
Contact CRL to get specifications, pricing, or a quote for the Cielo Post Windscreen System today.
Specifications
BIM Objects - rvt
