CRL

CRL 96 in Custom Cielo Corner Post Kit for Glass Railing

CRL 96 in Custom Cielo Corner Post Kit for Glass Railing

Shipping calculated at checkout.
Quantity
Item# C96CRKC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

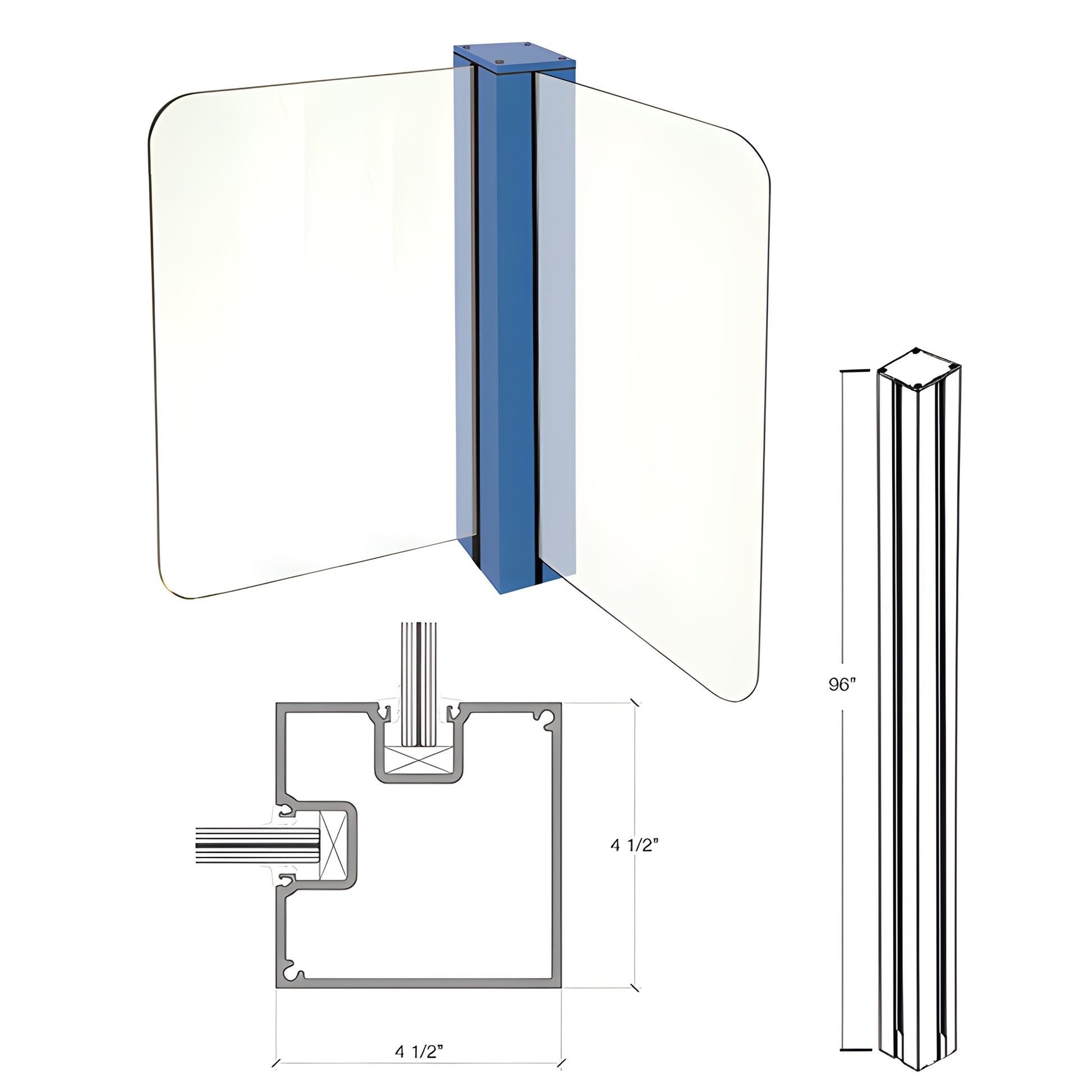

Product Information

Description

Alloy
6005-T6
Depth
4-1/2 in. (114 mm)
Finish/Color
Specify
Glass Included
No
Glazing Thickness
1/2 in. & 9/16 in. (12 mm & 14 mm)
Height
96 in. (2438 mm)
Material
Aluminum
Width
3-1/4 in. (83 mm)

Overview

  • Available in 6‑, 7‑, and 8‑foot post heights
  • Meets IBC 2018 windload requirements for glass windscreens
  • Durable 6005‑T6 aluminum construction for exterior post systems
  • End posts and center posts available for continuous glass runs
  • Surface or core mounting on steel or concrete for rooftop installations
  • Standard finishes: Matte Black, Silver Metallic, Sky White
  • Designed for 1/2" monolithic or 9/16" laminated glass

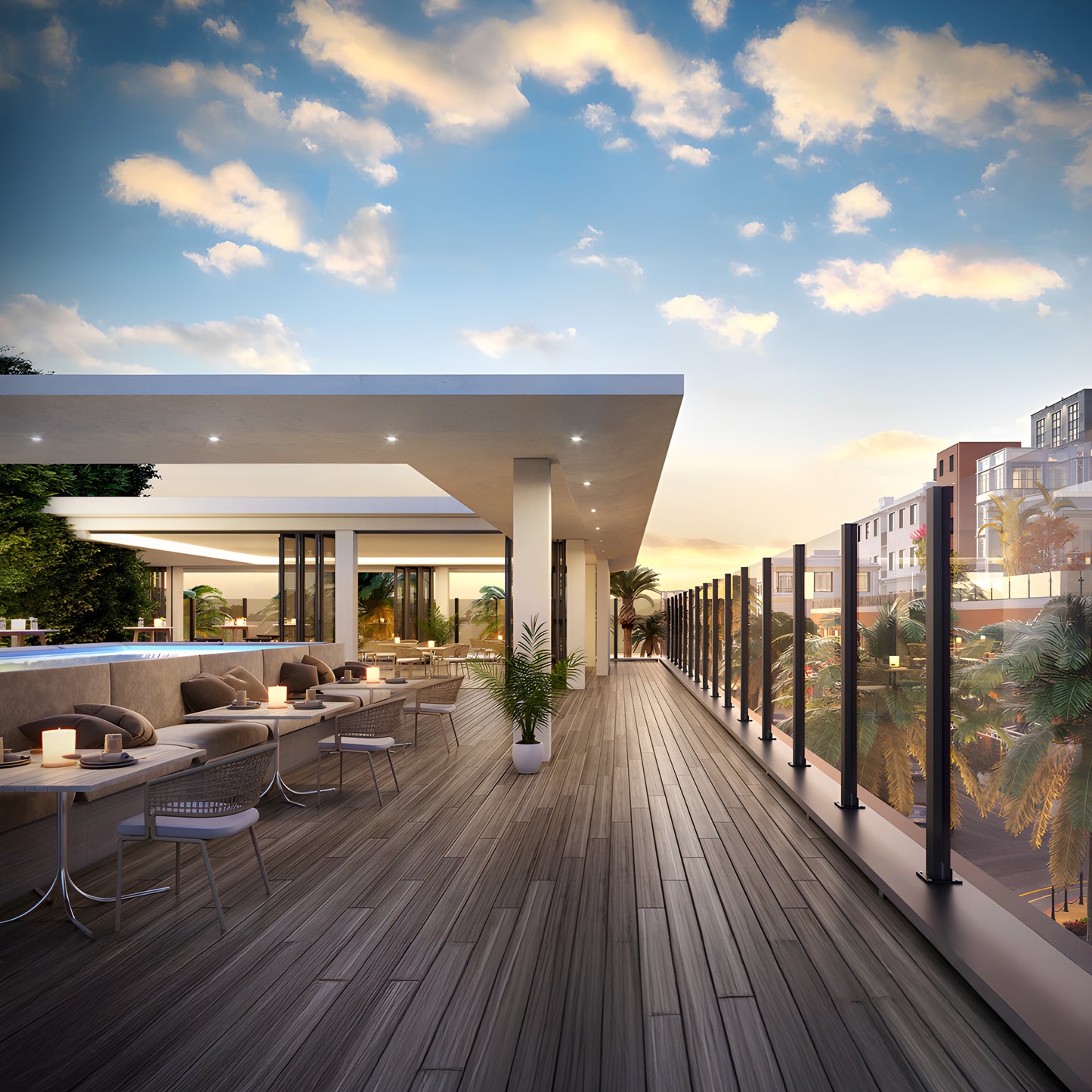

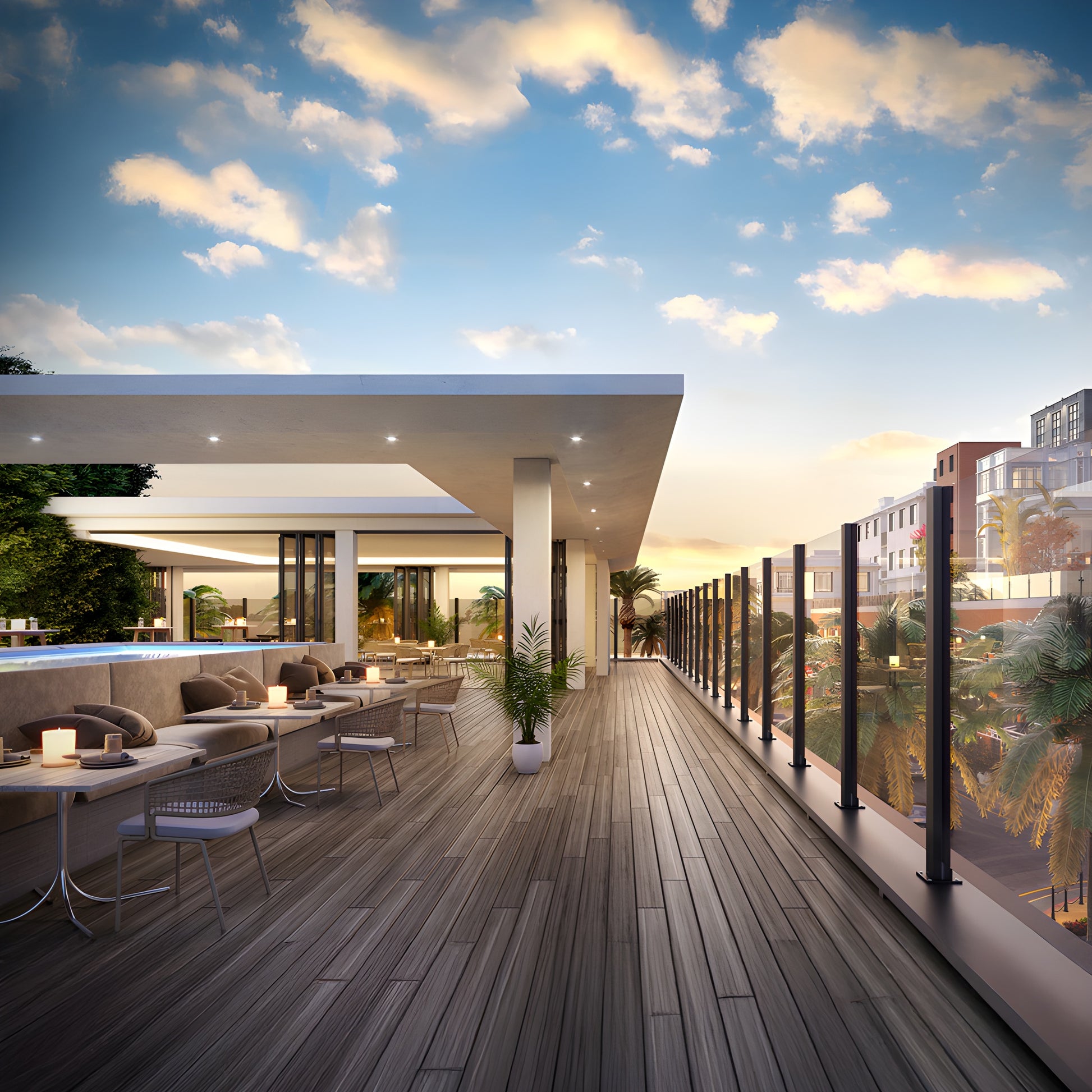

Cielo Post Windscreen System features a slim 3‑1/4" front trim and 4‑1/2" post depth to maximize sightlines while providing robust structural performance. The system eliminates the need for horizontal extrusions, enabling expansive post‑to‑post glass spans ideal for rooftop pools, elevated dining areas, and high‑rise terraces. A snap‑in post cover conceals fasteners and speeds installation for a clean, modern glass railing or windscreen finish.

Specifically suited for commercial and residential high‑elevation exteriors, Cielo is a top choice when you need a low‑profile windscreen post system that meets code and installs quickly.

Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order.


Product images are representative; actual colors may vary by monitor. For specification help or to request exact weights, contact CRL Customer Service with SKU C96CRKC.


Specifications

BIM Objects - rvt
