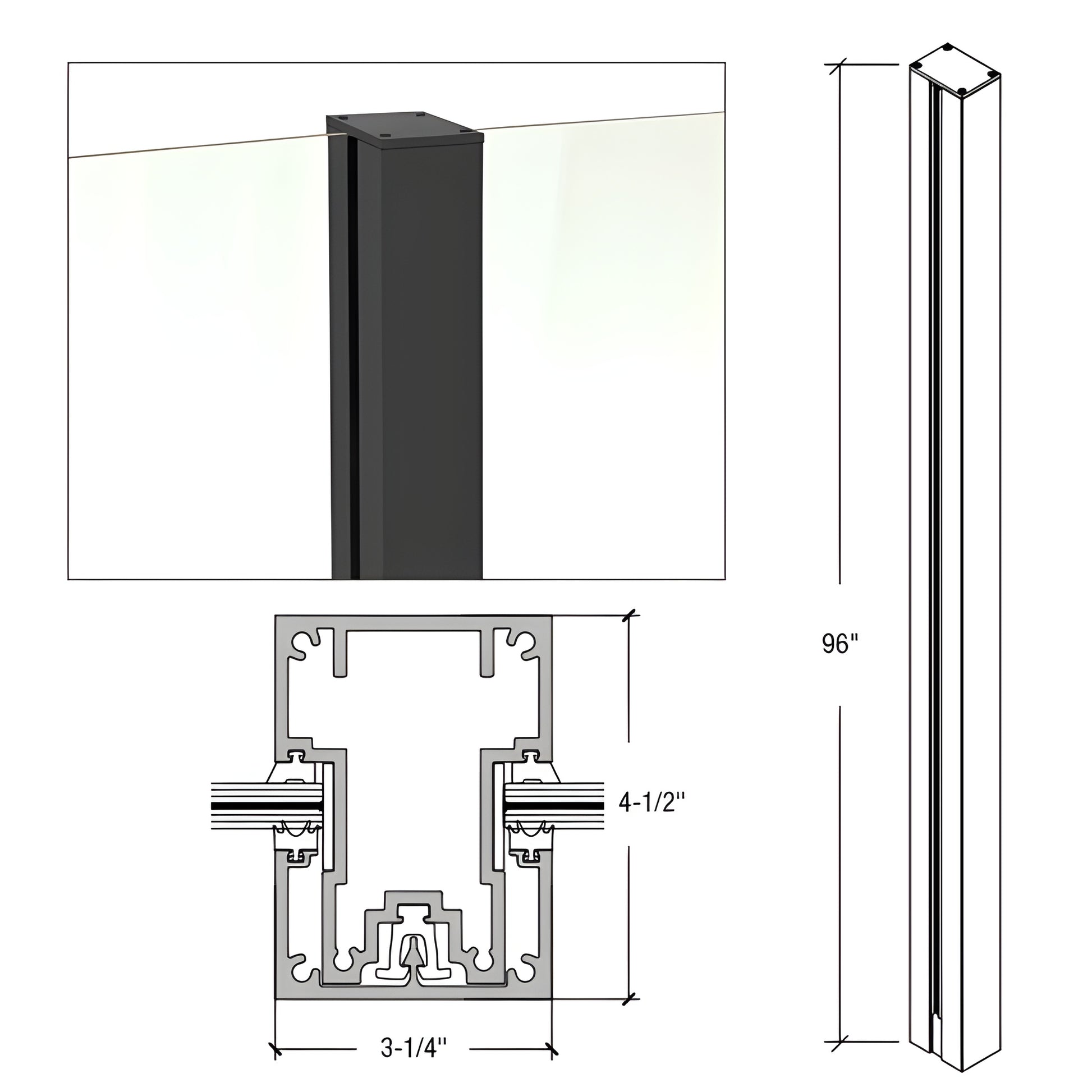

CRL 96" Matte Black Cielo Center Post Kit
CRL 96" Matte Black Cielo Center Post Kit
Regular price
$1,198.62 CAD
Regular price
Sale price
$1,198.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C96CKBL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1


Description
Alloy | 6005-T6 |
Depth 4-1/2 in. | (114 mm) |
Finish/Color | Matte Black |
Glass | Included No |
Glazing Thickness | 1/2 in. & 9/16 in. (12 mm & 14 mm) |
Height 96 in. | (2438 mm) |
Material | Aluminum |
Width 3-1/4 in. | (83 mm) |
Overview
The Cielo Post Windscreen System offers exceptional views with its sleek 3-1/4” front trim and 4-1/2” post depth, providing optimal structural performance without the need for horizontal extrusions.
Available in 6, 7, and 8-foot post heights, it meets IBC 2018 windload requirements and is constructed from durable 6005-T6 aluminum.
The system supports 1/2” monolithic or 9/16” laminated glass and can be surface or core mounted on steel or concrete.

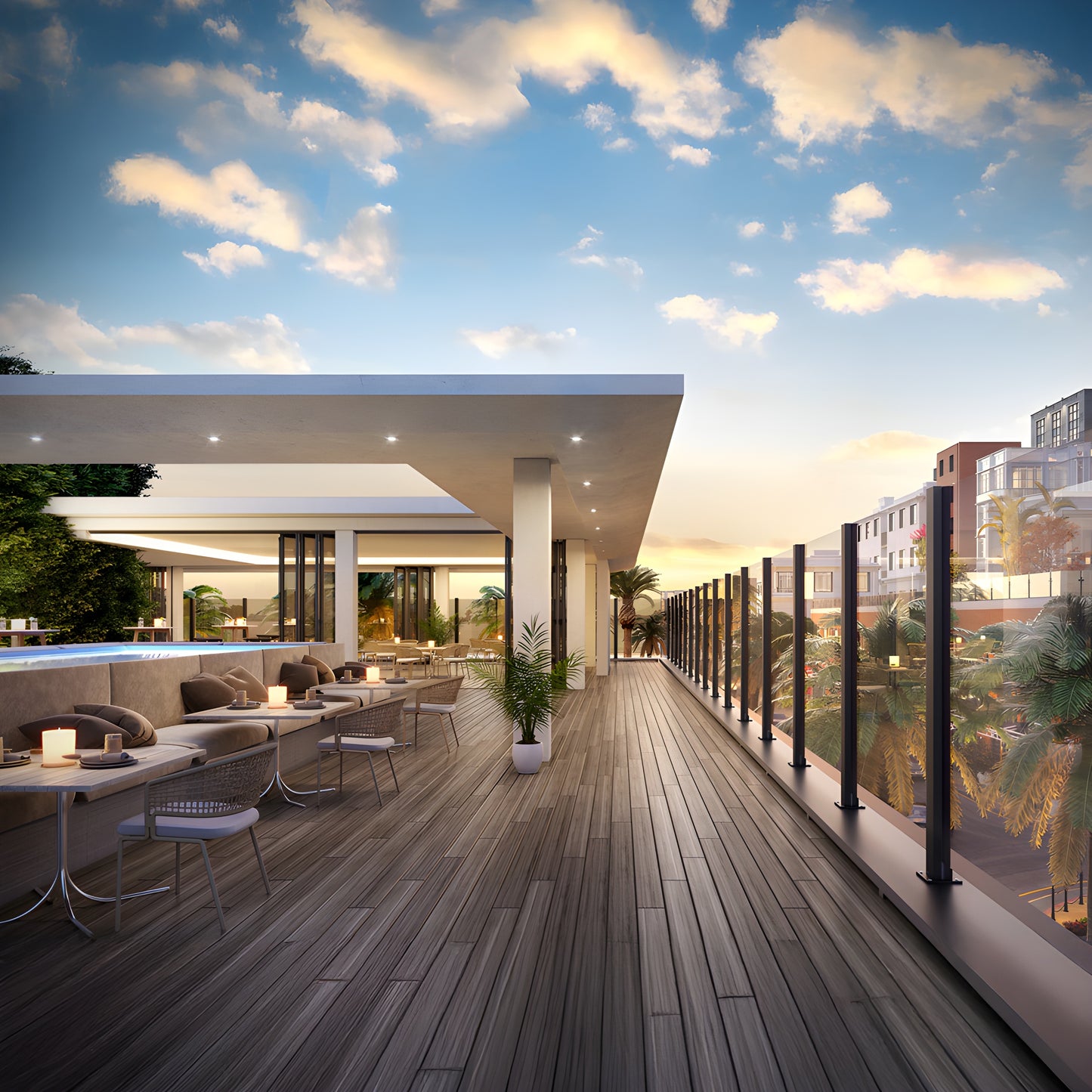

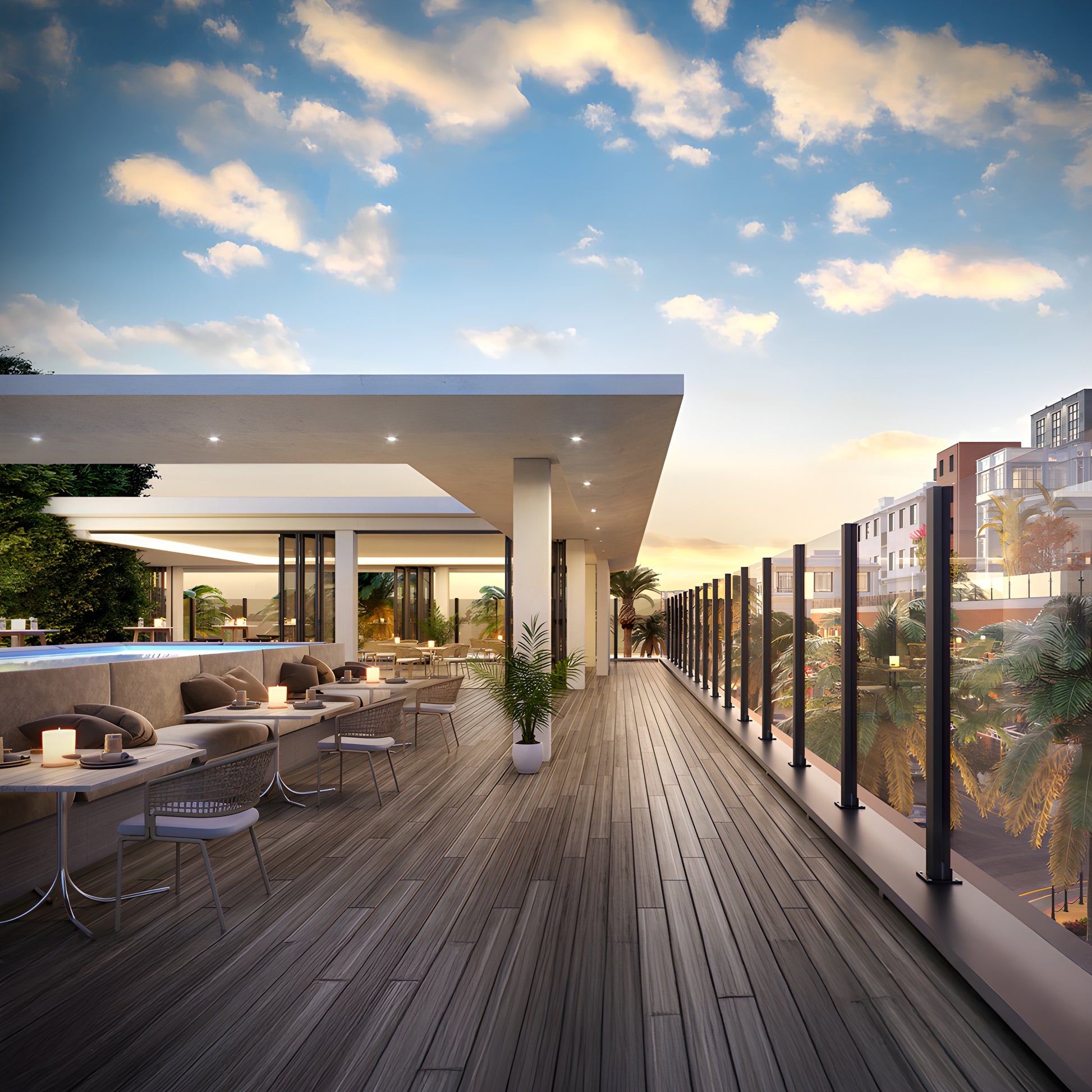

Standard finishes include Matte Black, Silver Metallic, and Sky White, making it an ideal choice for high-altitude commercial and residential applications such as rooftop pools and dining areas.
Available in 6, 7, and 8-foot post heights, it meets IBC 2018 windload requirements and is constructed from durable 6005-T6 aluminum.
The system supports 1/2” monolithic or 9/16” laminated glass and can be surface or core mounted on steel or concrete.
Standard finishes include Matte Black, Silver Metallic, and Sky White, making it an ideal choice for high-altitude commercial and residential applications such as rooftop pools and dining areas.
