CRL Cielo 96-Inch Matte Black End Post Kit for Glass Railing
CRL Cielo 96-Inch Matte Black End Post Kit for Glass Railing
Regular price
$1,071.22 CAD
Regular price
Sale price
$1,071.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C96EKBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
6005-T6
Depth
4-1/2 in. (114 mm)
Finish/Color
Matte Black
Glass Included
No
Glazing Thickness
1/2 in. & 9/16 in. (12 mm & 14 mm)
Height
96 in. (2438 mm)
Material
Aluminum
Width
3-1/4 in. (83 mm)
Overview
- Available in 6, 7, and 8-foot post heights
- Meets IBC 2018 windload requirements
- Durable 6005-T6 aluminum construction
- End posts and center posts available
- Surface or core mounting on steel or concrete
- Standard finishes: Matte Black, Silver Metallic, Sky White
- Compatible with 1/2” monolithic or 9/16” laminated glass

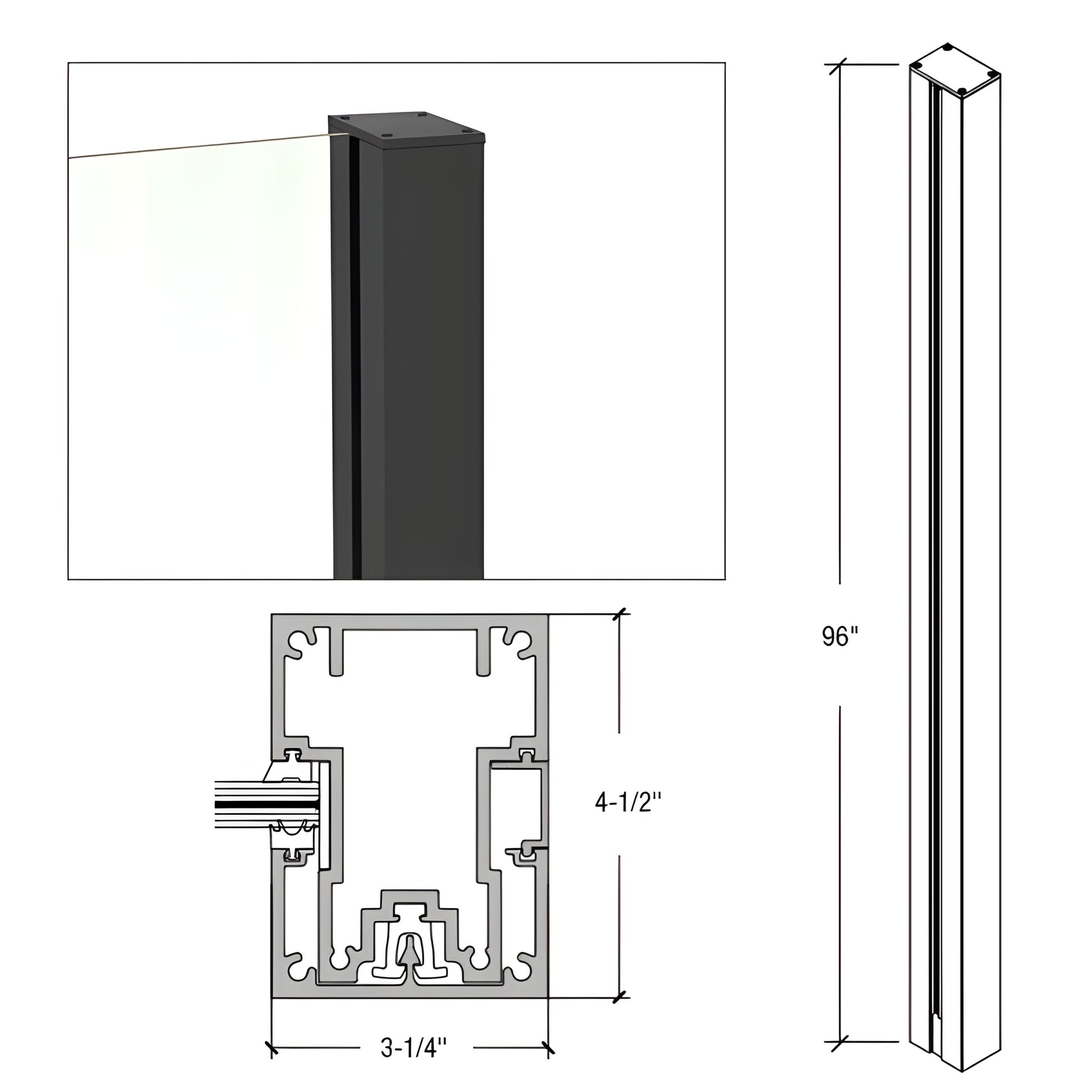

The Cielo Post Windscreen System (SKU: C96EKBL) features a slim 3-1/4” front trim and 4-1/2” post depth to deliver virtually unobstructed views with optimal structural performance. The design requires no horizontal extrusions for support, enabling expansive post-to-post glass spans. A unique snap-in system for post covers speeds installation and conceals fasteners for a clean, streamlined appearance.

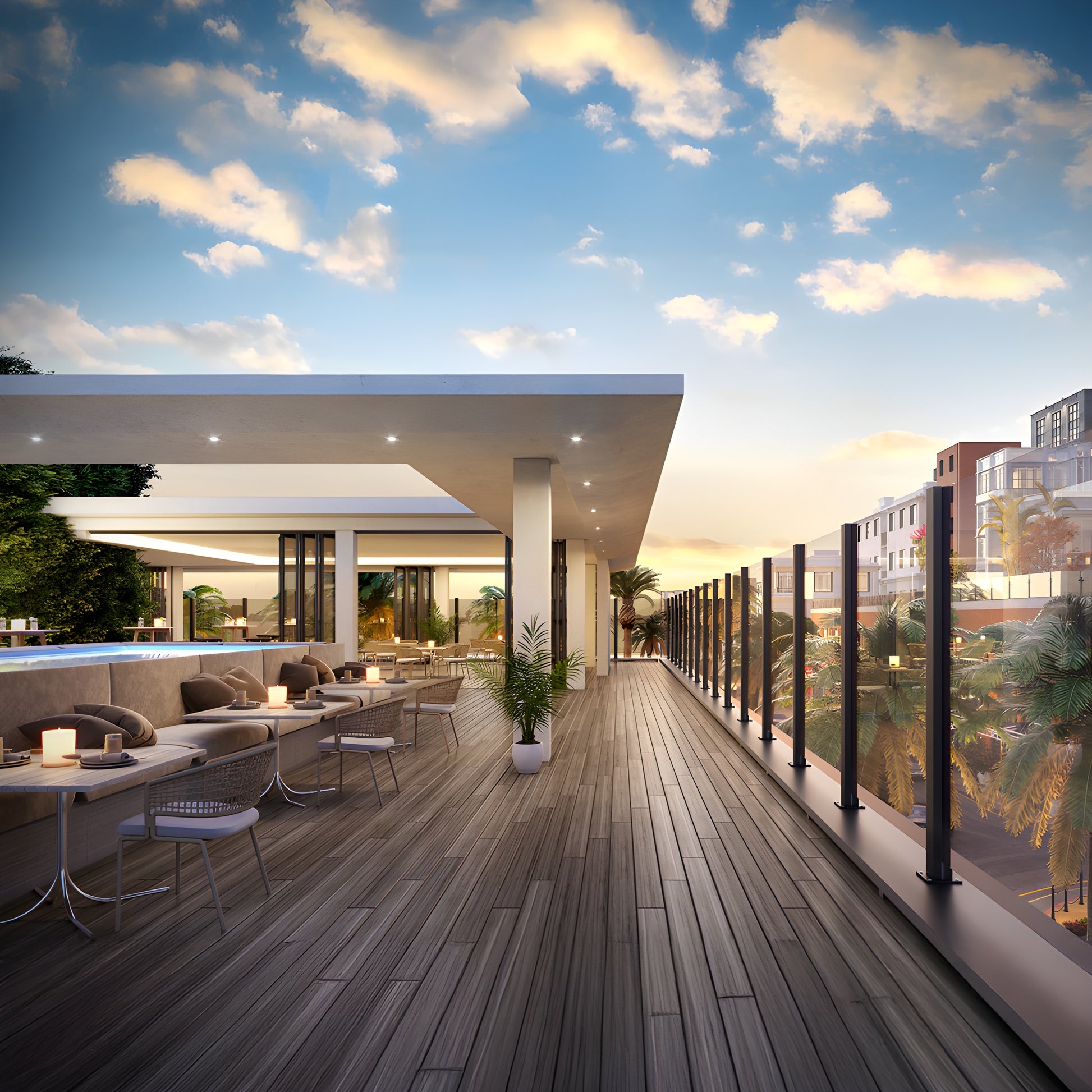

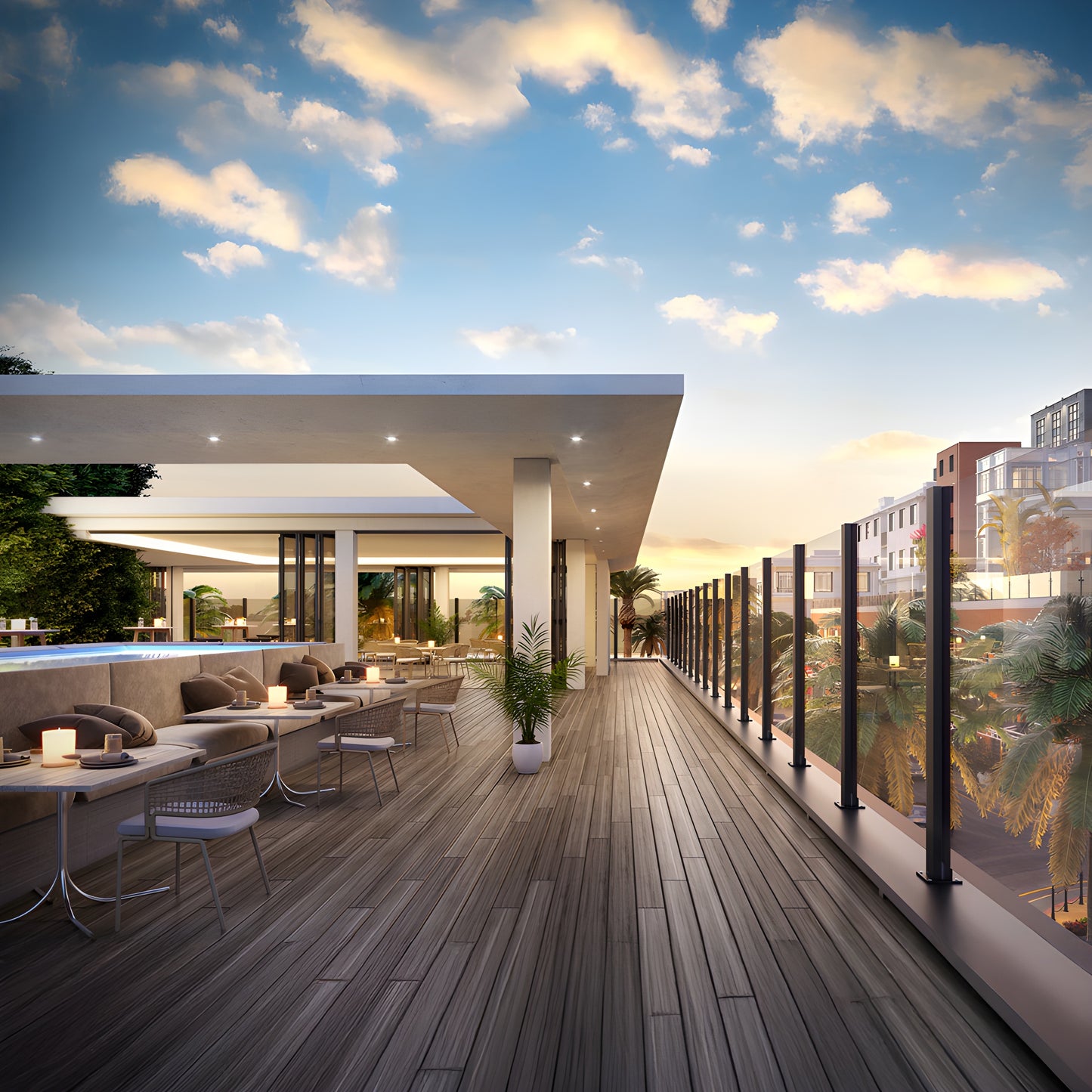

Cielo is ideal for commercial and residential high-elevation applications, including rooftop swimming pools, balcony and terrace windscreen systems, dining areas, lounges, and other elevated exterior spaces where wind-rated glass protection and clear sightlines are required.
Order the Cielo Post Windscreen System (C96EKBL) today for wind-rated glass windscreens with a minimalist profile — contact CRL to request a quote or technical details.
Specifications
BIM Objects - rvt
