CRL Cielo 96 in Silver Metallic End Post Kit for Glass Railing
CRL Cielo 96 in Silver Metallic End Post Kit for Glass Railing
Regular price
$1,253.51 CAD
Regular price
Sale price
$1,253.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C96EKS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
6005-T6
Depth
4-1/2 in. (114 mm)
Finish/Color
Silver Metallic
Glass Included
No
Glazing Thickness
1/2 in. & 9/16 in. (12 mm & 14 mm)
Height
96 in. (2438 mm)
Material
Aluminum
Width
3-1/4 in. (83 mm)
Overview
- Available Post Heights: 6, 7, and 8 foot
- Meets IBC 2018 windload requirements for high-elevation exteriors
- Durable 6005-T6 aluminum construction for corrosion resistance
- End posts and center posts available
- Surface or core mounting for steel or concrete substrates
- Standard finishes: Matte Black, Silver Metallic, Sky White
- Compatible with 1/2" monolithic or 9/16" laminated glass

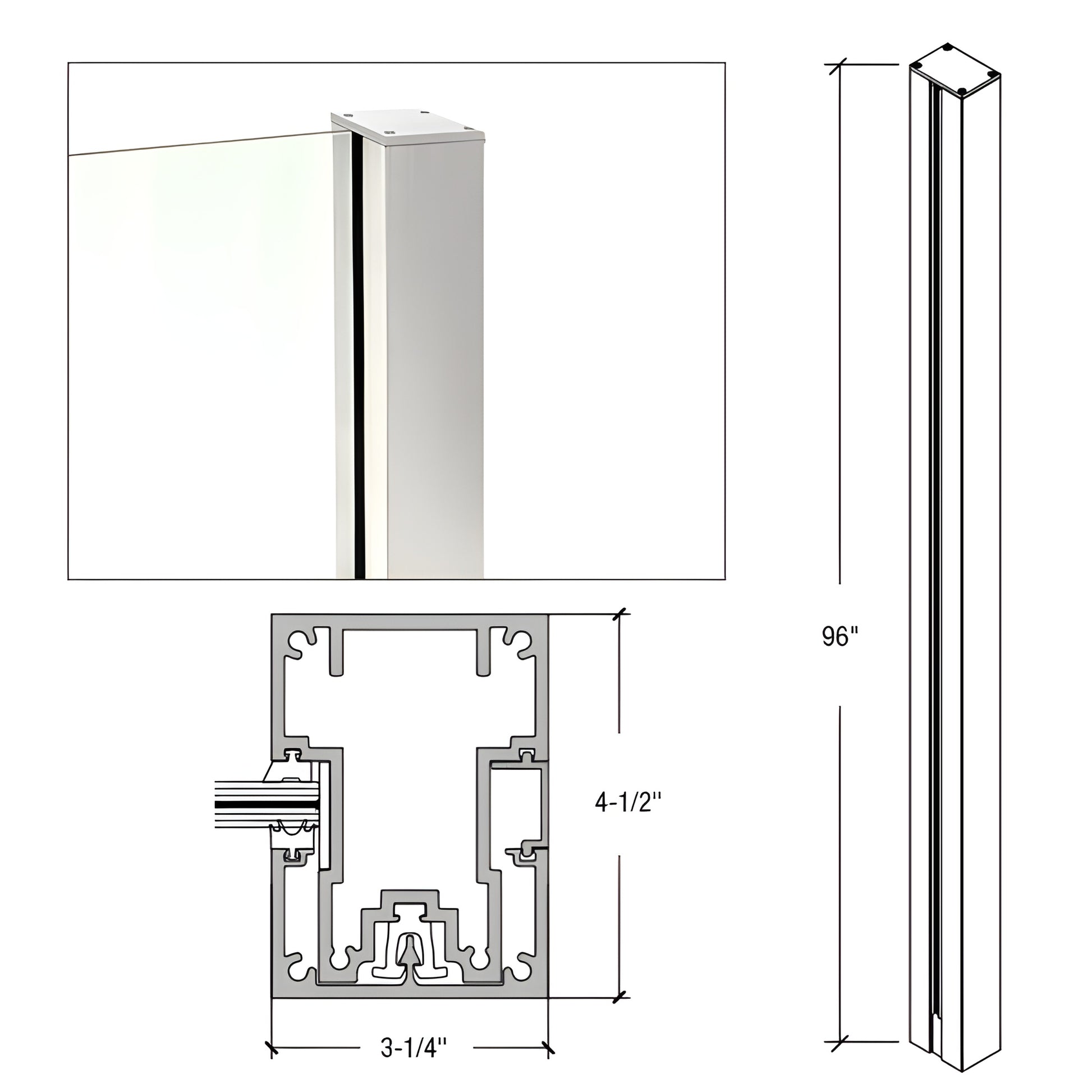

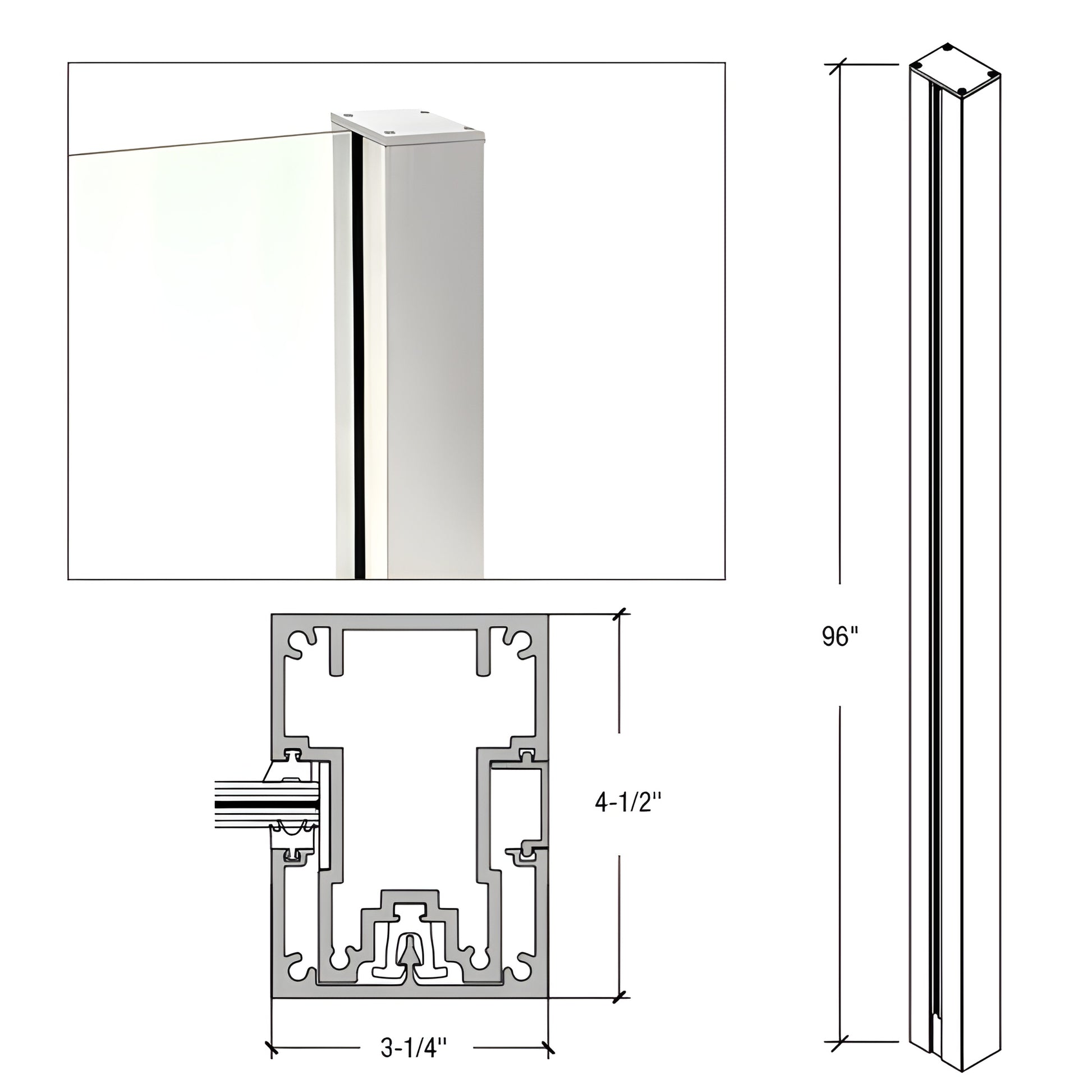

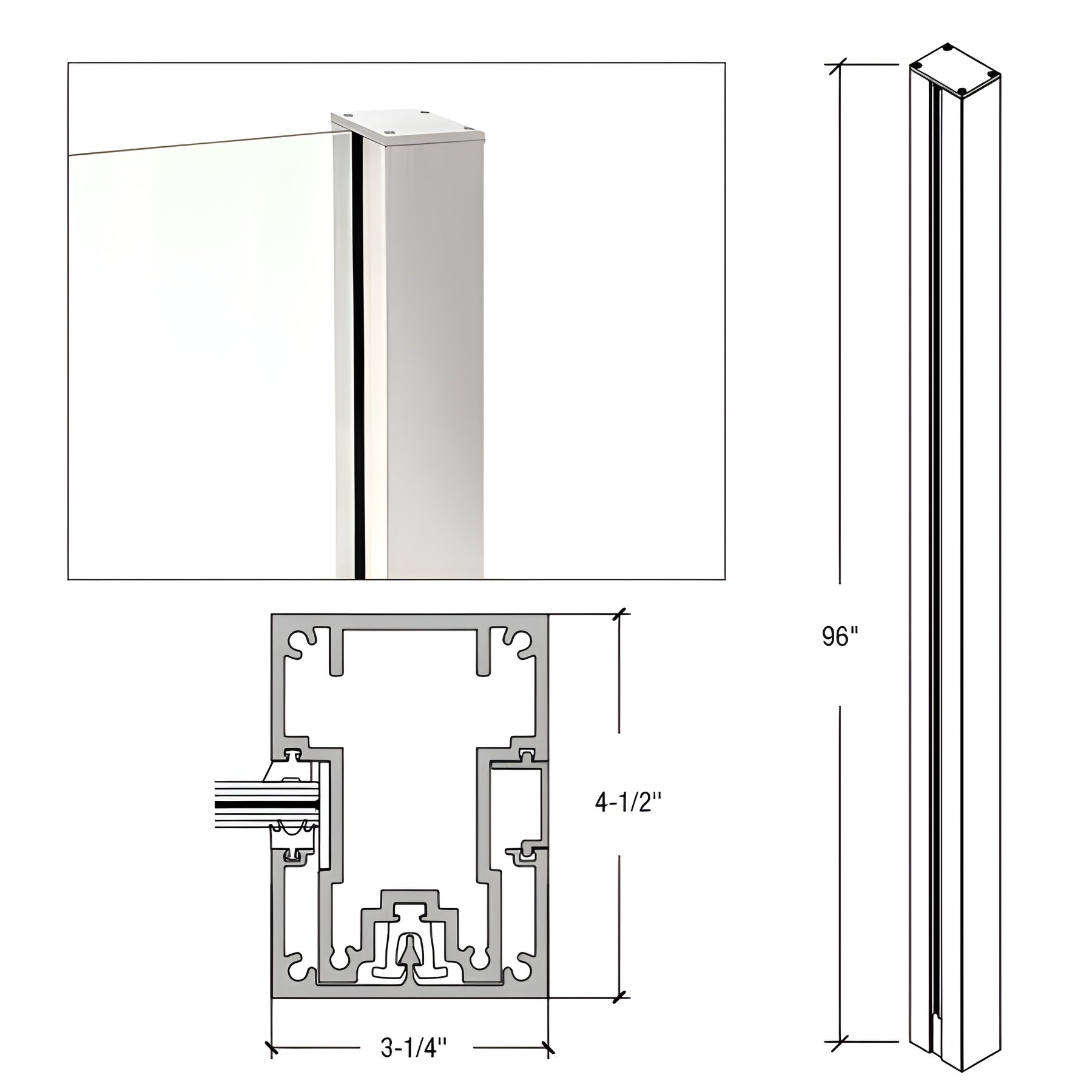

Cielo Post Windscreen System (SKU: C96EKS) features a slim 3-1/4" front trim and 4-1/2" post depth to maximize sightlines while delivering robust structural performance. The design eliminates the need for horizontal extrusions, enabling expansive post-to-post glass spans. A unique snap-in post-cover system conceals fasteners and speeds installation for a clean, modern glass railing or windscreens application.

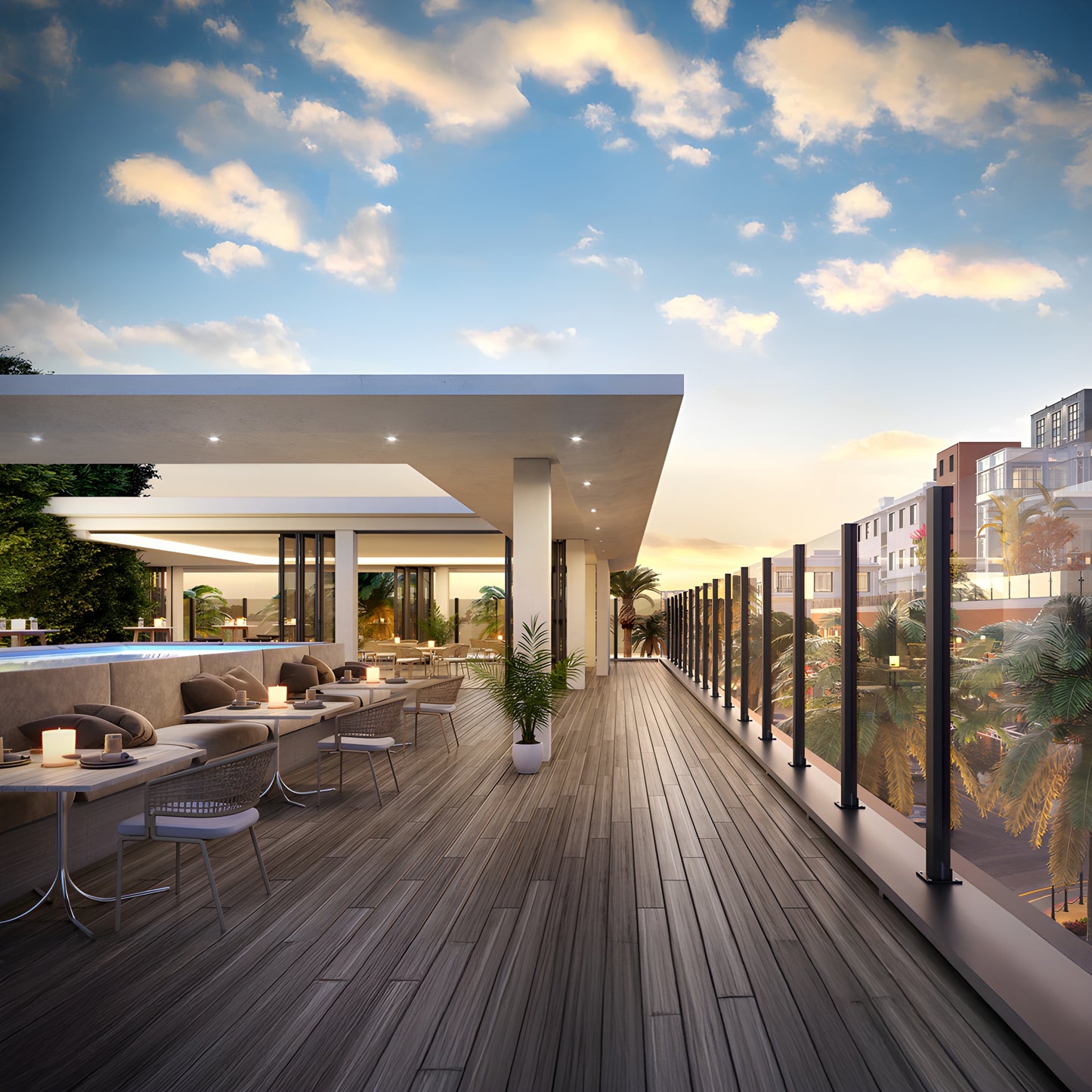

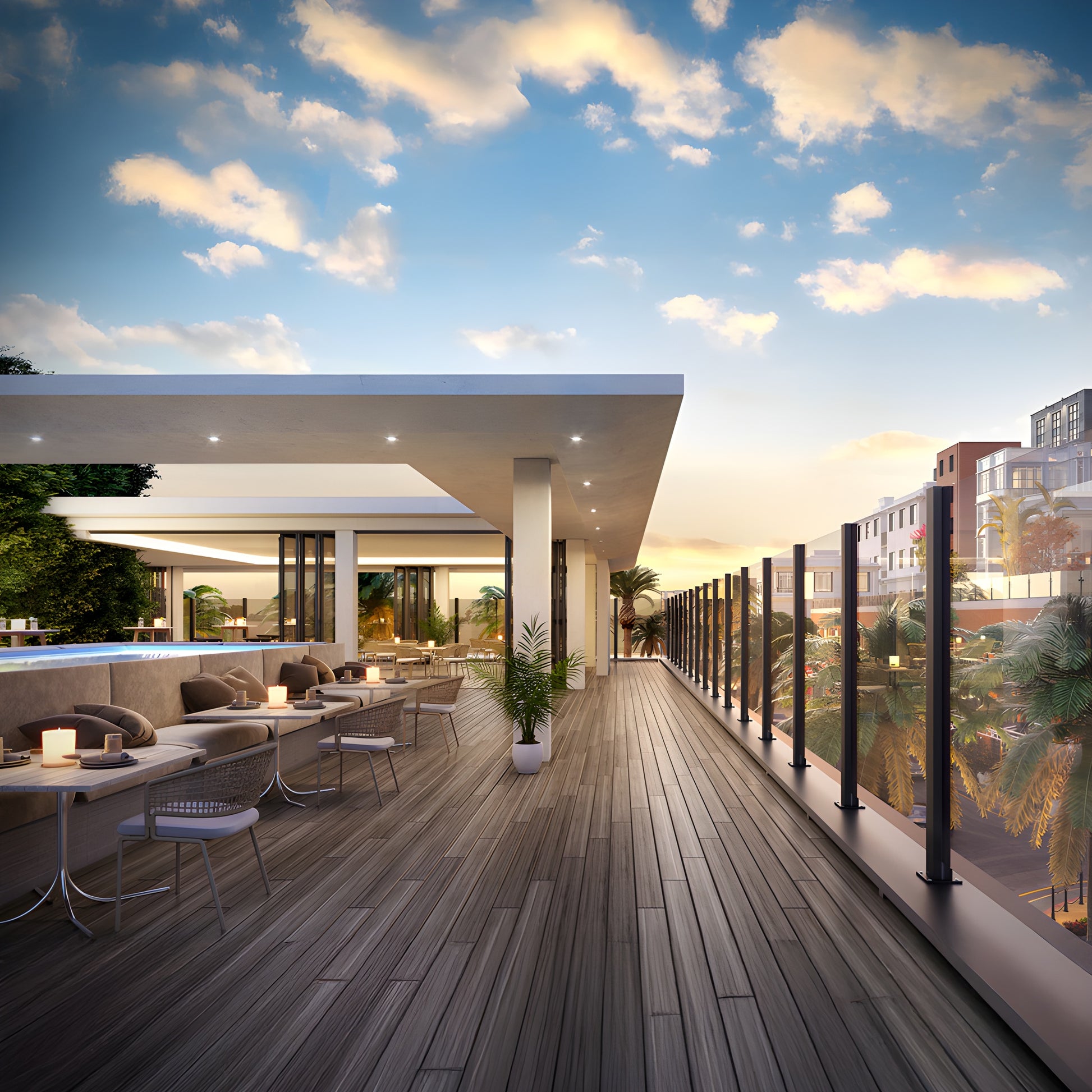

Ideal for commercial and residential rooftop pools, terraces, dining areas, lounges, and other high-altitude exteriors where windload-certified glass railing and windscreens are required.
Order the Cielo Post Windscreen System (C96EKS) for a code-compliant, low-profile glass railing solution — contact CRL for pricing and lead times.
Specifications
BIM Objects - rvt
