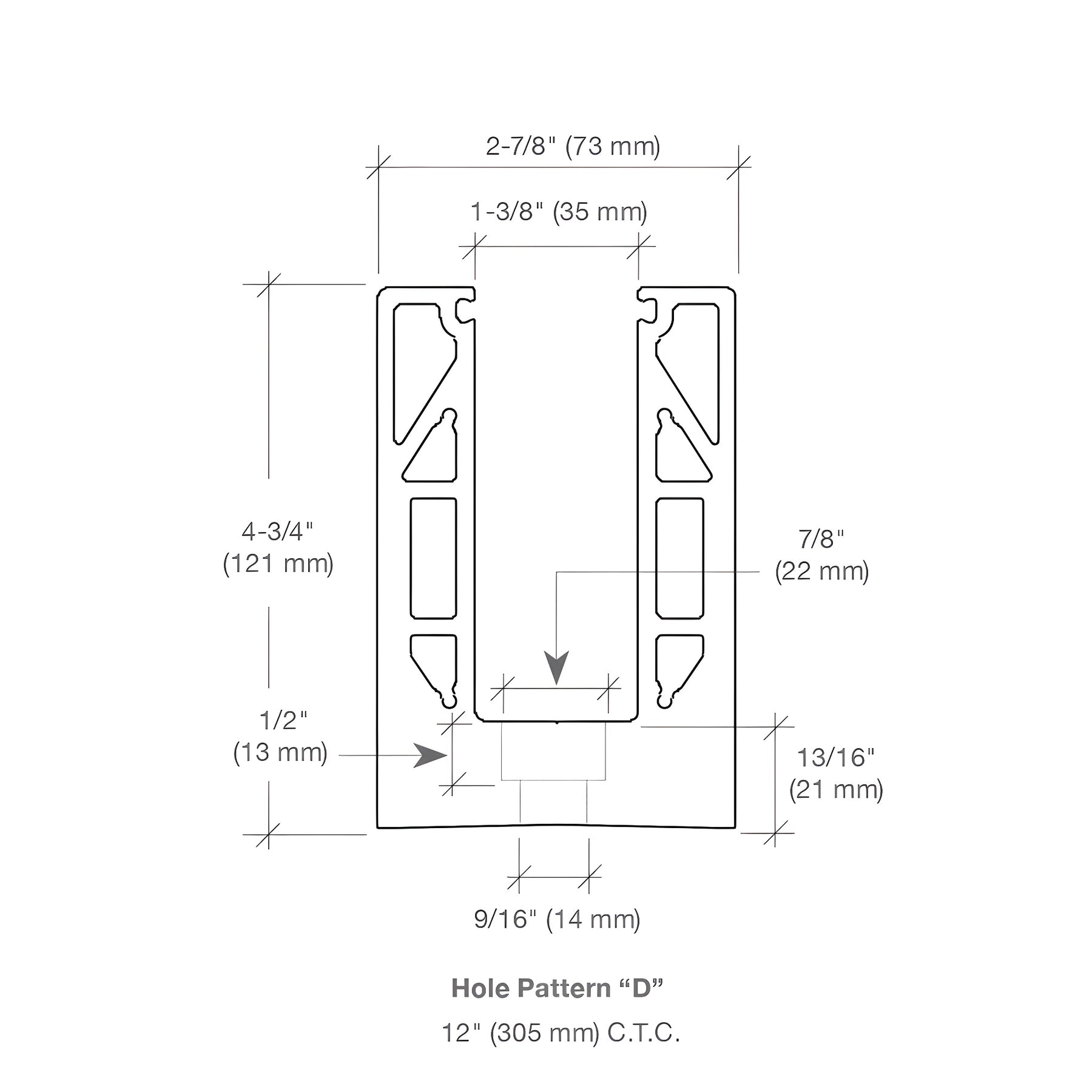

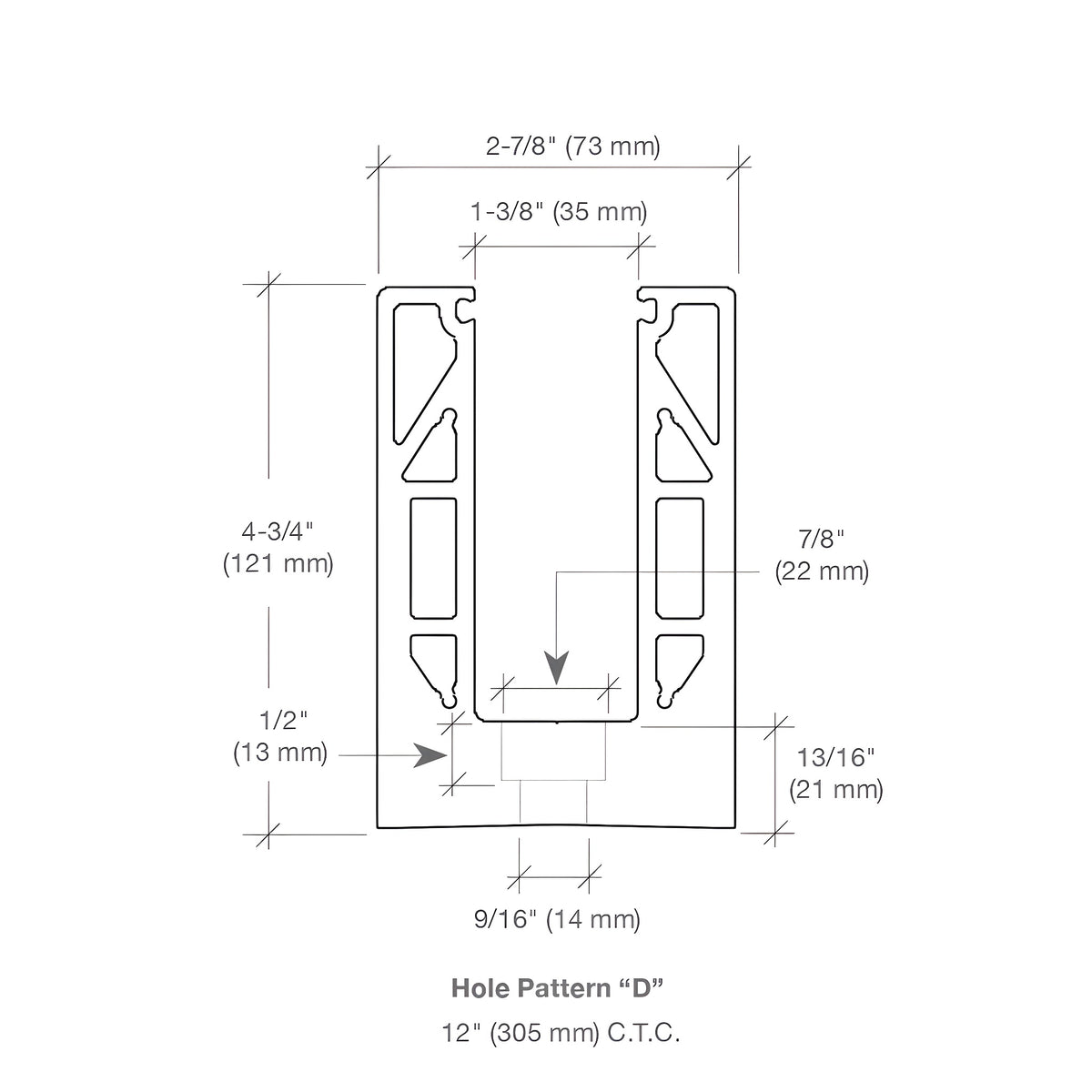

CRL 9BL 120" Mill Finish Square Base Shoe - Drilled for 9/16" Glass

• For 9/16" (13.52 mm) laminated tempered glass (6 x 1.52 x 6 mm)
• Designed and engineered for 2015 IBC code changes
• 30% lighter than industry-standard base shoe for reduced shipping costs and lower material handling
• Meets and exceeds 200 lb load with a 4× safety factor
• CRL recommends consulting the glass fabricator prior to wet-setting laminated tempered glass
• CRL glass railing systems meet NBC load requirements when installed in accordance with ICC-3842

CRL 9BL56D Series Square Base Shoe (SKU: 9BL56D) shares the same profile as the standard L56S Series but is 30% lighter—making it a cost-effective, environmentally friendlier aluminum base shoe for glass railing systems. Engineered to work with CRL's patented TAPER-LOC® system, the 9BL56D can be cut to length with a chop saw using a minimum 10" (254 mm) diameter blade for aluminum.

Glass specifications:
For use with 9/16" (13.52 mm) laminated tempered glass (6 mm x 1.52 mm x 6 mm)
Thickness range: 0.497" (12.62 mm) to 0.549" (13.94 mm)

Product warning:

CRL does not recommend direct powder coating of this base shoe extrusion. Use powder-coated cladding applied over the base shoe instead. All pre-drilled CRL base shoes have a +1/8" (3 mm)/-1/16" (1.5 mm) tolerance between each hole. Before drilling installation holes in concrete or steel substrates, place the base shoe in its final position and mark hole locations on the substrate.

Key differentiators: lighter aluminum square base shoe, compatible with TAPER-LOC® system, code-compliant design (2015 IBC & ICC-3842), suitable for 9/16" laminated tempered glass.

Order SKU 9BL56D today or contact CRL for technical support and cutting recommendations.
