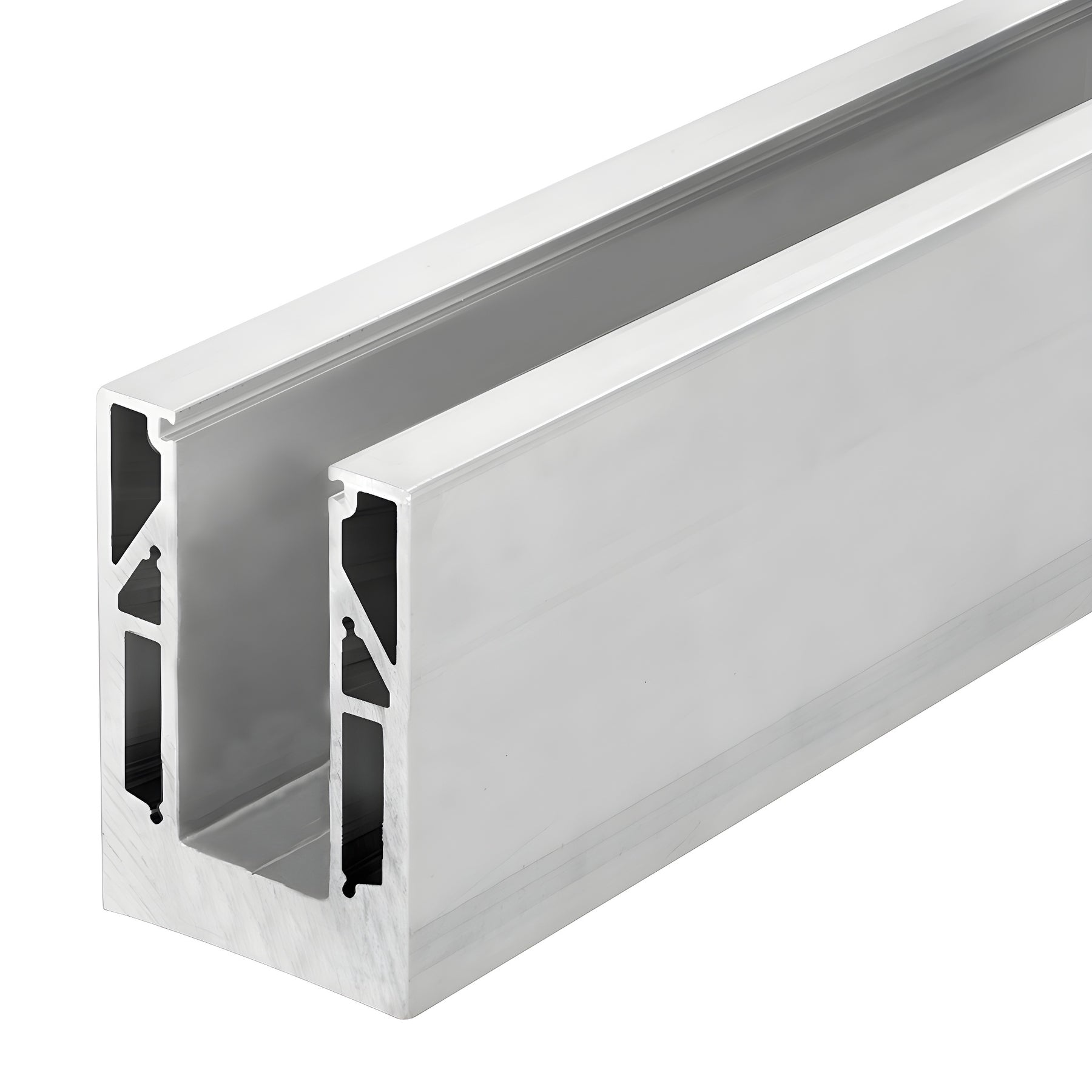

CRL 9BL Mill Finish 118-1/8" Square Base Shoe for 11/16" Glass

• For 11/16" (17.52 mm) laminated tempered glass (8 x 1.52 x 8 mm)
• Designed and engineered for 2015 IBC code changes
• 30% lighter than industry standard base shoe — reduces material cost, weight and shipping for glass railing projects
• Meets and exceeds 200 lb load with a 4x safety factor
• CRL recommends consulting with the glass fabricator prior to wet-setting laminated tempered glass
• CRL glass railing systems meet NBC load requirements when installed in accordance with ICC-3842

CRL 9BL68D Series Square Base Shoe — same profile as the L68S Series but 30% lighter for a more price-competitive, eco-friendly aluminum square base shoe for glass railing installations. Designed to work with CRL's patented TAPER-LOC® System. Can be cut to length using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting.

Product Warning:

CRL does not recommend direct powder coating of this base shoe extrusion. Powder-coated cladding applied over the base shoe is the recommended method.

All pre-drilled CRL base shoes have a +1/8" (3 mm) / -1/16" (1.5 mm) tolerance between drilled holes. Before drilling installation holes in concrete or steel substrate, place the base shoe in its final position and mark hole locations in the substrate.

SKU: 9BL68D

Order the 9BL68D square base shoe for laminated tempered glass railings today — contact CRL Customer Service to confirm weight and lead time.
