Product Details
- For 9/16" (13.52 mm) Laminated Tempered Glass (6 x 1.52 x 6 mm)
- Designed and Engineered for 2015 IBC Code Changes
- 30% Lighter Than Industry Standard Base Shoe
- Meets and Exceeds 200lb Load With a 4x Safety Factor
- CRL Recommends Consulting with the Glass Fabricator Prior to Wet Setting Laminated Tempered Glass
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3842

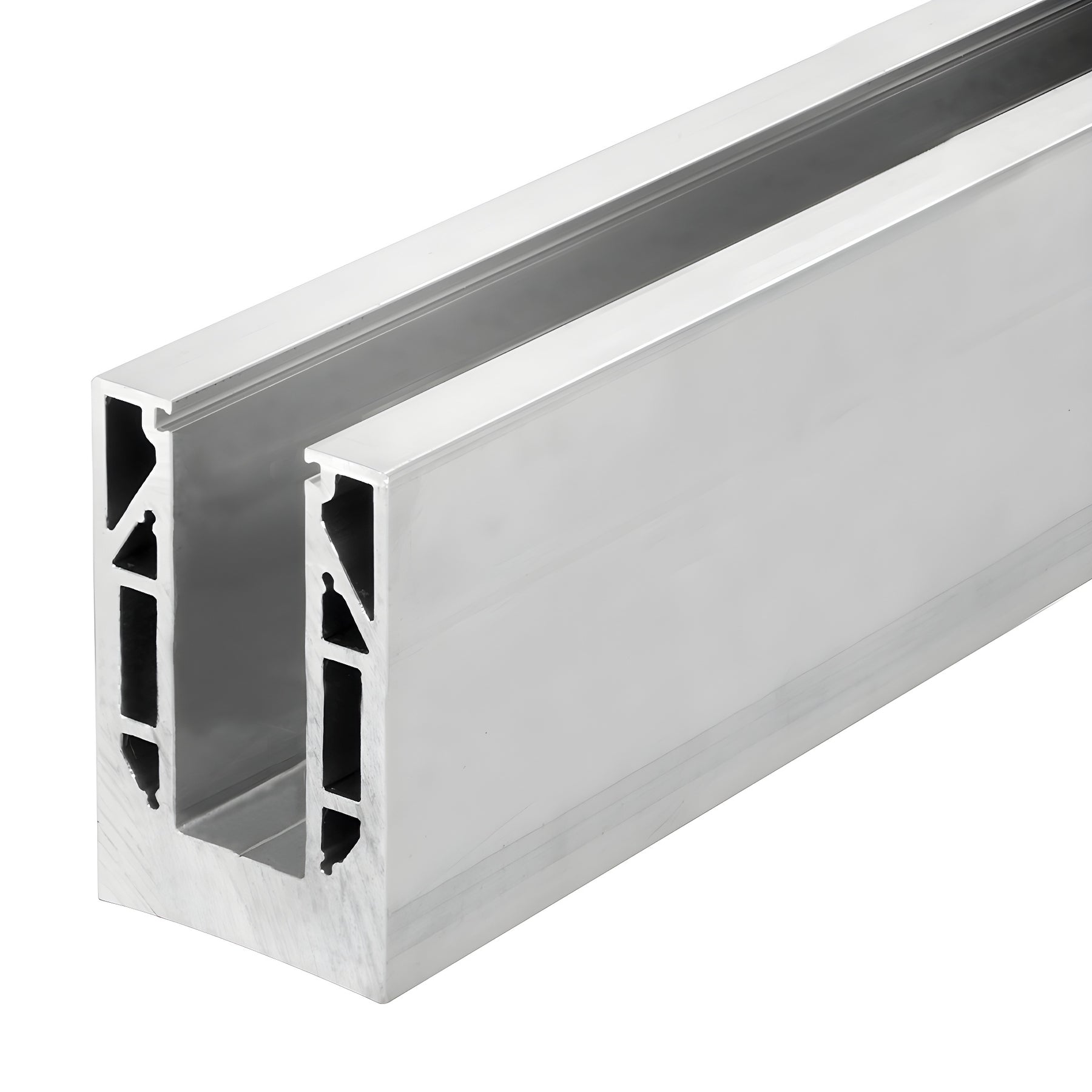

This CRL 9BL56D Series Square Base Shoe is the same profile as our standard L56S Series, but it is 30% lighter, which means it is more price competitive, environmentally friendly, and will reduce your shipping costs. Designed to work with CRL's patented TAPER-LOC® System, 9BL can be easily cut to the required length using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting.
GLASS SPECIFICATIONS:
For use with 9/16" (13.52 mm) Laminated Tempered Glass (6 mm x 1.52 mm x 6 mm)
Thickness Range: 0.497" (12.62 mm) to 0.549" (13.94 mm)
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
