Product Details
- For 13/16" (20.64 mm) Laminated Tempered Glass (10 x 1.52 x 10 mm)
- Designed and Engineered for 2015 IBC Code Changes

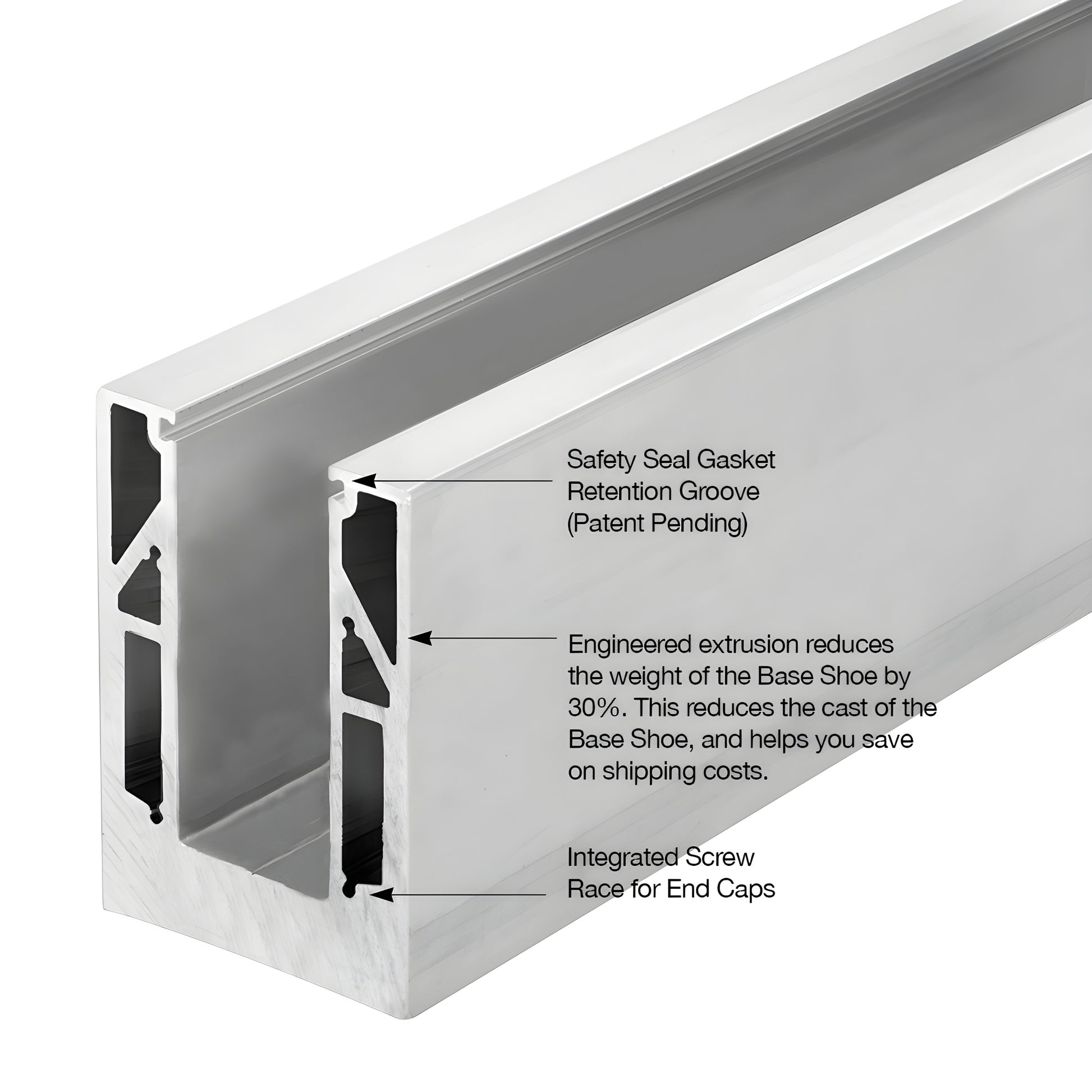

- 30% Lighter Than Industry Standard Base Shoe
- Meets and Exceeds 200 Pound Load with a 4x Safety Factor
- CRL Recommends Consulting with the Glass Fabricator Prior to Wet Setting Laminated Tempered Glass
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3842

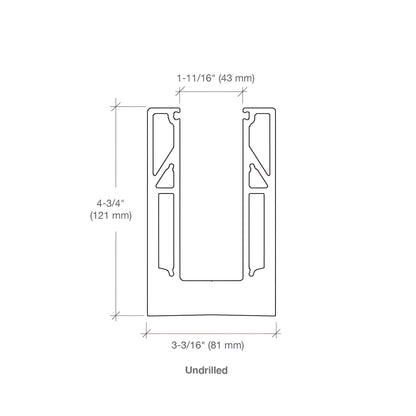

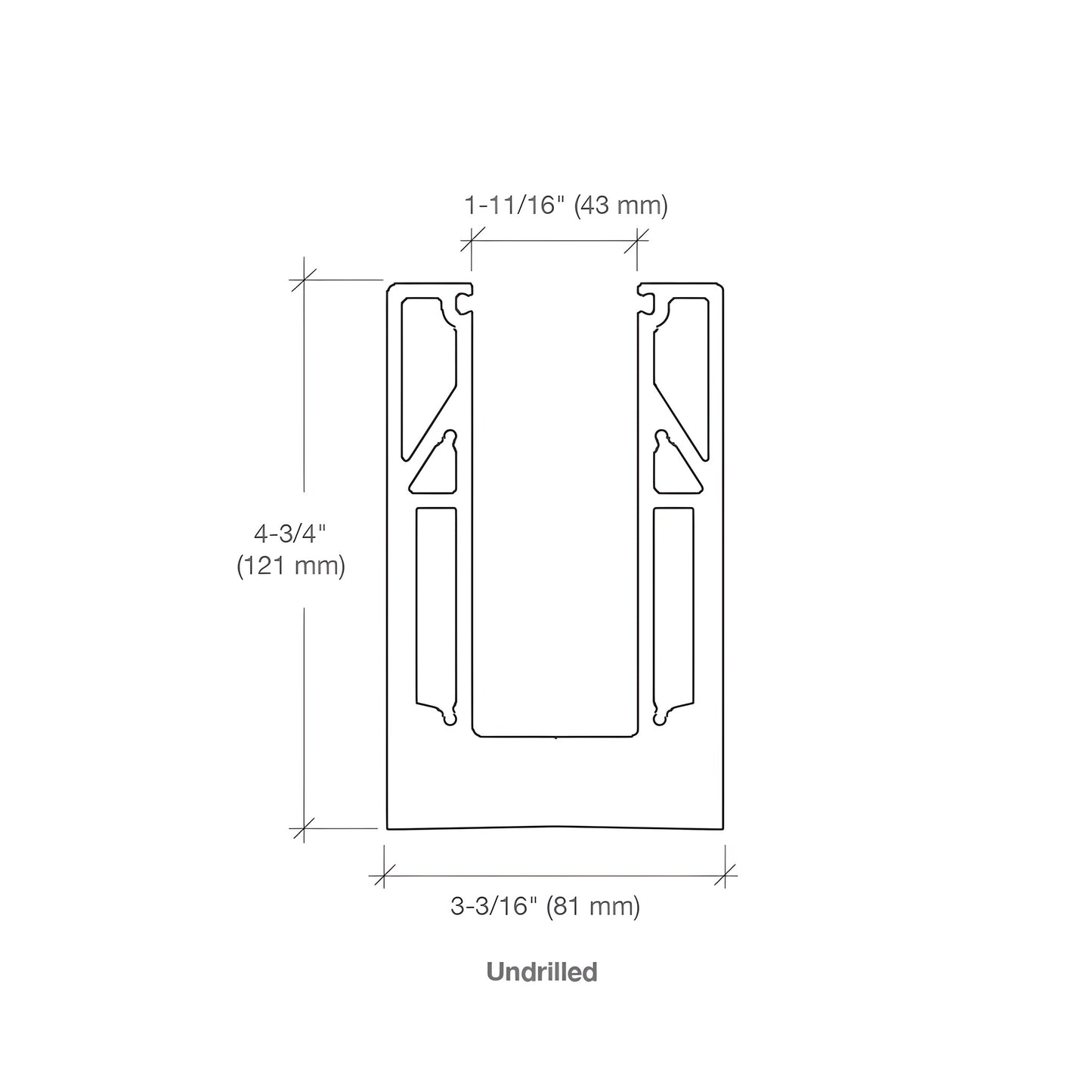

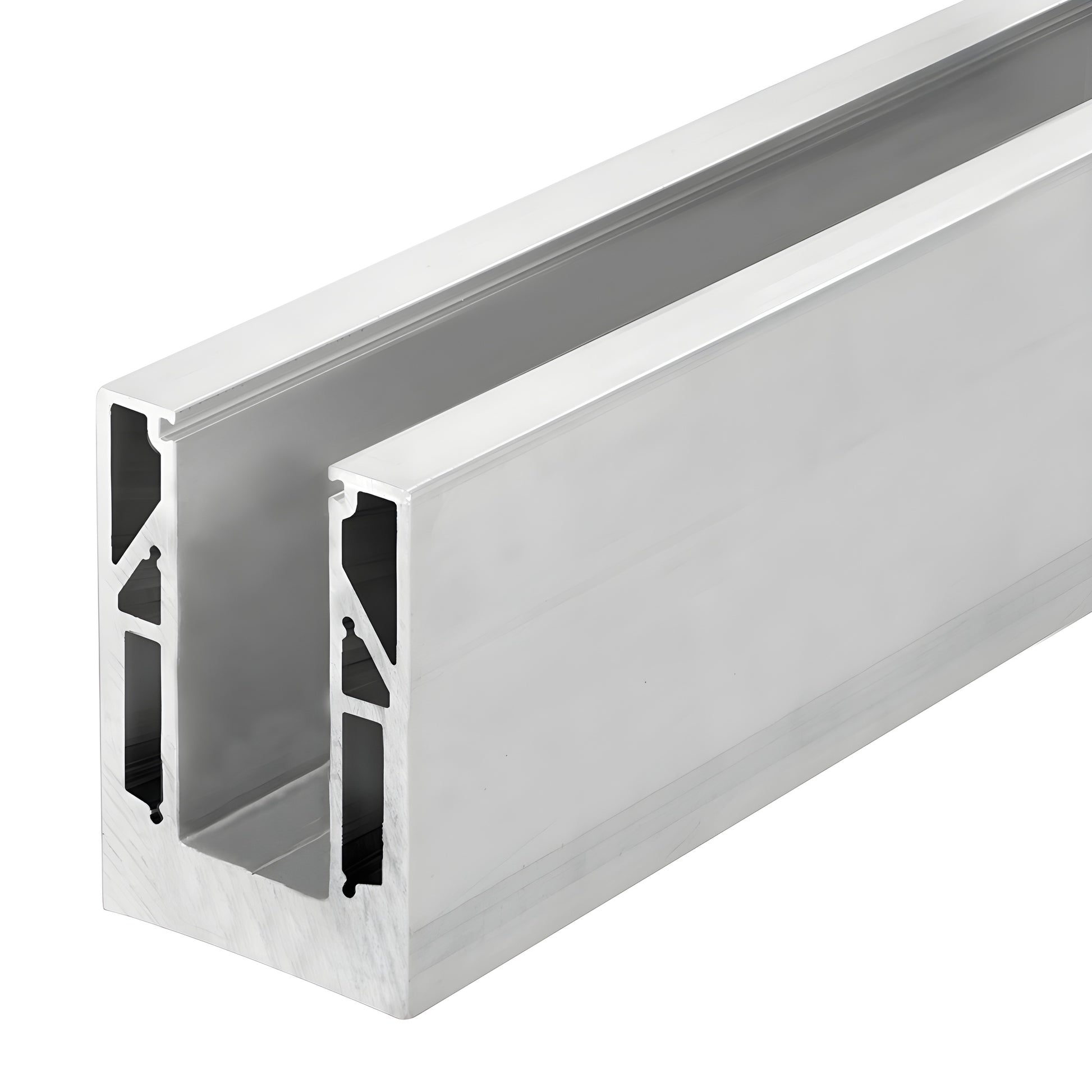

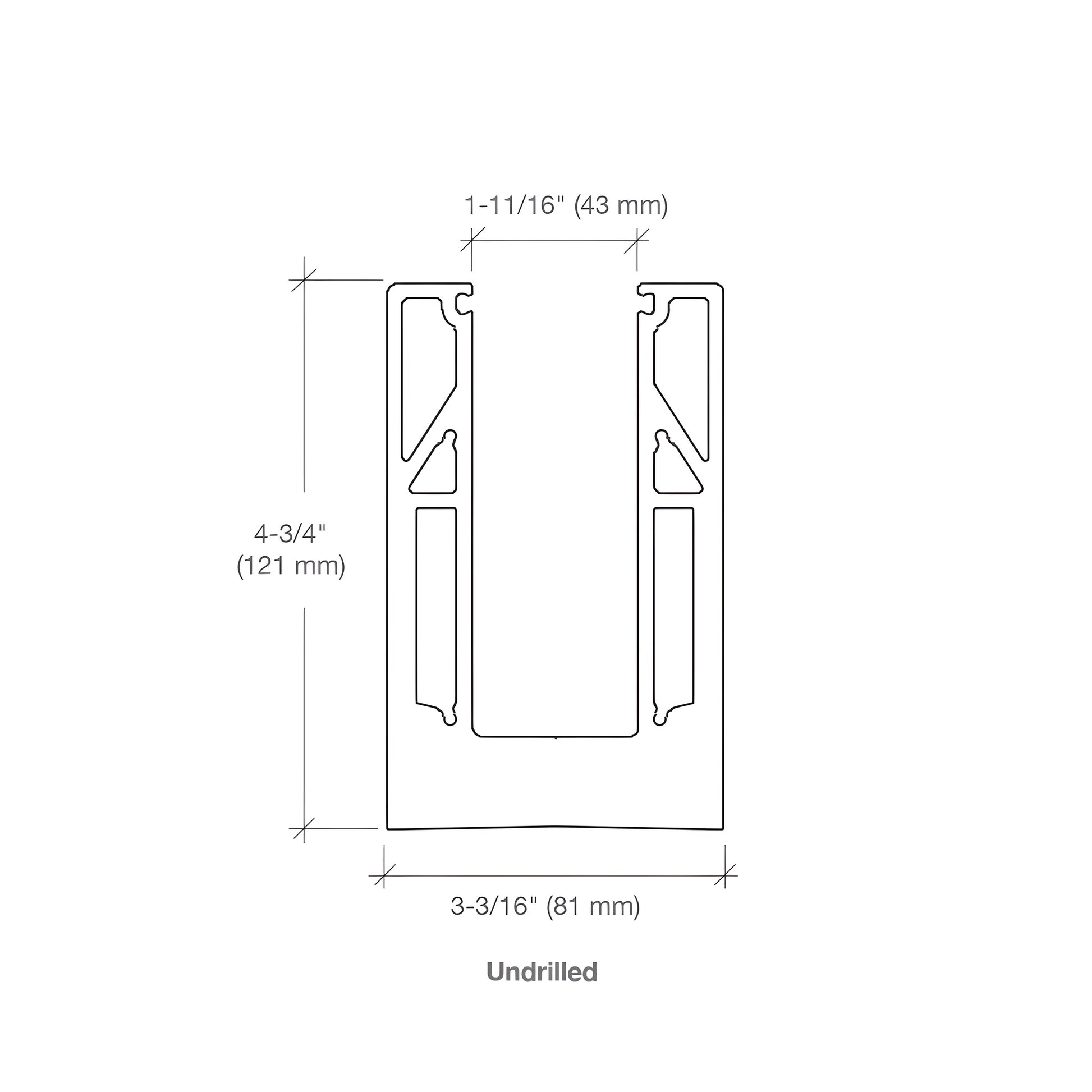

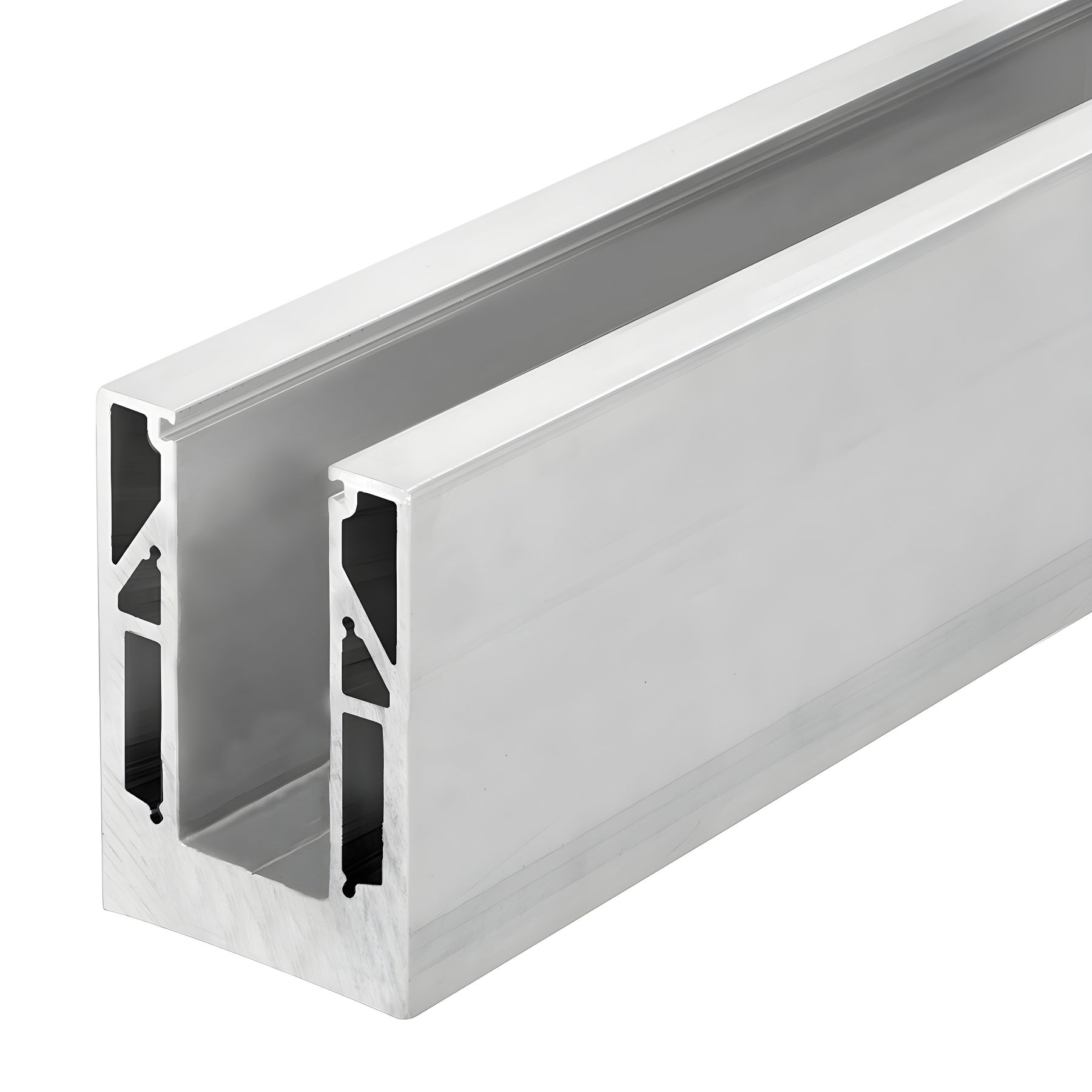

This CRL 9BL21 Series Square Base Shoe is the same profile as our standard L21S Series, but it is 30% lighter, which means it is more price competitive, environmentally friendly, and will reduce your shipping costs. Designed to work with CRL's patented TAPER-LOC® System, 9BL can be easily cut to the required length using a chop saw with a minimum 10" (254 mm) diameter blade for aluminum cutting.
GLASS SPECIFICATION:
For use with 13/16" (20.64 mm) Laminated Tempered Glass (10 x 1.52 x 10 mm)
Thickness Range: .803" to .903" (20.4 to 22.9 mm) Will work with ASTM 7/8" Monolithic Tempered Glass Will Not Accommodate the Full ASTM Thickness Range for 13/16" Glass
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
