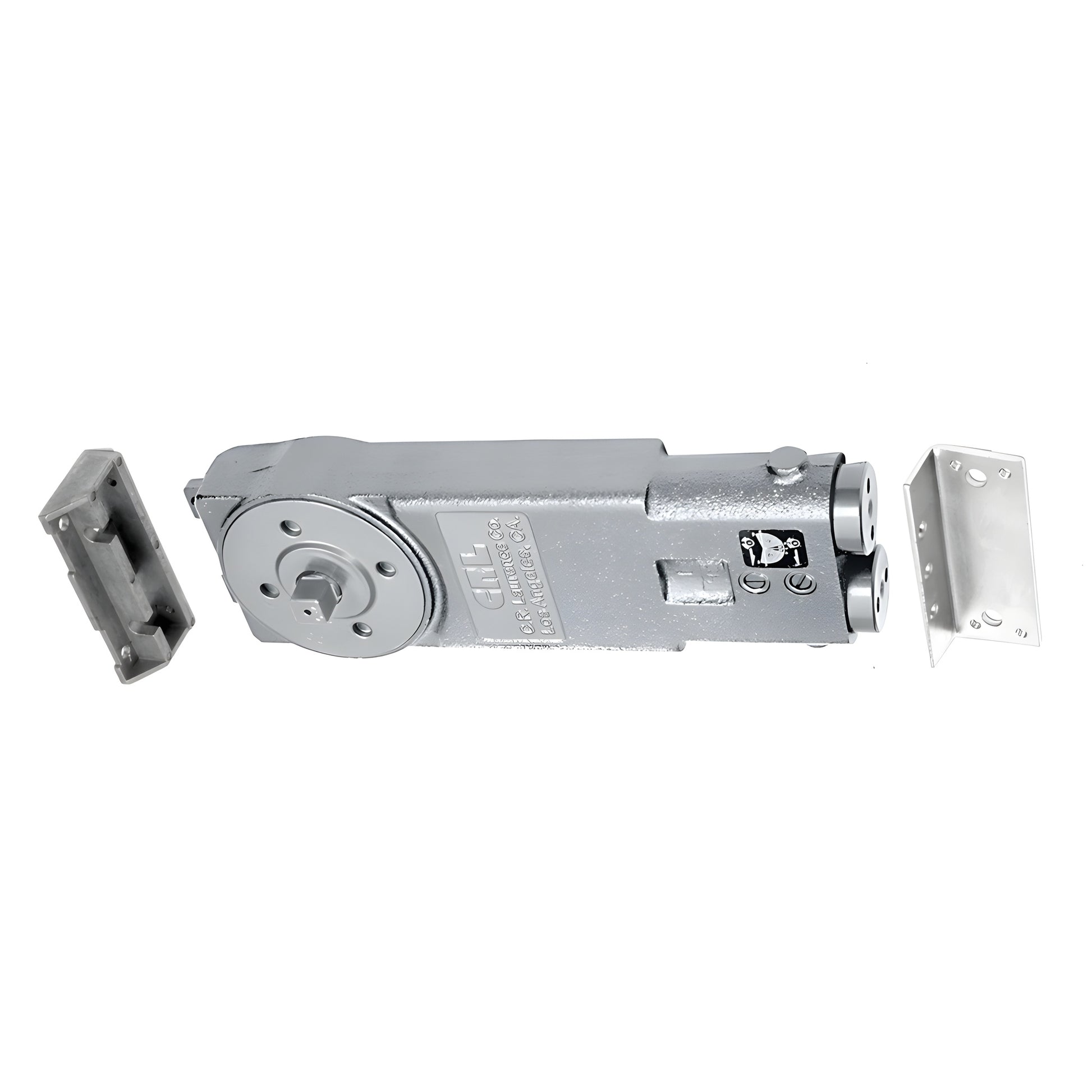

CRL A.D.A. 5 lb Concealed Overhead ADA Door Closer Body Only 105° No-Hold-Open

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

There are two main advantages to buying our Door Closer Bodies with Mounting Clips (SKU: CRL6872). First, when replacing a worn-out door closer you save money by reusing existing arms and pivots instead of buying a full new unit. Second, the modular approach lets you build a custom door closer package by adding only the necessary accessory parts (pivots, arms, etc.) for the job. Each door closer body ships with mounting clips, templates, and step-by-step instructions for fast installation.

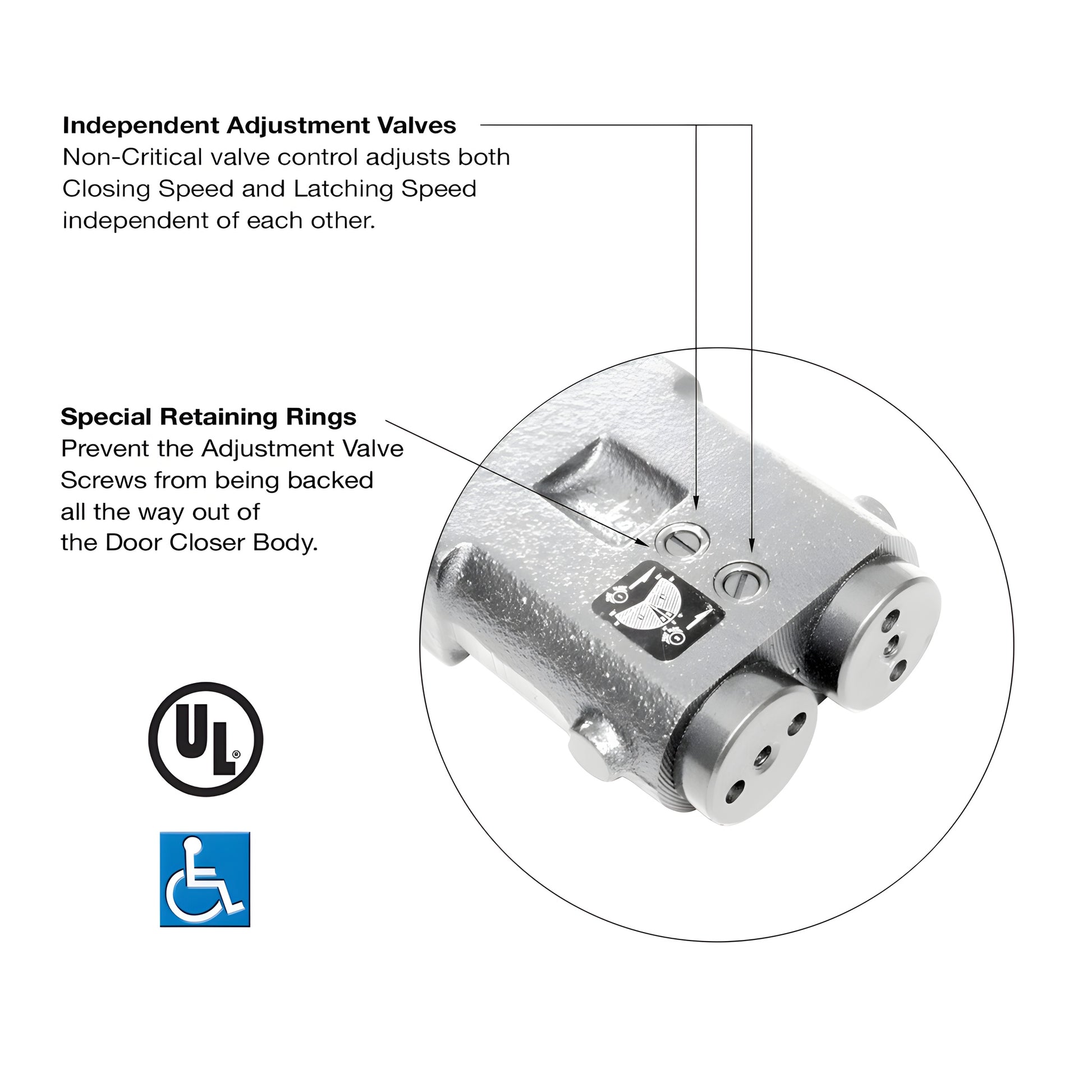

Independent Adjustment Valves
Non-critical valve control lets you adjust Closing Speed and Latching Speed independently for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing completely out of the door closer body for increased durability and easier maintenance.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage to the closer and entryway from over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

NOTE: Although A.D.A. Series door closers comply with A.D.A. specified opening forces, they may not provide adequate spring power to control and close larger doors or in challenging site conditions.

Product Warning:

Closers adjusted to meet A.D.A. specified opening forces might not have sufficient spring power to reliably close the door under all site conditions and door sizes. Use auxiliary stops and verify performance after installation.

Why choose CRL door closer bodies (SKU: CRL6872)? Save cost on replacements, customize accessories for the exact job, and rely on built-in features like independent valve adjustment and retaining rings for easier field service. Order now
