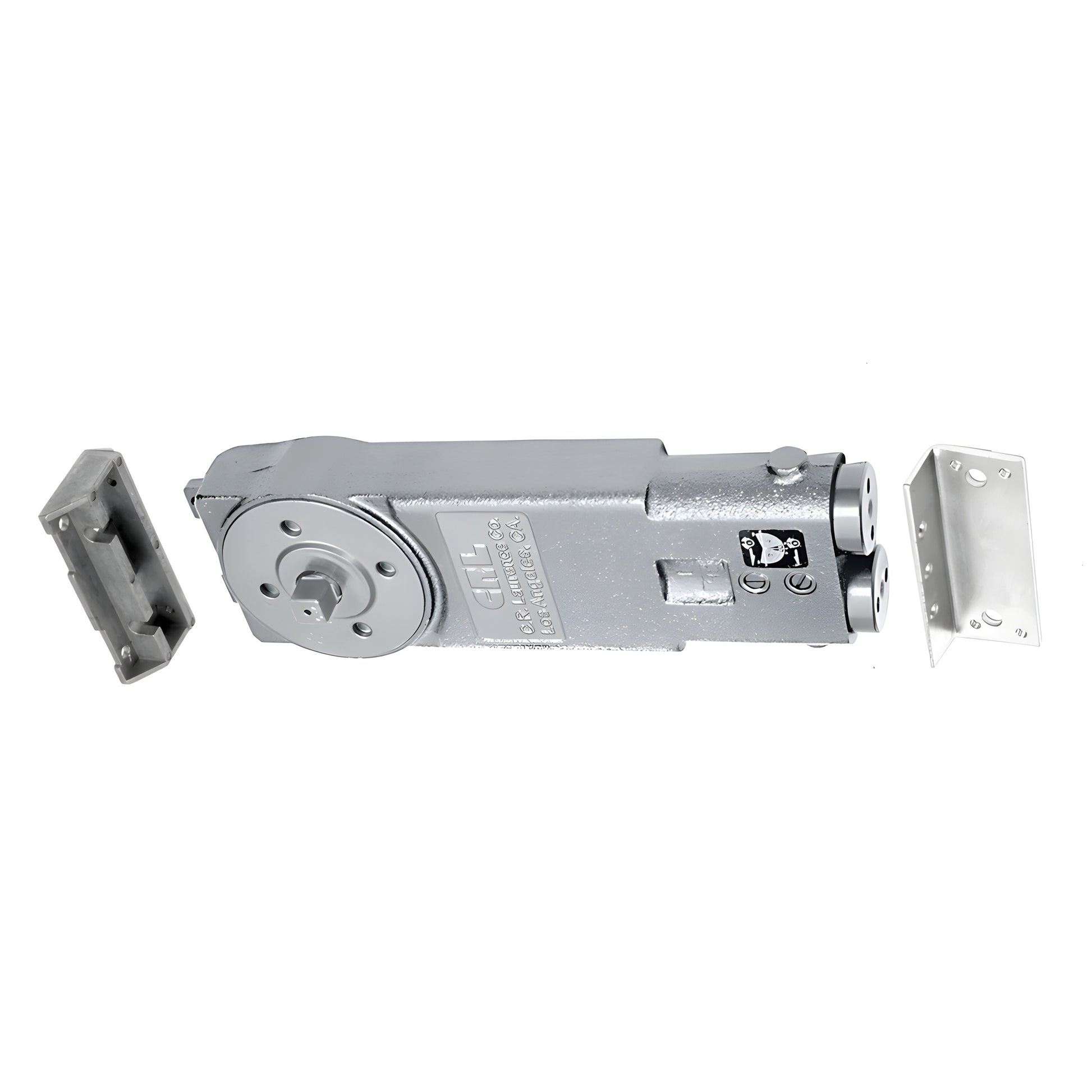

CRL A.D.A. 5 lb 90° Overhead Concealed Hold-Open Door Closer Body

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

Our Door Closer Bodies with Mounting Clips (SKU: CRL6860) are ideal for contractors and maintenance teams who need a cost-effective replacement overhead concealed door closer body or a modular solution to build a custom closer package. Buy the door closer body alone to replace worn units and save on unnecessary hardware, or add accessories—pivots, arms, and more—to create the exact concealed door closer assembly you require. Each unit ships with mounting clips, templates, and clear installation instructions for fast retrofit or new installs.

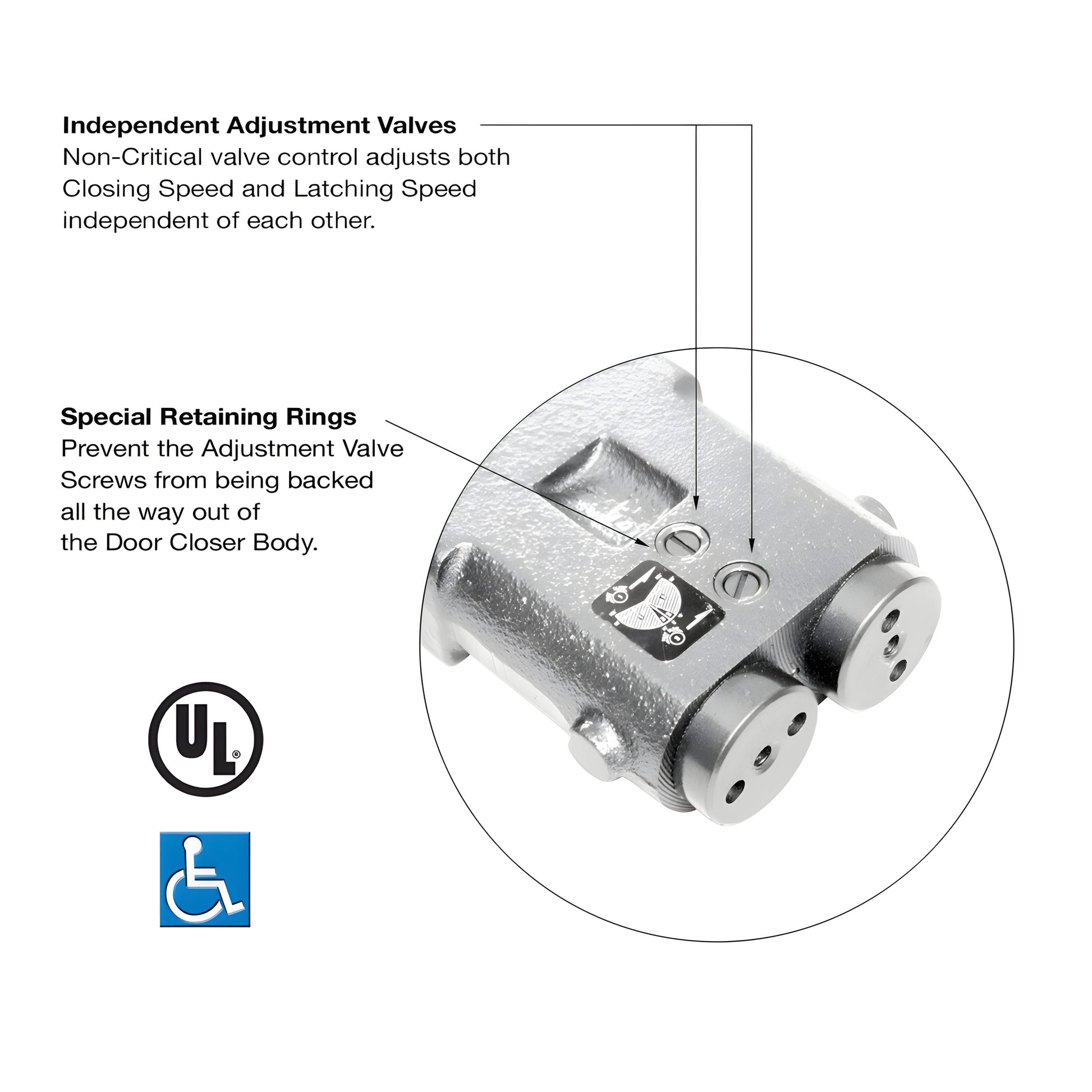

Independent Adjustment Valves
Non-critical valves independently adjust Closing Speed and Latching Speed for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the door closer body, improving service reliability.

NOTE: An auxiliary floor or overhead door stop is recommended to avoid damage from over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

NOTE: Although A.D.A. Series door closers comply with A.D.A. specified opening forces, varying site conditions and door size may affect spring power and closing performance.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Choose CRL6860 for a reliable, interchangeable Jackson®-style overhead concealed door closer body—order now or contact our sales team for assistance selecting compatible pivots and arms.
