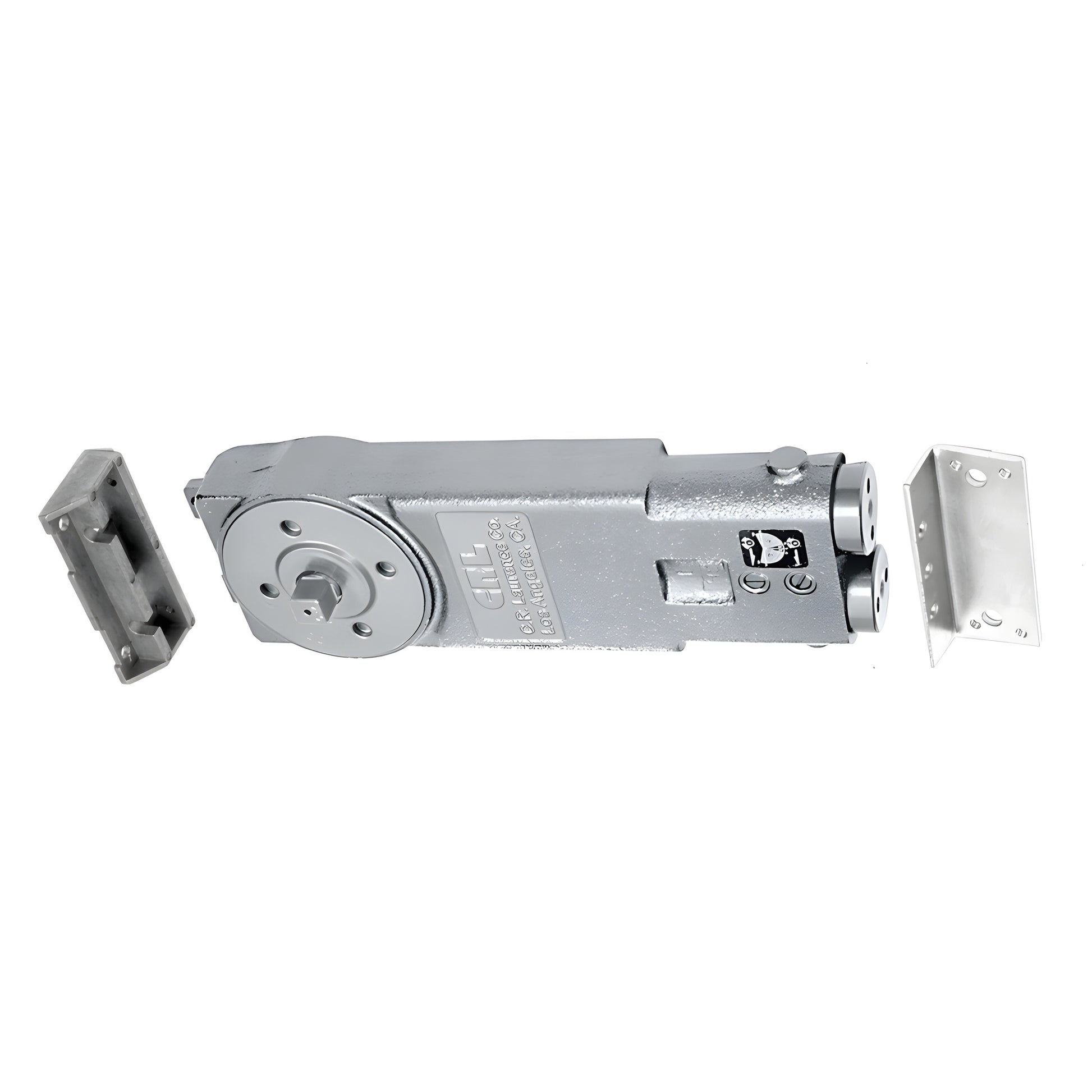

CRL ADA 5 lb 90° Concealed Overhead Closer No Hold-Open Body Only

• Interchangeable with all Jackson®-style overhead concealed door closers
• 20 models available
• Conveniently packaged with templates and instructions
• 5-year limited warranty
• UL Listed

There are two primary advantages to buying our Door Closer Bodies with Mounting Clips (SKU: CRL6862). First, when replacing a worn door closer you avoid buying unnecessary hardware and reduce cost. Second, modular accessories let you build the exact door closer package you need—add pivots, arms, and other parts to create a custom Jackson-style overhead concealed door closer. Each door closer body ships with mounting clips, templates, and installation instructions.

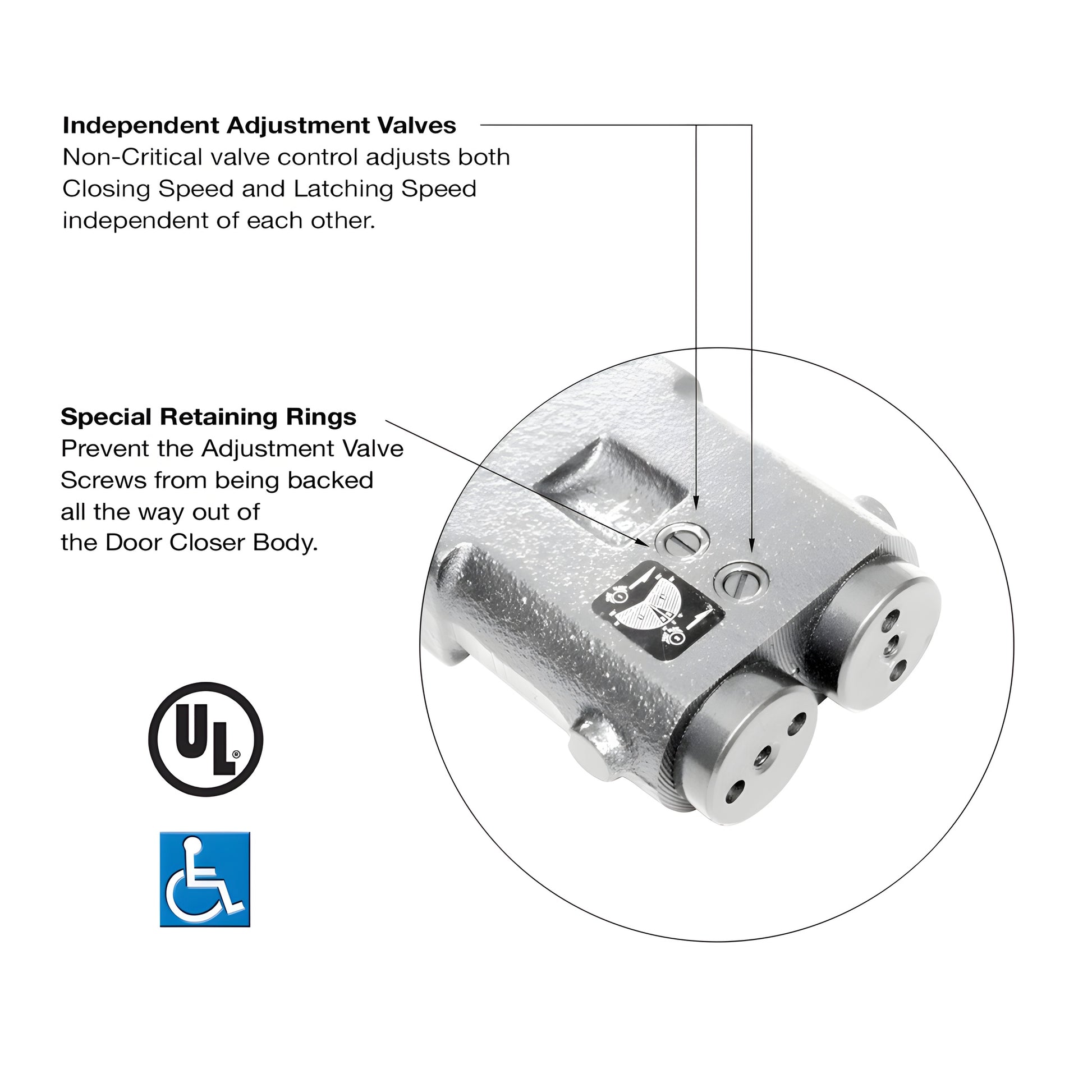

Independent Adjustment Valves
Non-critical valve control adjusts both closing speed and latching speed independently for precise, on-site tuning.

Special Retaining Rings
Prevent adjustment valve screws from being backed out of the door closer body during maintenance or transport.

Installation Note:
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable door swing.

Weight and Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All doors height: 96" (2.44 m)

ADA Compliance Note:
Although A.D.A. series door closers comply with A.D.A. specified opening forces, they may not provide adequate spring power to control and close the door in every site condition or for every door size.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Order replacement door closer bodies (CRL6862) for Jackson®-style overhead concealed closers or contact CRL for help selecting the right model.
