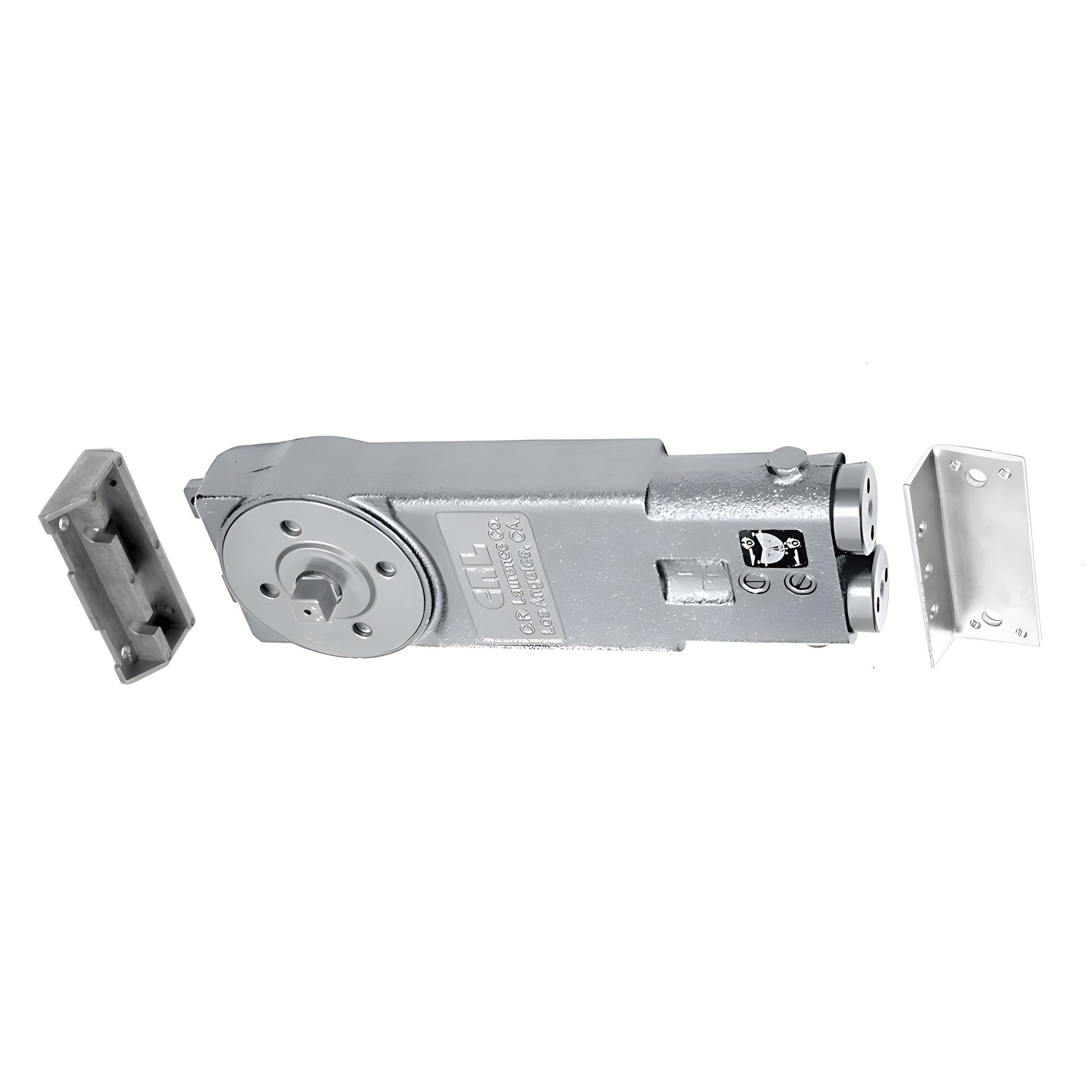

CRL ADA 8.5lb Exterior 105° Overhead Concealed Door Closer Body Only

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available
• Conveniently packaged with mounting clips, templates, and instructions
• 5-year limited warranty
• UL listed

There are two main advantages to buying our Door Closer Bodies with Mounting Clips: replace a worn closer without buying unnecessary hardware, or build a customized Jackson® style overhead concealed door closer by adding only the accessory parts (pivots, arms, etc.) you need. Each closer body ships with mounting clips, templates, and installation instructions for quick replacement or retrofit.

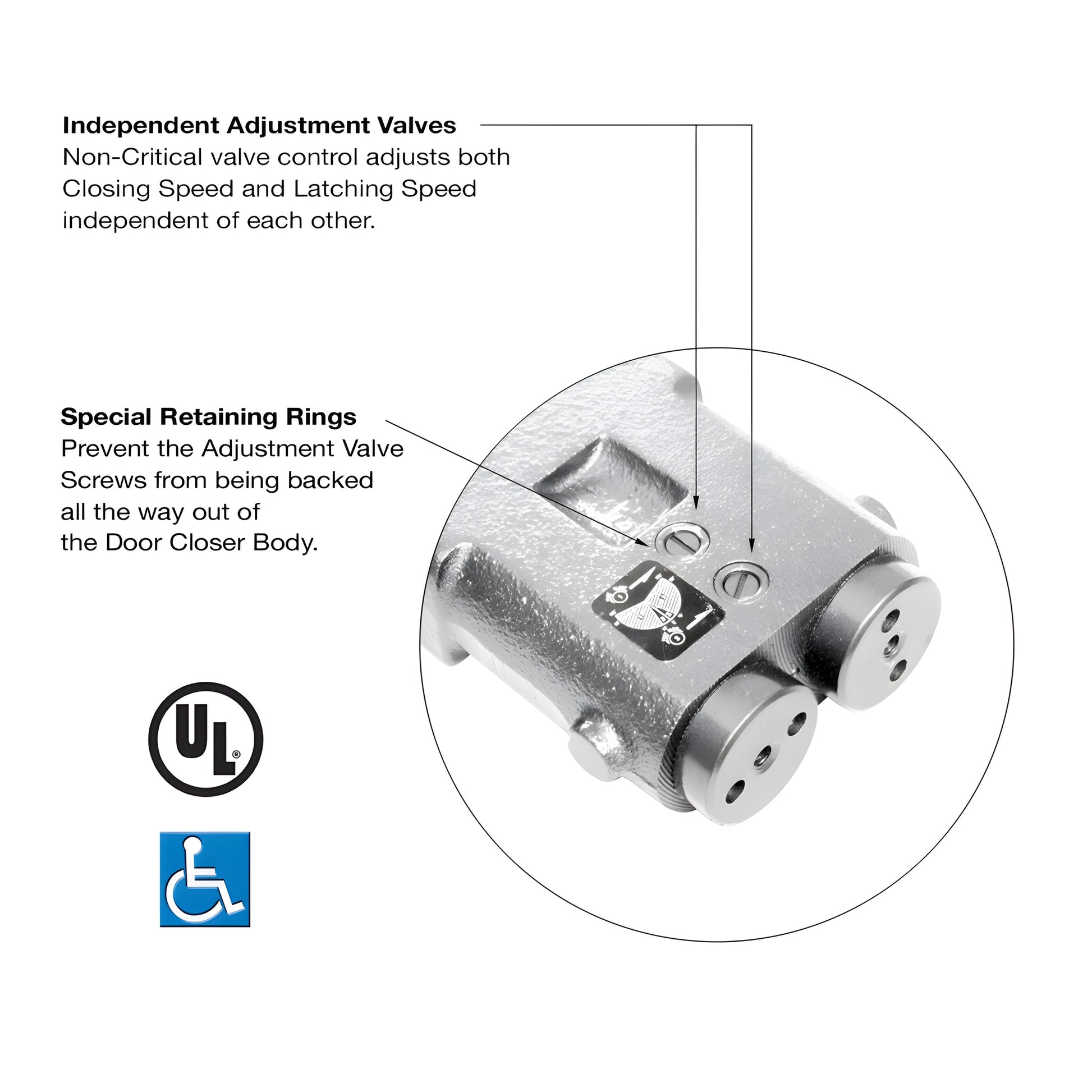

Independent Adjustment Valves
Non-critical valves independently adjust closing speed and latching speed for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed fully out of the closer body, improving reliability.

Door Weight & Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All doors height: 96" (2.44 m)

Safety & ADA Note
An auxiliary floor or overhead door stop is recommended to prevent over-extension of maximum door swing and potential damage. Closers set to comply with ADA-specified opening forces might not provide adequate spring power to control and close larger doors due to varying site conditions—verify suitability for your application.

Product Warning
Closers adjusted to ADA opening-force limits may not have sufficient spring power to reliably close the door in all conditions.

SKU: CRL6972 — Replace or customize Jackson® style overhead concealed door closers with our door closer bodies and mounting clips. Shop now to find the exact model and accessories you need.
