CRL ADA 8.5 lb Overhead Concealed Closer 105° Hold-Open 3/4" Spindle

CRL ADA 8.5 lb Overhead Concealed Closer 105° Hold-Open 3/4" Spindle

Regular price $156.20 CAD
Regular price Sale price $156.20 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# CRL9970
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Hold Open
105°
Includes
CRL8010FS
Maximum Door Weight
200
Maximum Door Width - Exterior
36 Inches
Maximum Door Width - Interior
36 Inches
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
Spring Size
8.5
UL Listed
Yes

Overview

  • Interchangeable with All Jackson® Style Overhead Concealed Door Closers
  • Extended 3/4" (19 mm) Long Spindle for Use with Patch Fittings and Door Rail Hardware
  • New Adjustable Models
  • UL Listed
  • Conveniently Packaged with Templates and Instructions

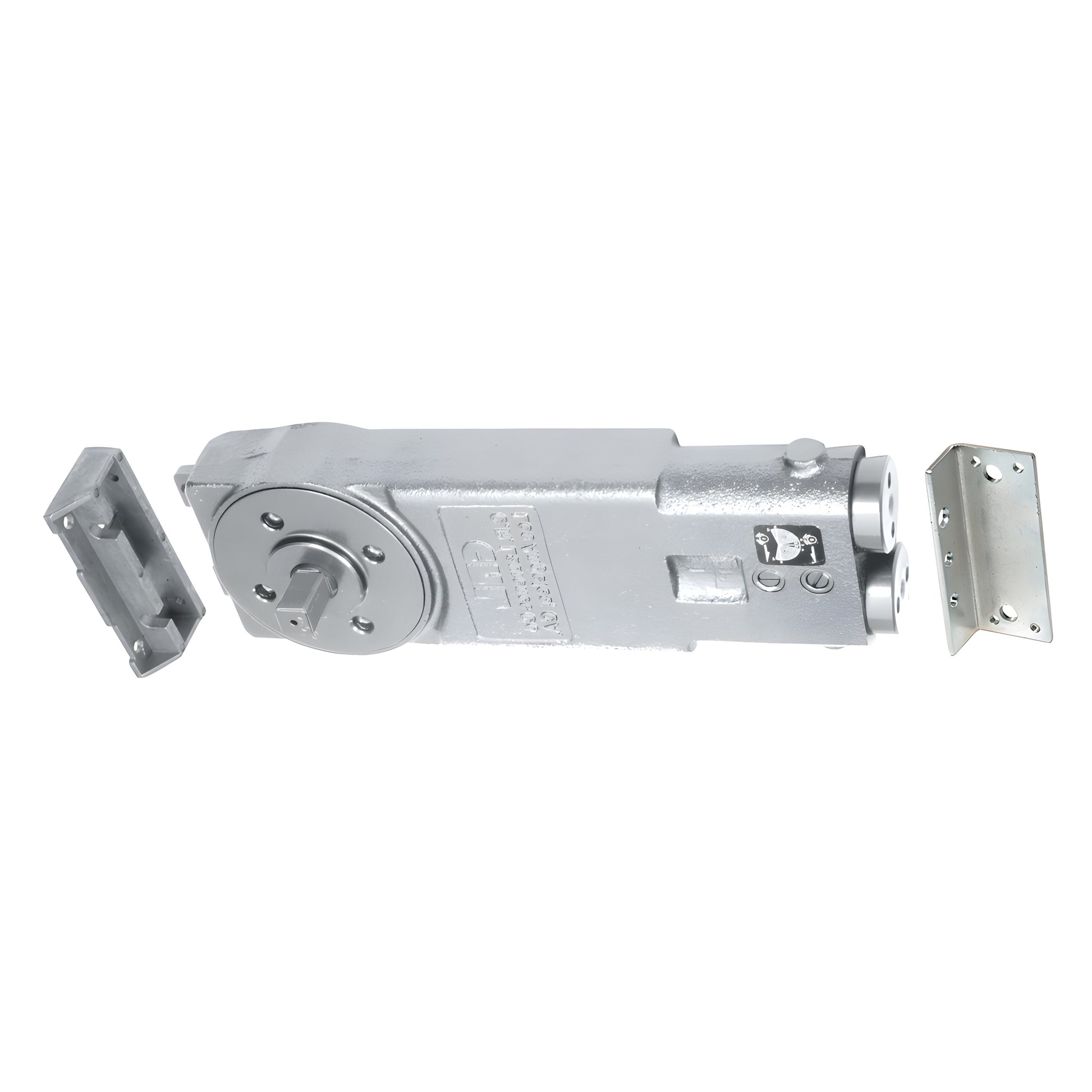

CRL Overhead Concealed Closer for Patch Fittings and Door Rails (SKU: CRL9970) is an A.D.A. compliant overhead concealed door closer rated at 8.5 lb. opening force for exterior doors. Designed for patch hardware and door rails, it features an extended 3/4" (19 mm) spindle and dual-action valves (separate closing and latching controls) for precise closing performance. Available in 90° and 105° hold-open or no-hold-open models. Mounting clips, templates, and installation instructions are included.


NOTE: While this A.D.A. series closer meets A.D.A. opening force requirements, site conditions and door size may affect its ability to fully control and close the door.

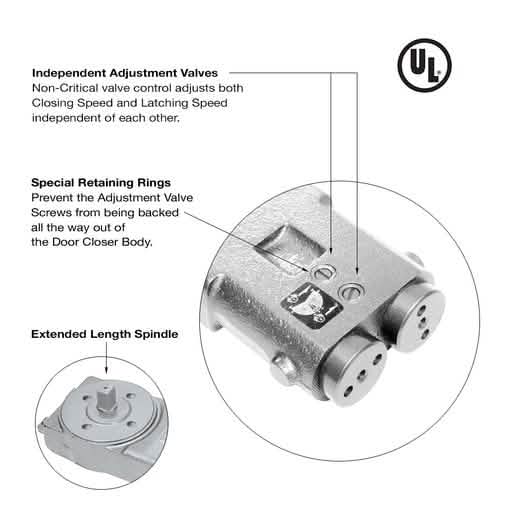

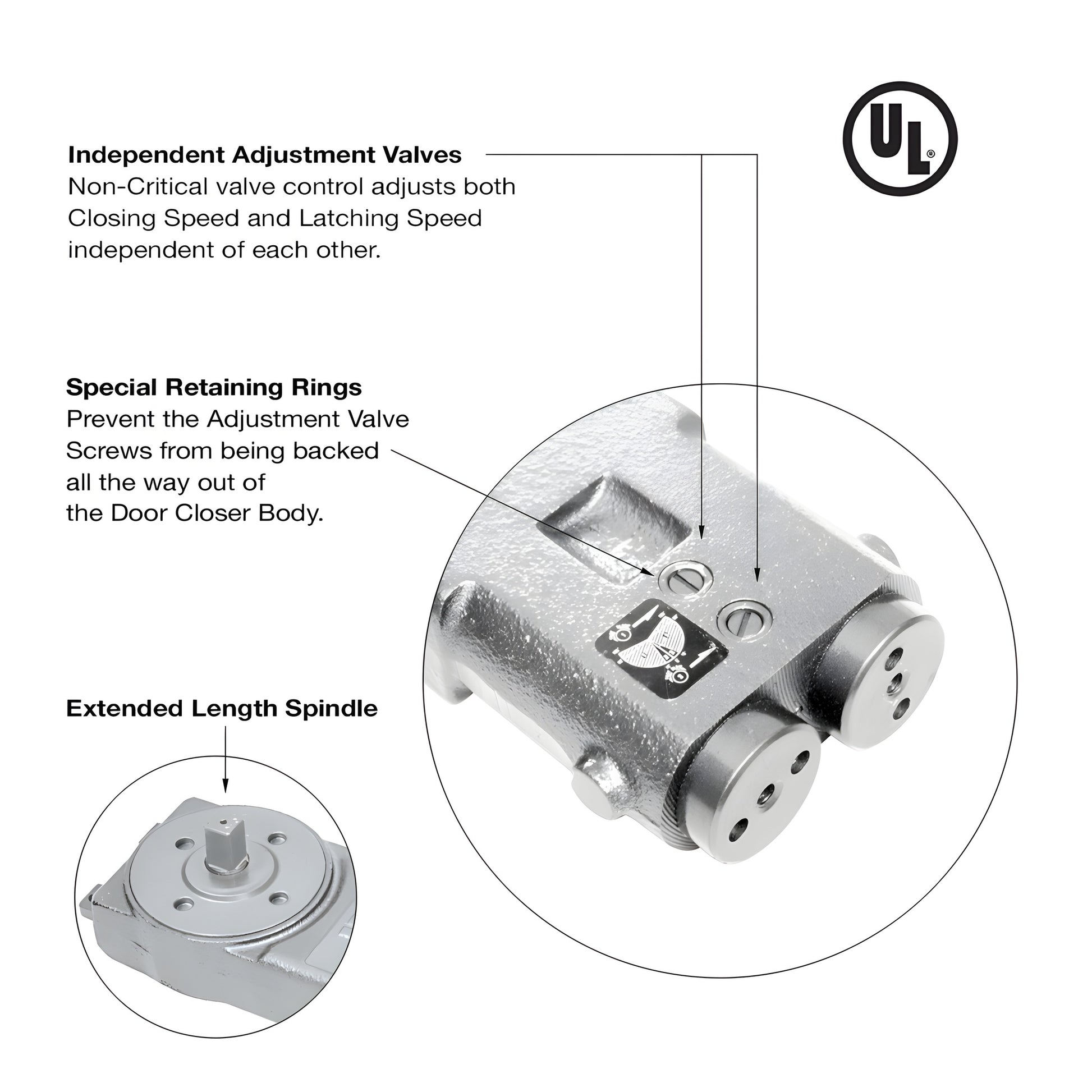

Extended Length Spindle
3/4" (19 mm) spindle provides extra reach for patch fittings, door rail hardware, or other applications requiring a longer spindle.


Independent Adjustment Valves
Non-critical valve controls allow independent adjustment of Closing Speed and Latching Speed for reliable, fine-tuned operation.


Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed completely out of the closer body, improving durability and serviceability.


Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)


Product Warning:
This closer is not to be used for doors weighing in excess of 200 Lbs. (91 kg) or wider than 36" (914 mm).

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are the actual product or a close representation; colors may vary by monitor settings.


Order CRL9970 now for a reliable, ADA-compliant overhead concealed door closer optimized for patch fittings and door rails.
