Product Details
- For Use with Mortise and Cylindrical Latch with 3/4" (19 mm) Projection
- Field Convertible from Fail-Secure to Fail-Safe
- UL Listed for Burglary Resistance

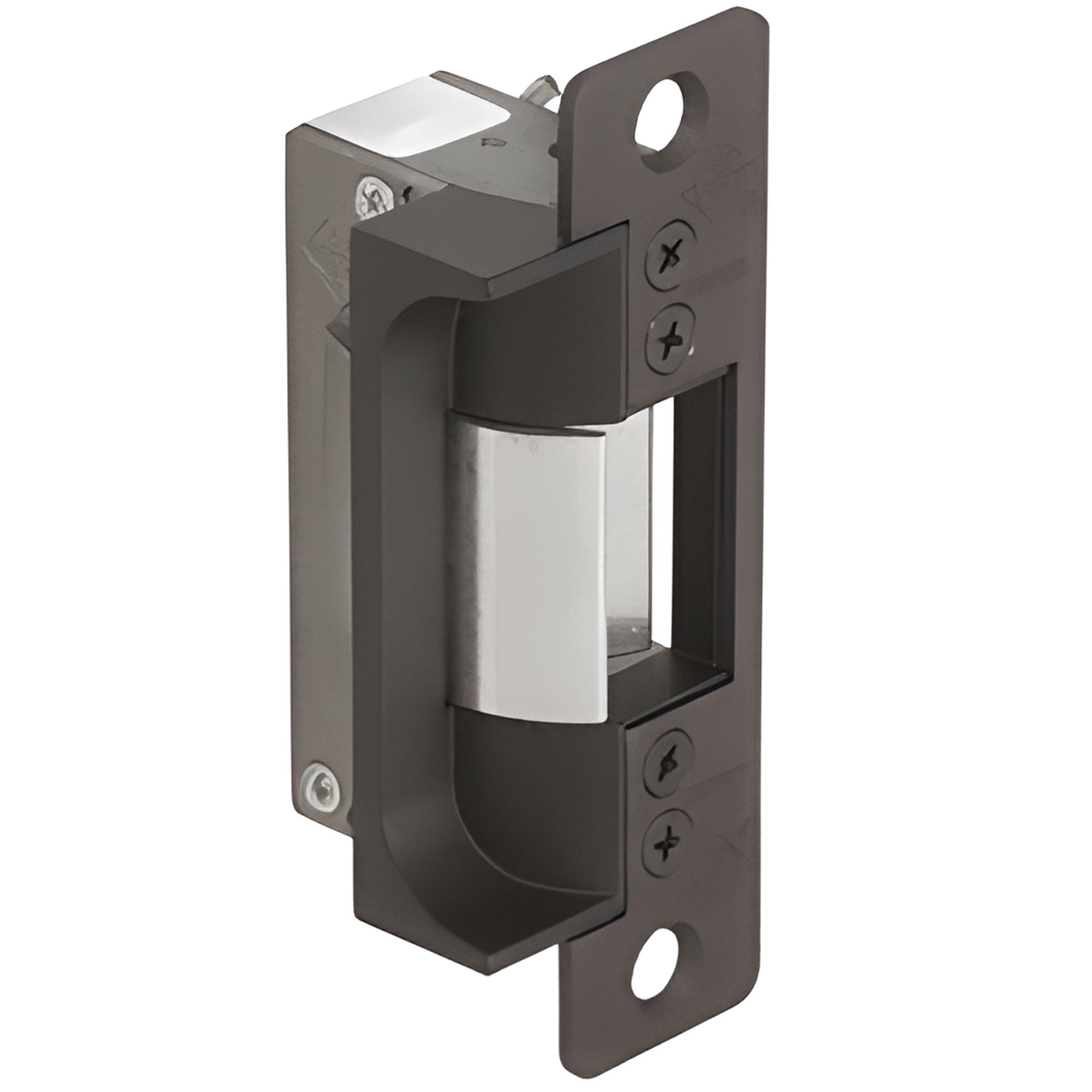

This Adams Rite® 7160 Electric Strike provides for remote electrical actuation to unlock the strike jaw and release the latch bolt for entry without operating the latch. The mortised strike is intended for use with mortise and cylindrical latches with 3/4" (19 mm) projection without deadbolt latches. The standard strike is supplied in fail-secure mode, but is field convertible to fail-safe.
SPECIFICATIONS:
Input: 24 Volts DC
Current Draw: 170mA
Dimensions: Faceplate - Flat = 1-1/4" x 4-7/8" (32 x 124 mm), Case: 1" x 3-3/8" x 1-7/8" (25 x 86 x 48 mm), Strike Opening: 3/4" x 1-7/16" x 5/8" (19 x 37 x 16 mm)
Shipped as Fail-Secure Lock: Requires Power to Unlock. Field Convertible to Fail-Safe Mode.
