CRL

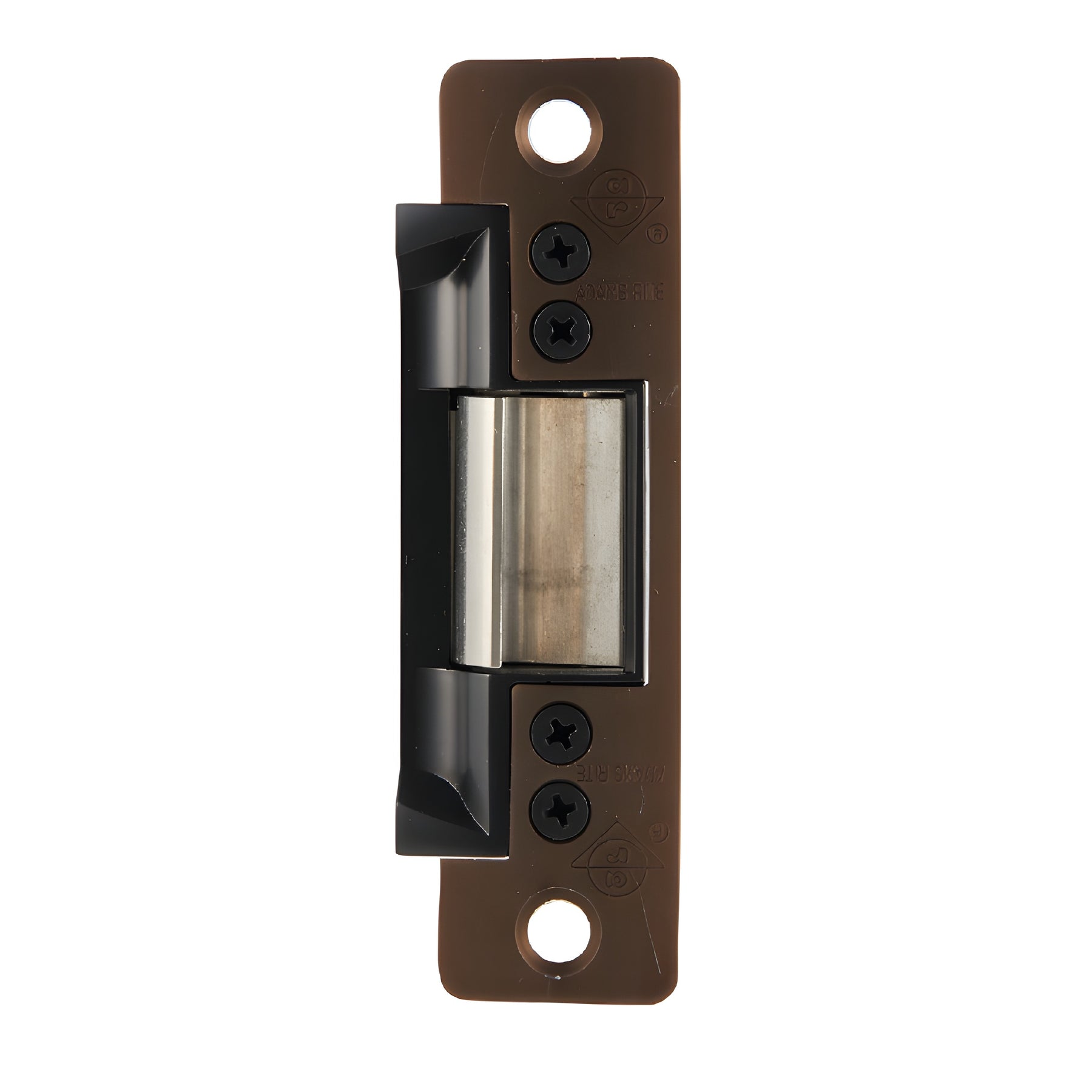

24V AC Electric Strike CRL Adams Rite® 7101 Series Dark Bronze
Item# DH02022
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Case Depth
1-5/8
Case Height
3-3/8
Case Width
1
Certification
UL 1034 Burglary-Resistant, UL 294 ( 6th Edition ), ANSI/BHMA A156.31, Grade 1
Face Plate Height
4-7/8
Face Plate Width
1-1/4
Faceplate Style
Radiused to match noseon inactive leaf in a pairof narrow stile doors
Finish/Color
Dark Bronze Anodized
Handing
Non Handed
Holding Force
1500
Includes
Mounting Hardware and instructions
Input
24 Volts AC
Material
Aluminum
Projection
1/2 To 5/8 Inch (latchbolt)
Recommended Door Type
Aluminum, Hollow Metal, Wood
Series
7101
Strike Opening
5/8" x 1-7/16" x 1/2" deep
Type
Electric Strike
UL Listed
Yes
- For use with Adams Rite deadlatches and cylindrical locks (latchbolt projection 1/2"–5/8")
- Field‑convertible from fail‑secure to fail‑safe for flexible access control
- UL Listed for burglary resistance — commercial electric strike for secure openings
This Adams Rite® 7101 Electric Strike (SKU: DH02022) enables remote electrical actuation to unlock the strike jaw and release the latch bolt without operating the latch. Designed for Adams Rite deadlatches and cylindrical locksets with 1/2" (12.7 mm) to 5/8" (15.9 mm) latchbolt projection; compatible with Aluminum, Hollow Metal, or Wood frames. Also accommodates 3/4" (19 mm) projection in installations without a deadbolt. The standard unit ships in fail‑secure mode and is easily field‑convertible to fail‑safe for life‑safety or emergency egress requirements.
SPECIFICATIONS
Input: 24 Volts AC
Current Draw: 431 Amps
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Durable, UL‑listed Adams Rite 7101 electric strike for commercial doors — order now to add reliable remote release capability to your access control system.
