Product Details
- Easy unlocking of most MS Deadlocks by approximately 3 lbs ( 1.36 kg) downward force on a 3" (76.2 mm) lever.
- Spring-loaded lever relocks with an upward motion
- Includes mounting hardware and drive pins
- Housing : Aluminum casting 1-3/8" wide x 7-1/2" long x 1" deep (34.9 mm x 190.5 mm x 25.4 mm)
- Lever : 3" (76.2 mm) long aluminum with end-return design offers comfortable grip to lock or unlock
- Indicatitor : LOCKED in red letters; OPEN in green letters appear when bolt is thrown or retracted respectively
- Stop Clearance : Lever Housing projects 11/16" (17.5 mm) forward of cylinder backset centerline. Product Warning Depending on height of door stop and width of door/jamb gap, it may be necessary to modify the stop to clear the housing. For fin type stops, this is easily accomplished. NOTE : not compatible with 7/8" backset locks

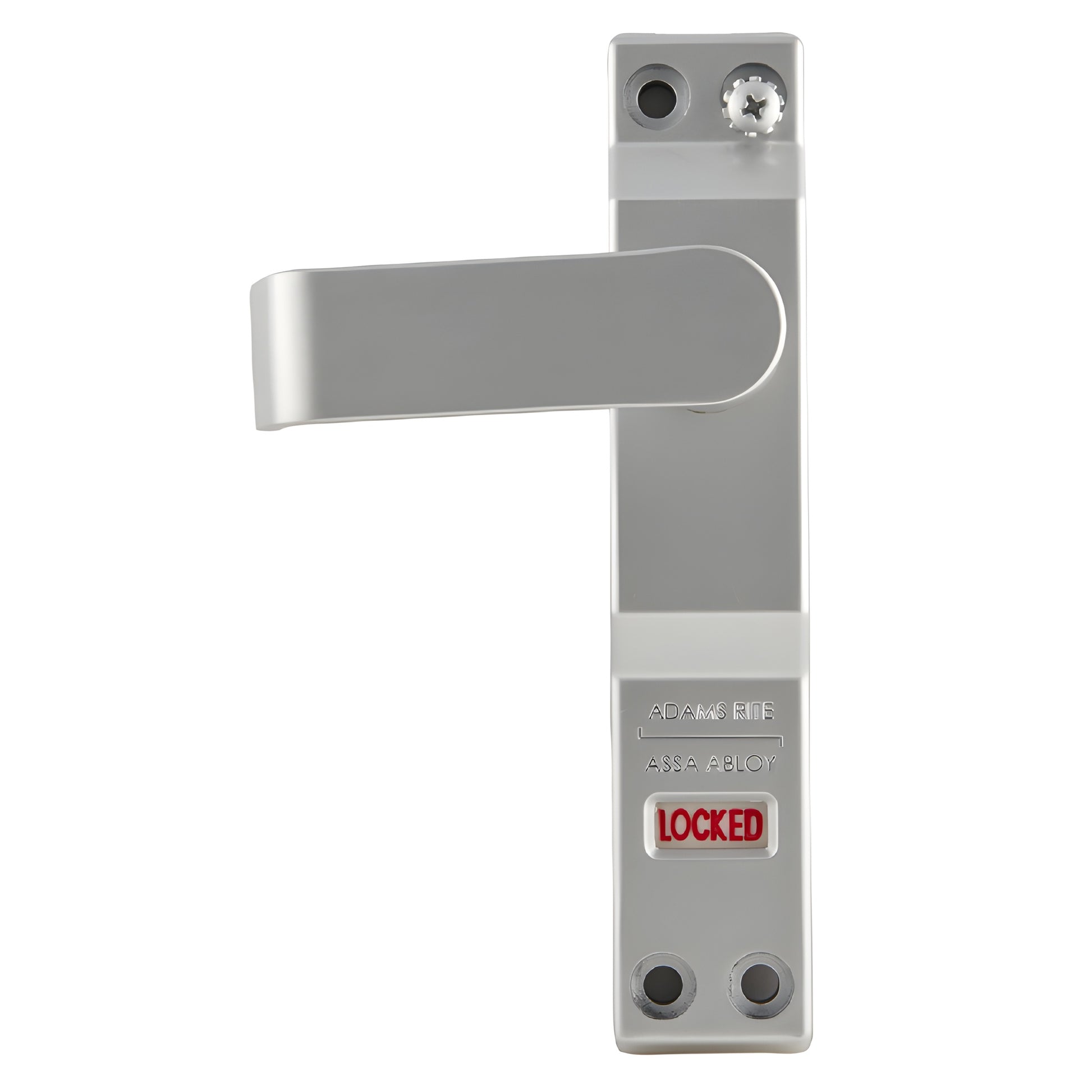

This CRL Adams Rite 4550 MS® Series Deadlock Lever are non handed and reversible. This lever easily unlocks an MS® Deadlock with approximately three pounds of downward force. The spring-loaded lever relocks with an upward motion.
SPECIFICATIONS
Housing : Aluminum casting 1-3/8" wide x 7-1/2" long x 1" deep (34.9 mm x 190.5 mm x 25.4 mm) Lever: 3" (76.2 mm) long aluminum with end-return design offers comfortable grip to lock or unlock Indicatitor: LOCKED in red letters; OPEN in green letters appear when bolt is thrown or retracted respectivelyStop Clearance: Lever Housing projects 11/16" (17.5 mm) forward of cylinder backset centerline.
Product Warning
Depending on height of door stop and width of door/jamb gap, it may be necessary to modify the stop to clear the housing. For fin type stops, this is easily accomplished.
NOTE: not compatible with 7/8" backset locks
