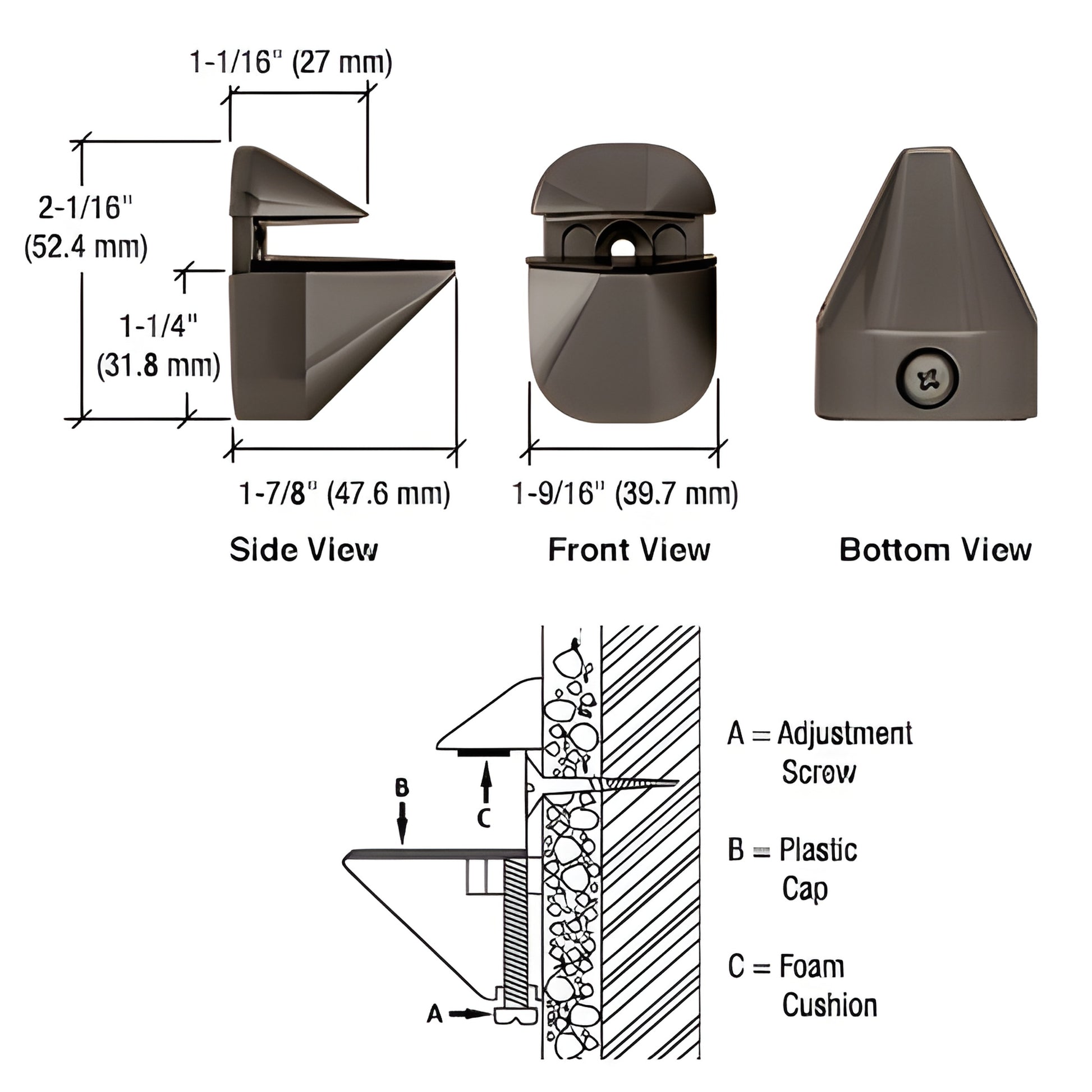

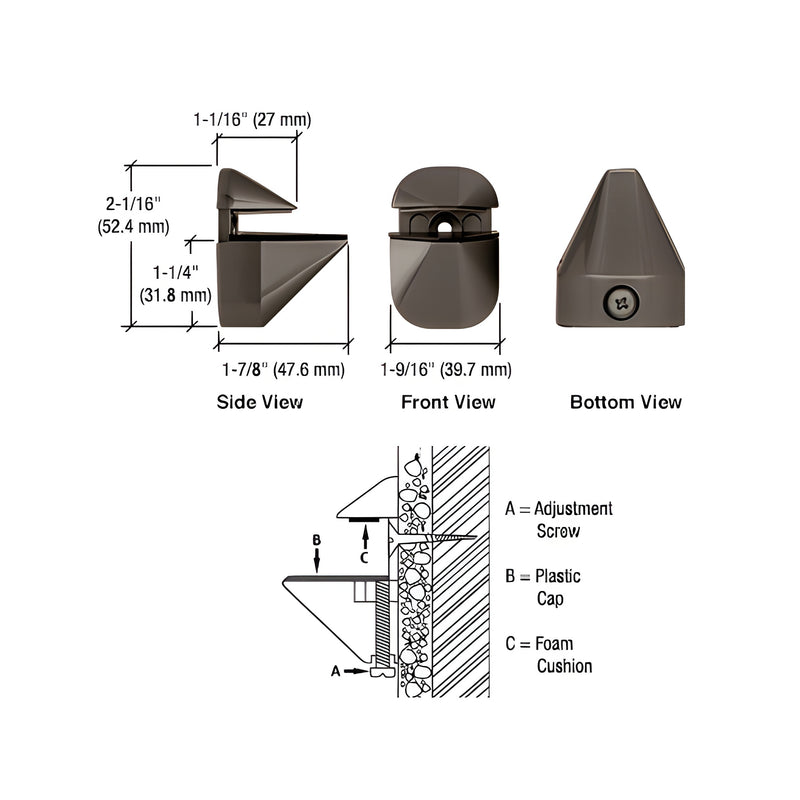

• DL6310RB oil-rubbed bronze adjustable zinc shelf clamp for 3-24 mm glass/wood shelves, side/front/bottom views
1 1

CRL

CRL Adjustable Oil Rubbed Bronze Glass Shelf Clamp

CRL Adjustable Oil Rubbed Bronze Glass Shelf Clamp

$34.53 CAD
$34.53 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DL6310RB
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/8 To 15/16
Height
2-1/16
Material
Zinc
Maximum Shelf Depth
10
Pack Quantity
2
Weight Capacity
44
Width
1-9/16

Overview

  • For glass or wood shelves 1/8" to 15/16" (3 to 24 mm) thick
  • Supports shelves up to 10" (254 mm) protrusion from wall
  • Use with monolithic tempered glass

CRL regular-size adjustable shelf clamps (SKU: DL6310RB) fit 1/8" to 15/16" (3–24 mm) glass or wood shelves up to 10" (254 mm) deep. These adjustable shelf clamps for glass shelves install with a single mounting screw (included) and feature an internal adjustment screw to accommodate varying shelf thicknesses.

Maximum recommended load per correctly installed pair of DL631 clamps is 44 lb (20 kg).

NOTE: Maximum recommended load for two DL661 heavy-duty clamps (correctly installed) is 50 lb (23 kg).

SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No glass fabrication required — ideal for easy installation of tempered glass shelving
Includes: Adjusting screw, mounting screw, foam gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lb (20 kg)

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.
