CRL Adjustable 105° Concealed Overhead Door Closer, No Hold Open

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

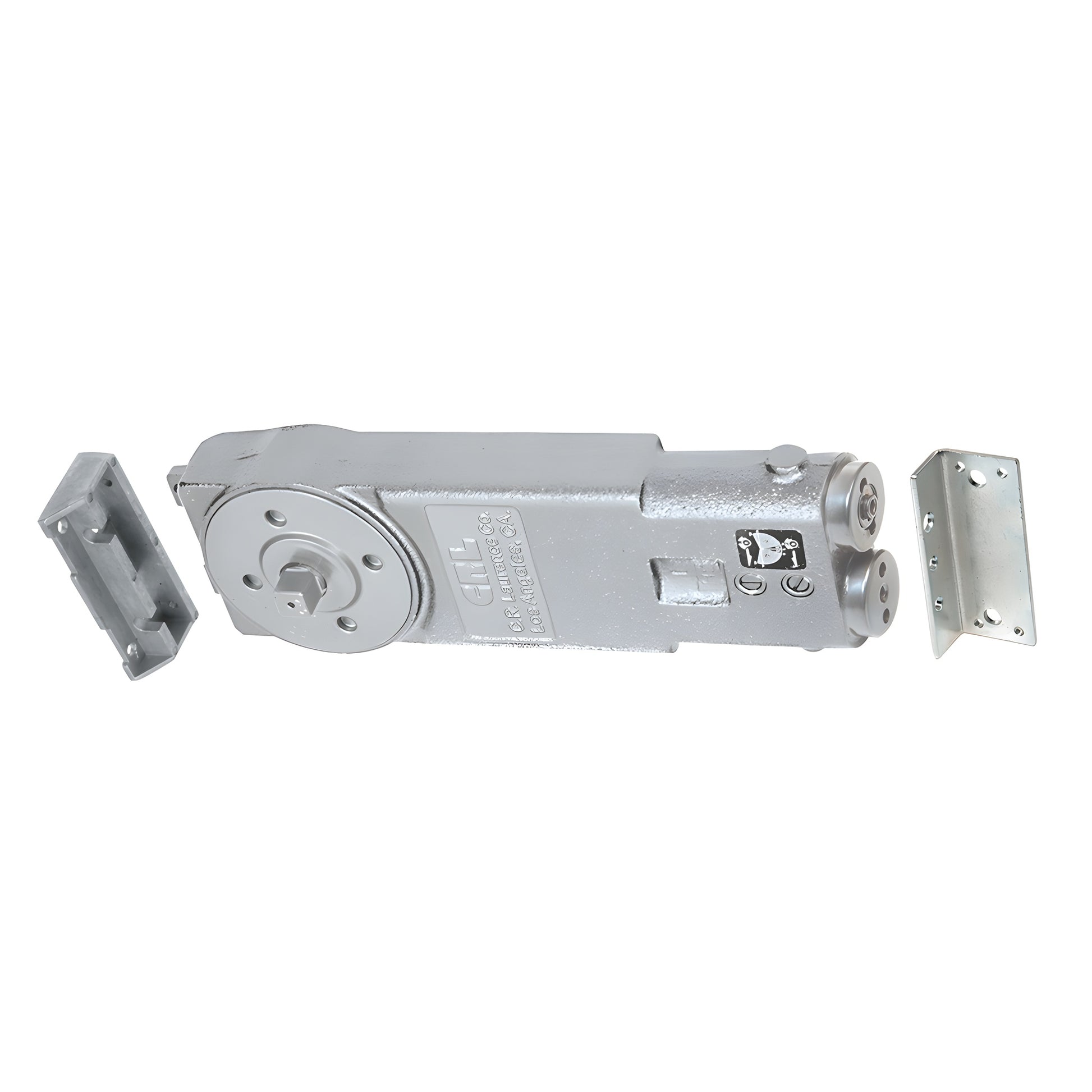

There are two advantages to buying our Door Closer Bodies with Mounting Clips (SKU: CRL6772). First, if you're replacing a worn out door closer, you save cost by reusing existing hardware instead of buying a complete unit. Second, add only the accessories you need—pivots, arms, and other parts—to build a custom overhead concealed door closer package for each job. Each door closer body ships with mounting clips, templates, and step-by-step instructions for fast installation.

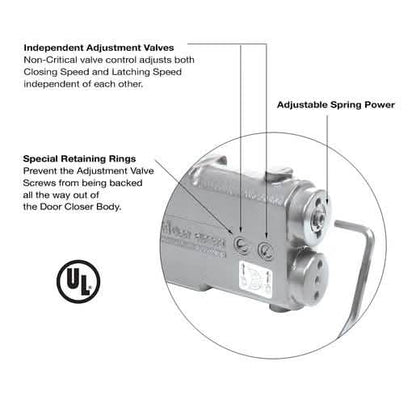

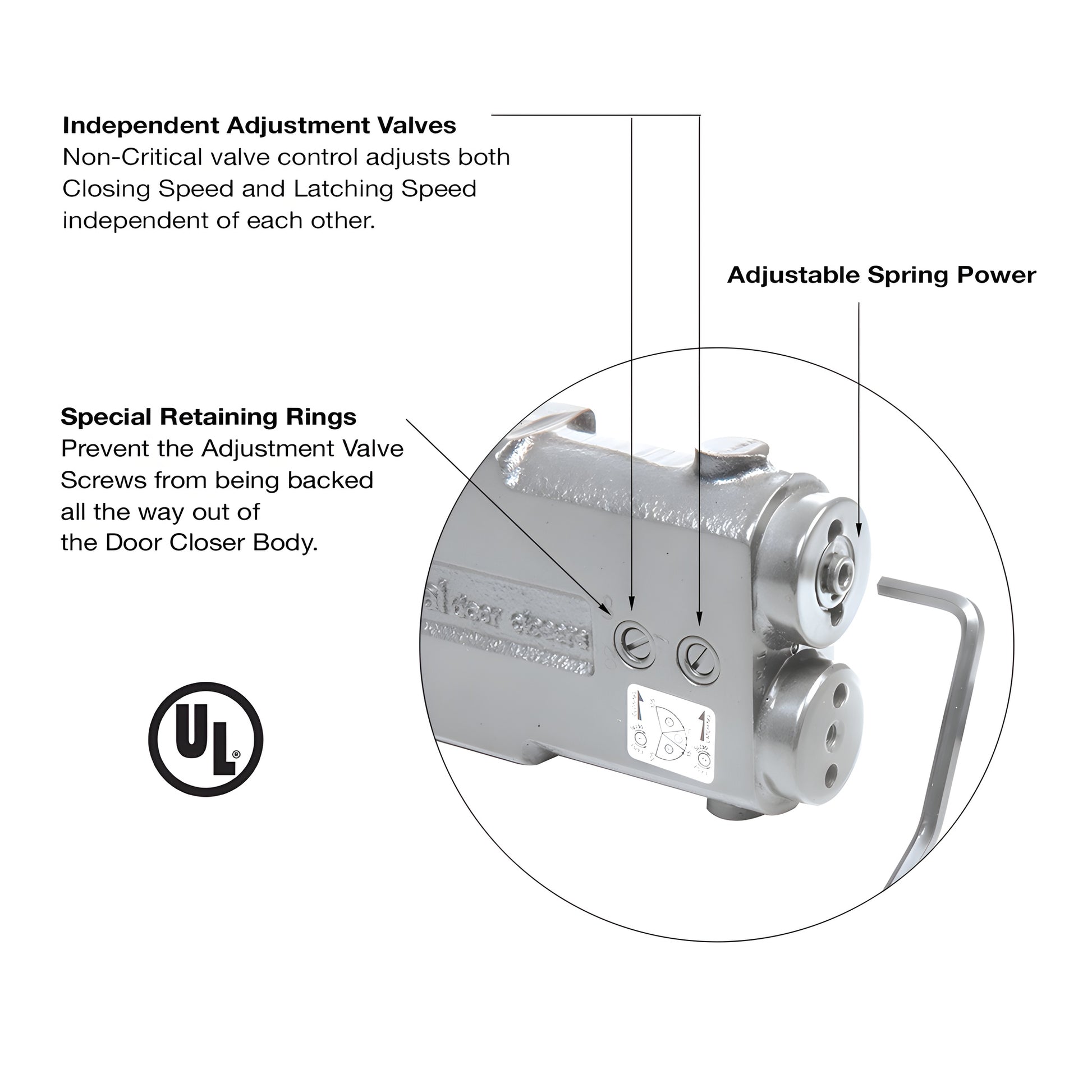

Independent Adjustment Valves
Non-critical valves allow independent adjustment of Closing Speed and Latching Speed for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed completely out of the closer body, increasing reliability in the field.

Installation Note:
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

ADA Compliance Advisory
Although A.D.A. Series door closers comply with A.D.A. specified opening forces, varying site conditions and door sizes may affect spring power and closing performance. Closers set to meet A.D.A. opening forces might not provide adequate spring power to reliably close the door in all installations.

Product Warning:
Closers adjusted to A.D.A. opening force limits may not control and close the door under all site conditions—verify suitability for your application.


Enhance your replacement or retrofit project with the CRL6772 door closer body—buy now or contact CRL for sizing and accessory recommendations.
