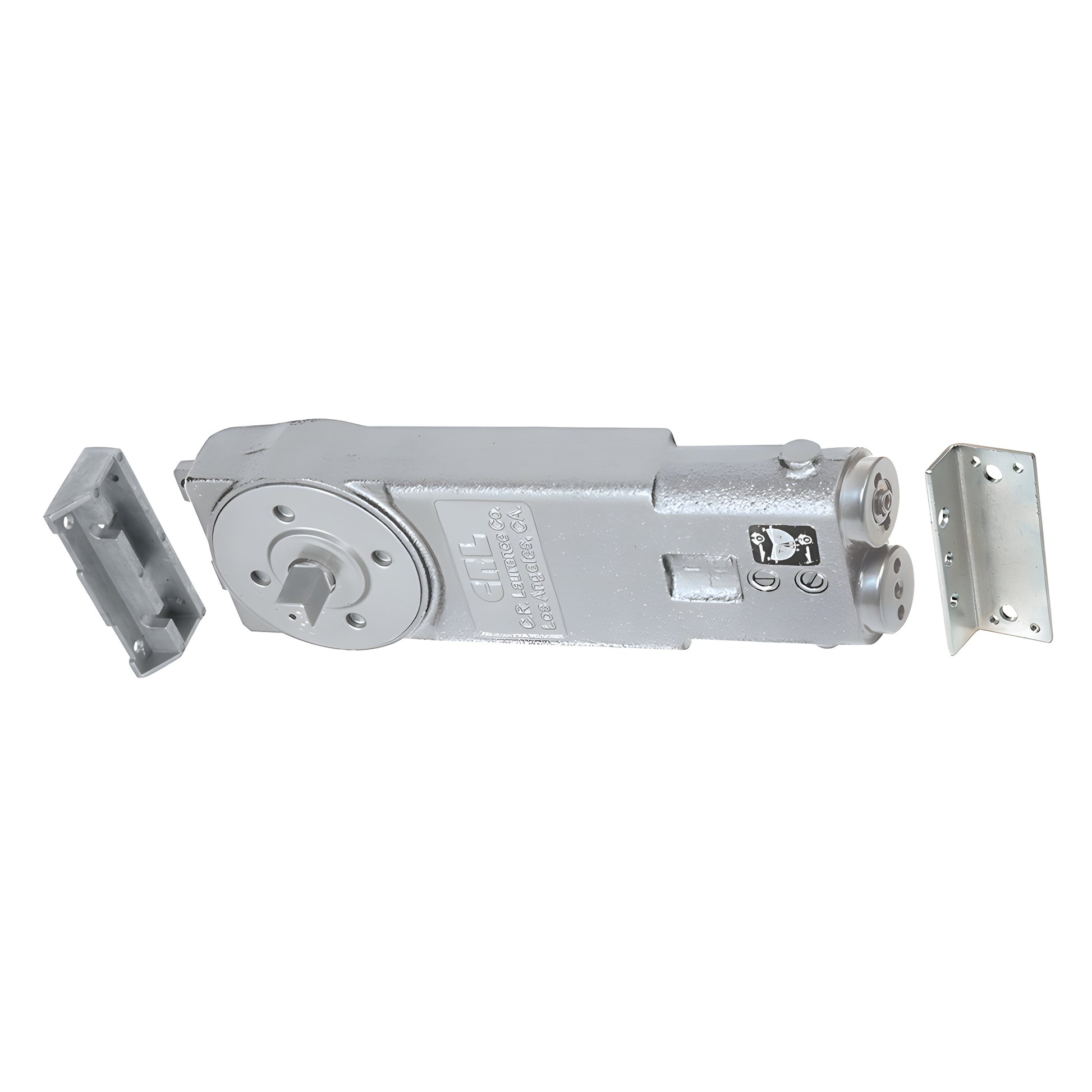

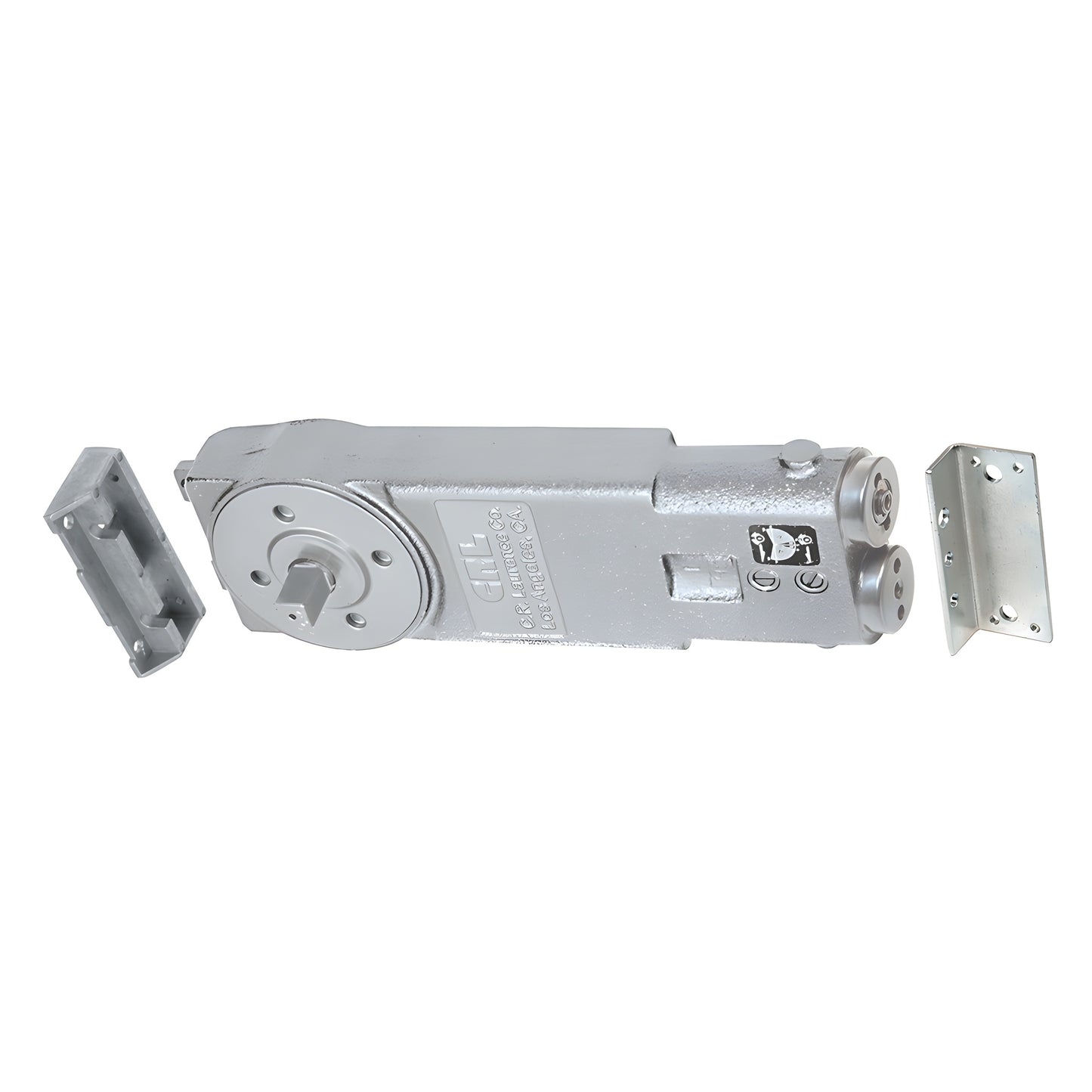

CRL 3/4" Spindle Concealed Overhead Door Closer Body 105° No Hold Open

• Interchangeable with Jackson®-style and similar overhead concealed door closers
• Extended 3/4" (19 mm) spindle for patch fittings, door rail hardware, or extra reach
• New adjustable spring power models for precise control
• 5 Year Limited Warranty
• UL Listed
• Conveniently packaged with templates, mounting clips, and instructions

CRL Adjustable Spring Power Overhead Concealed Door Closer — SKU CRL9772

This adjustable, overhead concealed door closer with extended 3/4" (19 mm) spindle meets Federal A.D.A. opening force requirements when used with patch fittings and rail hardware. The closer features independent, dual-action (non-critical) valves to separately adjust closing speed and latching speed. Available in 90° and 105° hold-open and no-hold-open models. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is interchangeable with International, Jackson® and similar brands.

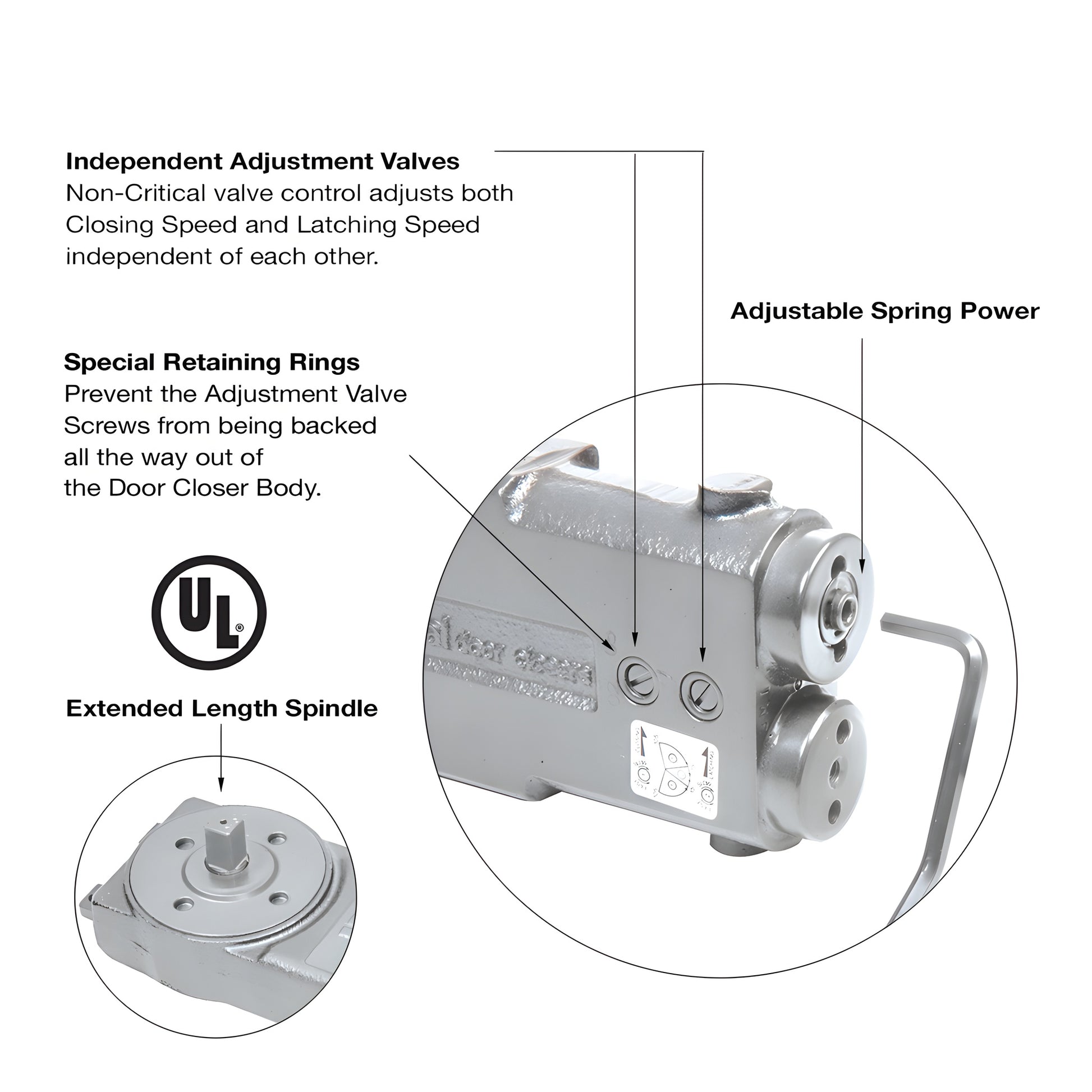

Extended Length Spindle
3/4" (19 mm) spindle designed for use with patch fittings, door rail hardware, or applications requiring extra reach.

Independent Adjustment Valves
Separate valves for precise control of closing speed and latching speed without interaction.

Special Retaining Rings
Prevent valve screws from being backed out of the closer body for added durability and safety.

Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

Product Warning
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door in all site conditions or door sizes. Verify site requirements before installation.
