CRL Adjustable 90° No-Hold-Open Overhead Concealed Closer Body Only
CRL Adjustable 90° No-Hold-Open Overhead Concealed Closer Body Only
Regular price
$221.54 CAD
Regular price
Sale price
$221.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL6762
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Includes
CRL8010FS
Maximum Door Weight
200
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
36 Inches
No Hold Open
90°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1/2
UL Listed
Yes
Overview
- Interchangeable with all Jackson® style overhead concealed door closers
- 20 models available
- Conveniently packaged with templates and instructions
- 5-year limited warranty
- UL Listed

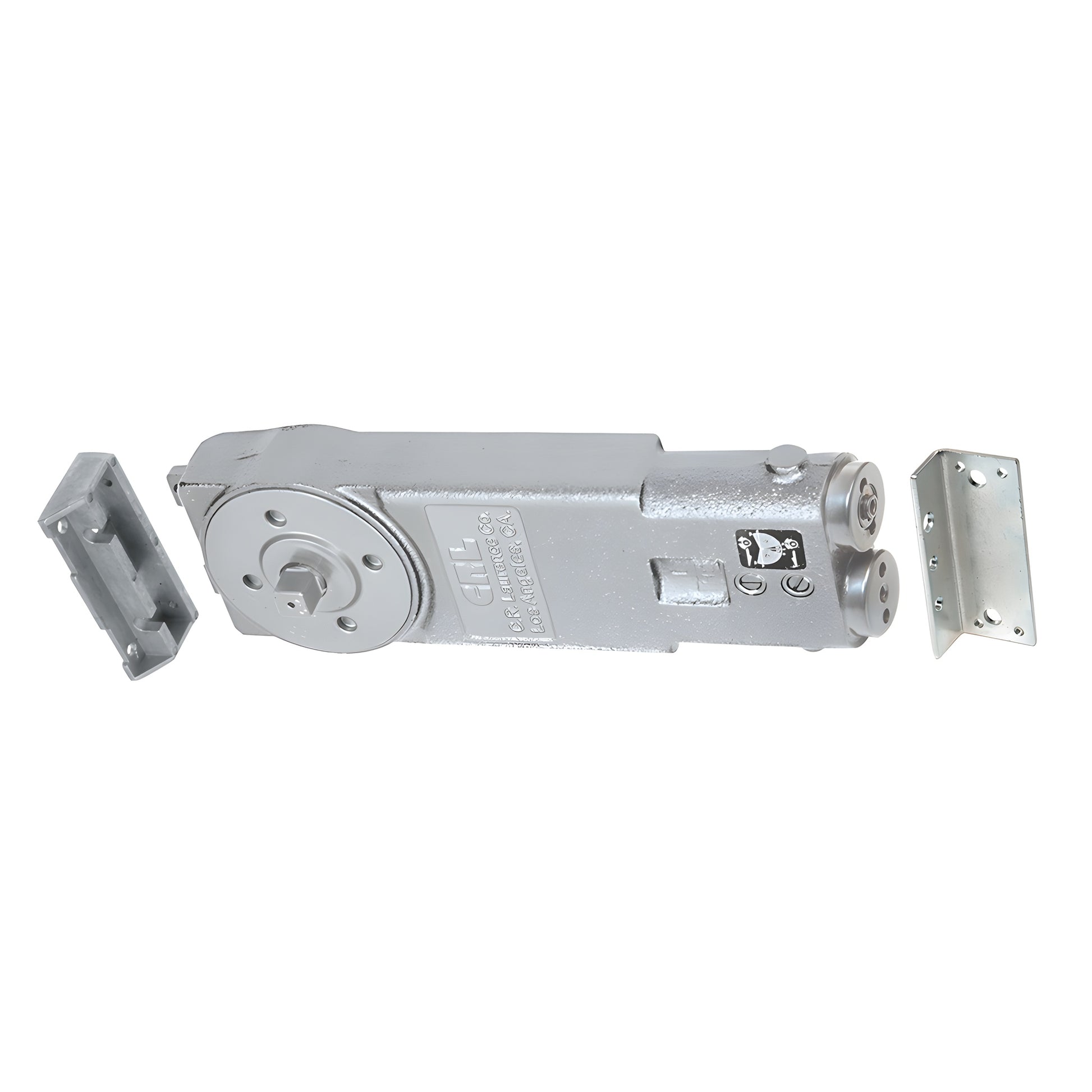

Save cost and customize installations with our Door Closer Bodies with Mounting Clips (SKU: CRL6762). Ideal for replacing a worn closer body or building a tailored overhead concealed door closer package, these bodies accept accessory parts—pivots, arms, and other components—so you only purchase what you need. Each unit ships with mounting clips, templates, and step-by-step instructions.

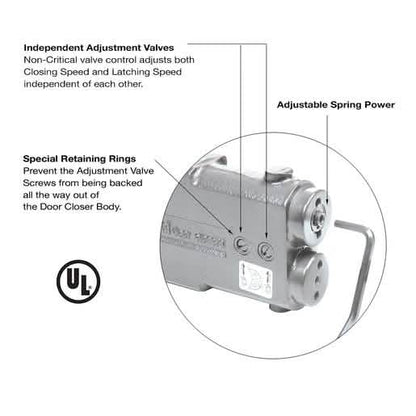

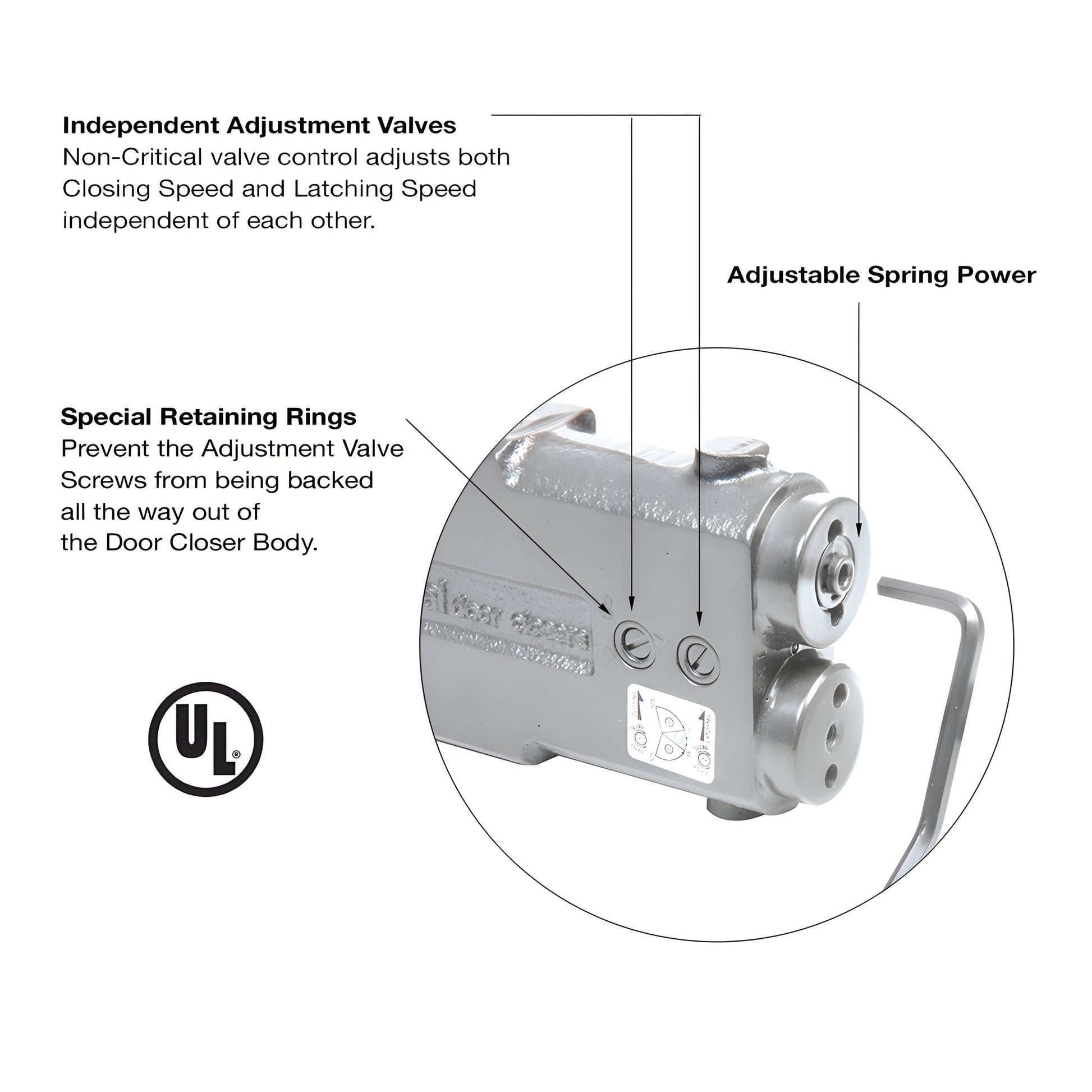

Independent Adjustment Valves
Non-critical valve control independently adjusts both closing speed and latching speed for precise door operation.
Special Retaining Rings
Retaining rings keep adjustment valve screws from backing out of the door closer body, improving serviceability and safety.
Note:
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the maximum door swing.
Weight and Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
Door height: 96" (2.44 m)
ADA Compliance Advisory
A.D.A. series door closers comply with A.D.A. specified opening forces, but site conditions and door size can affect spring power. Closers adjusted to meet A.D.A. opening-force limits may not provide sufficient closing force in every installation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Match, replace, or build the perfect Jackson® style overhead concealed door closer with CRL6762—select your accessories and order now.
