CRL Adjustable Spring 90° Hold-Open Concealed Door Closer 3/4" Spindle
CRL Adjustable Spring 90° Hold-Open Concealed Door Closer 3/4" Spindle
Regular price
$210.16 CAD
Regular price
Sale price
$210.16 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9760
Shipping Weight: 9.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Hold Open
90°
Includes
CRL8010FS
Maximum Door Weight
200
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Interchangeable with all Jackson®-style overhead concealed door closers
- Extended 3/4" (19 mm) long spindle for patch fittings and door rail hardware
- New adjustable models available
- 5 Year Limited Warranty
- UL Listed
- Conveniently packaged with templates and instructions

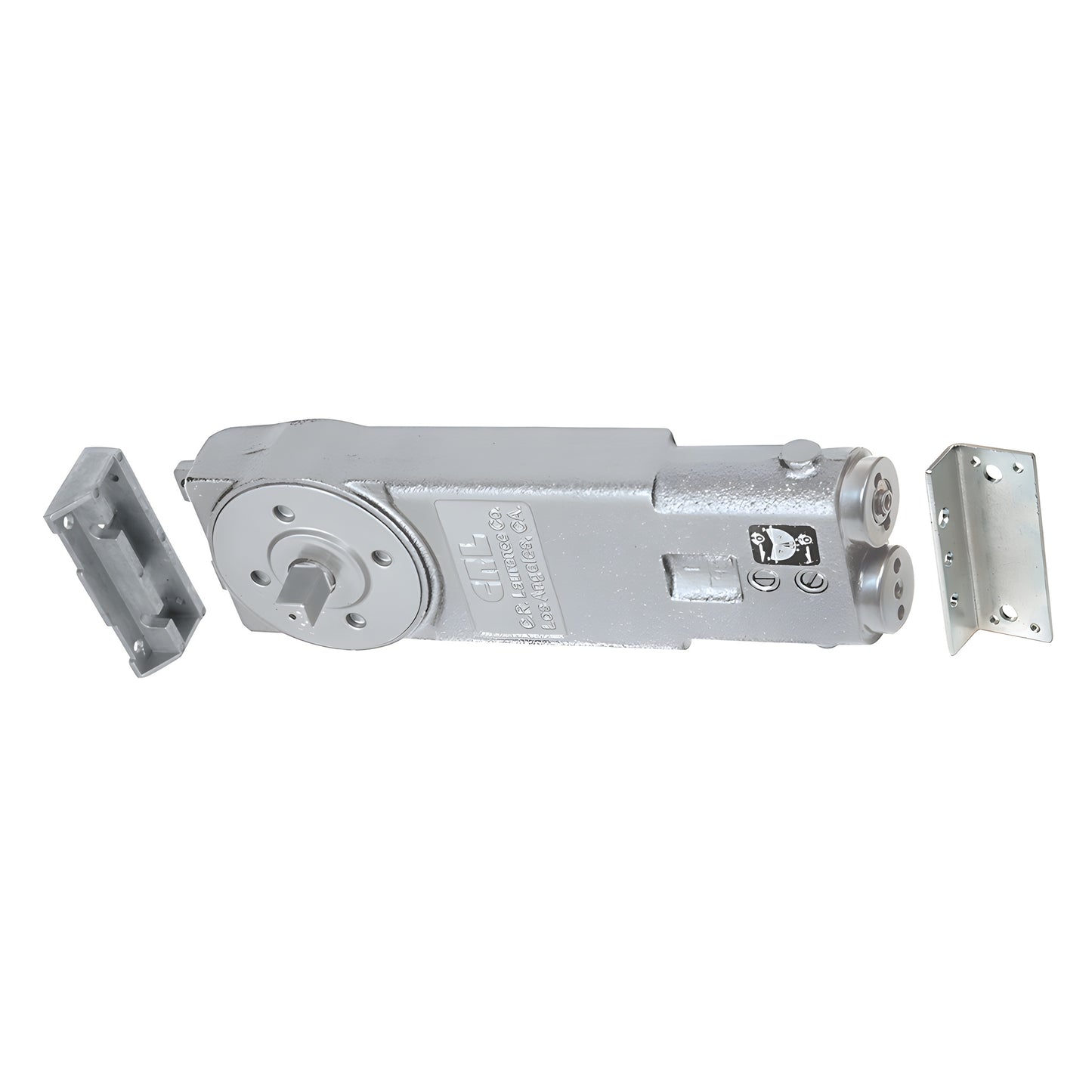

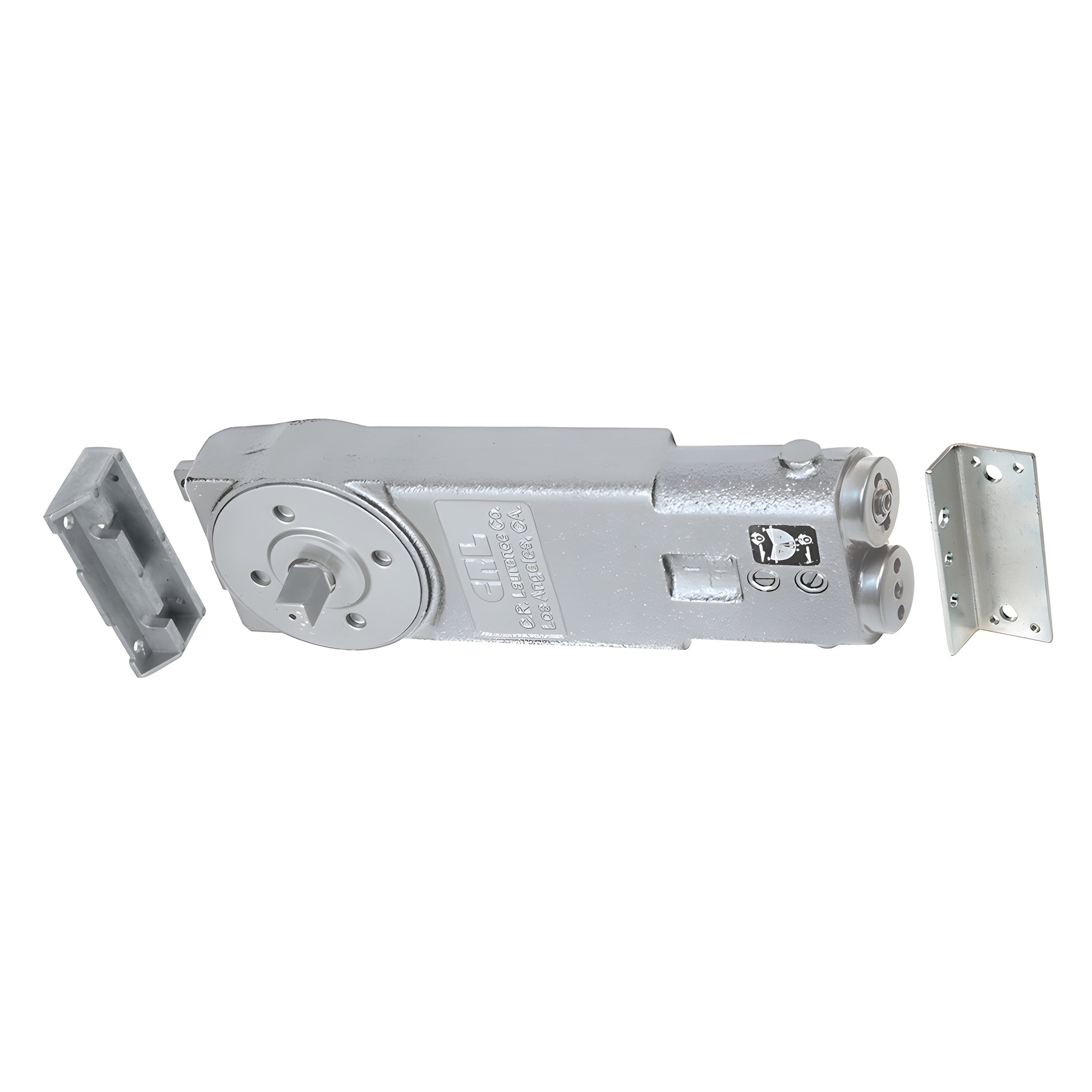

CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL9760) is designed for use with patch fittings and rail hardware and can be set to meet Federal A.D.A. opening force requirements when installed accordingly. The closer features independent dual-action valves for separate closing and latching speed control. Available in both 90° and 105° hold-open and no hold-open models. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is interchangeable with International, Jackson® and similar overhead concealed closer brands. Each unit ships with mounting clips, templates and installation instructions.

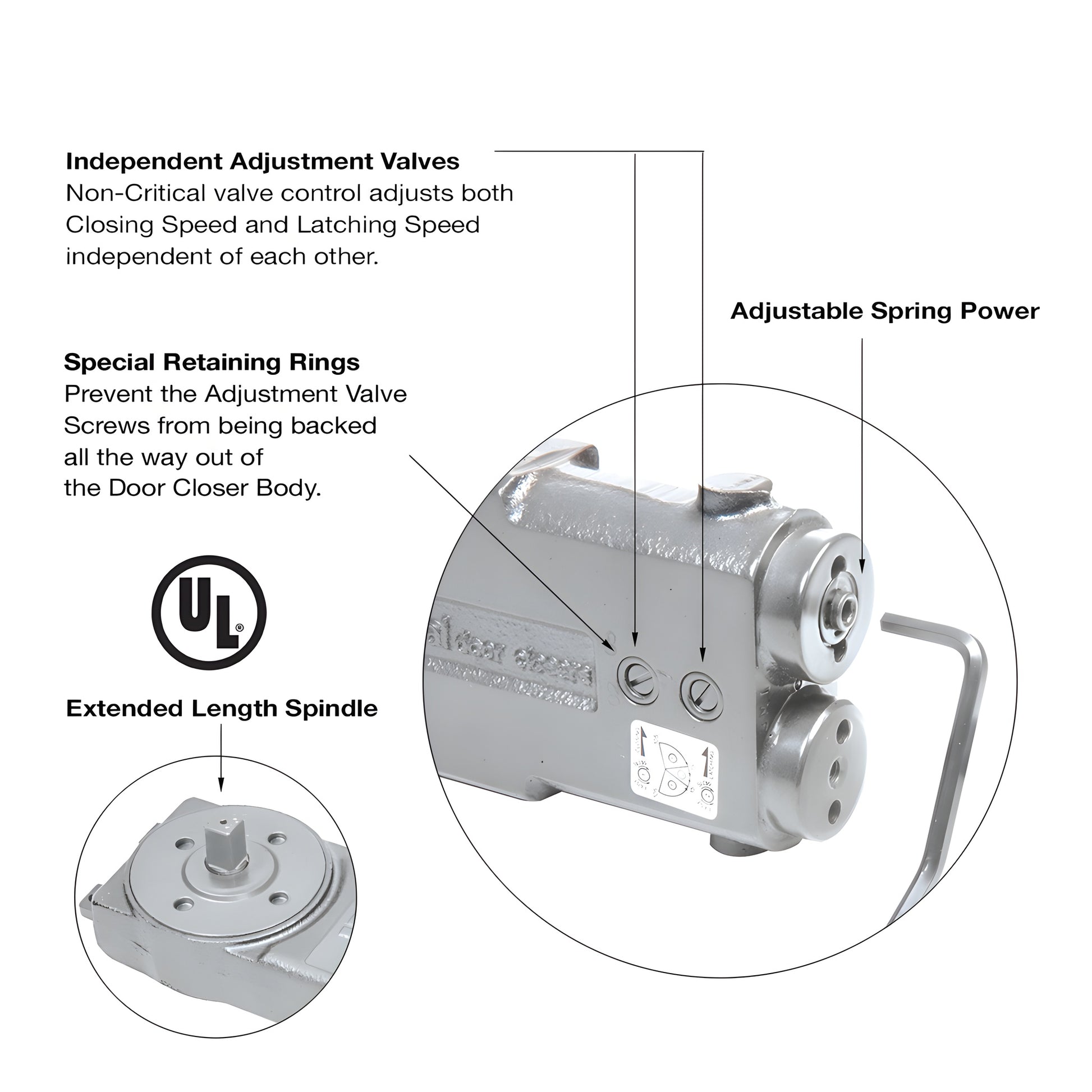

Extended Length Spindle
3/4" (19 mm) long spindle provides additional reach for patch fittings, door rail hardware, or applications requiring extra spindle length.
Independent Adjustment Valves
Non-critical valve design allows independent adjustment of closing speed and latching speed for precise, ADA-focused performance.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the closer body, improving reliability and safety.
Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
Product Warning
Closers adjusted to comply with A.D.A. opening force limits may not provide sufficient spring power to reliably control and close the door under all site conditions or door sizes. Verify performance on your specific door installation.
