CRL Concealed Overhead Door Closer 90° No Hold-Open, 3/4in Spindle

• Interchangeable with all Jackson® style overhead concealed door closers and similar brands
• Extended 3/4" (19 mm) long spindle for use with patch fittings and door rail hardware
• New adjustable models with independent valve control
• 5 Year Limited Warranty
• UL Listed
• Conveniently packaged with templates and instructions

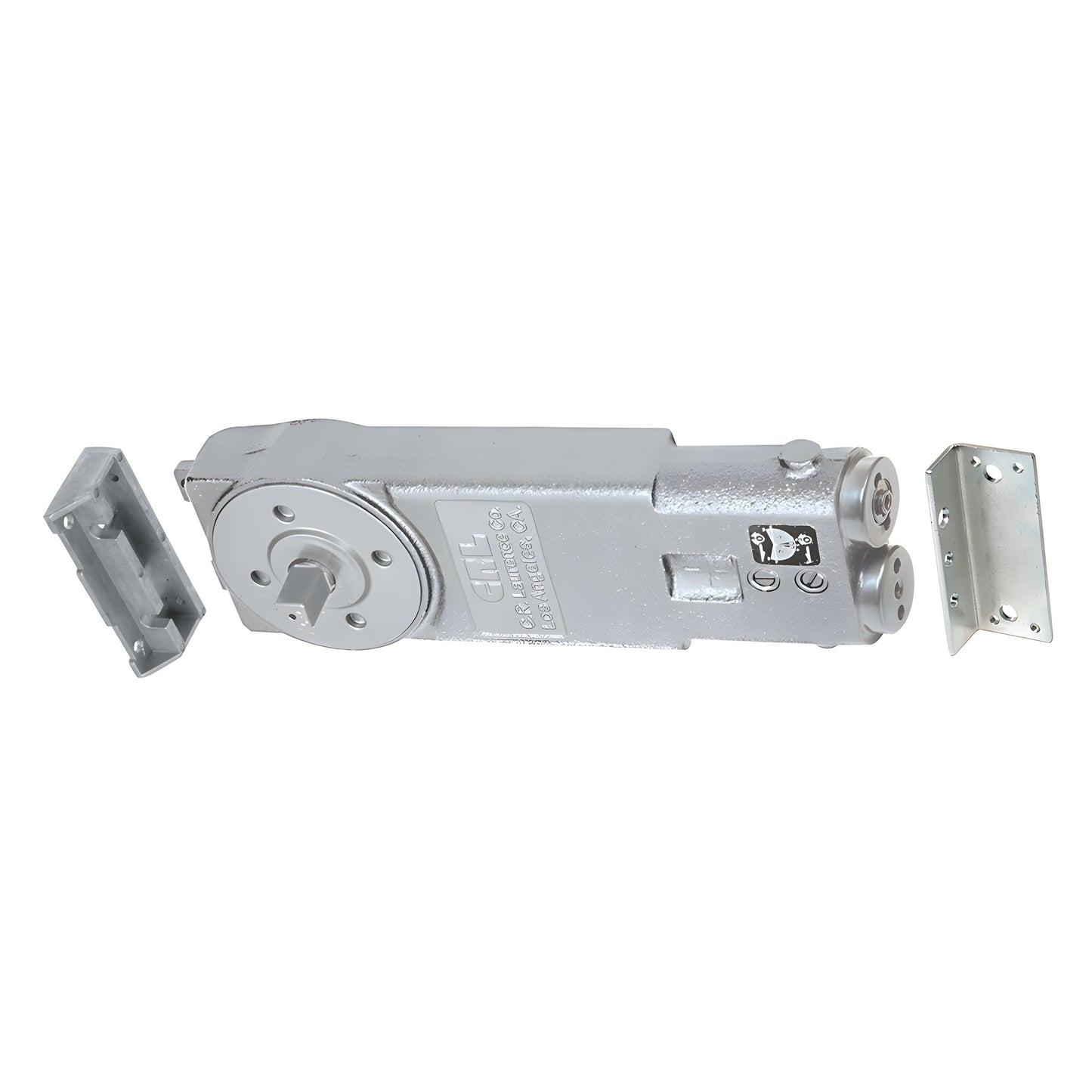

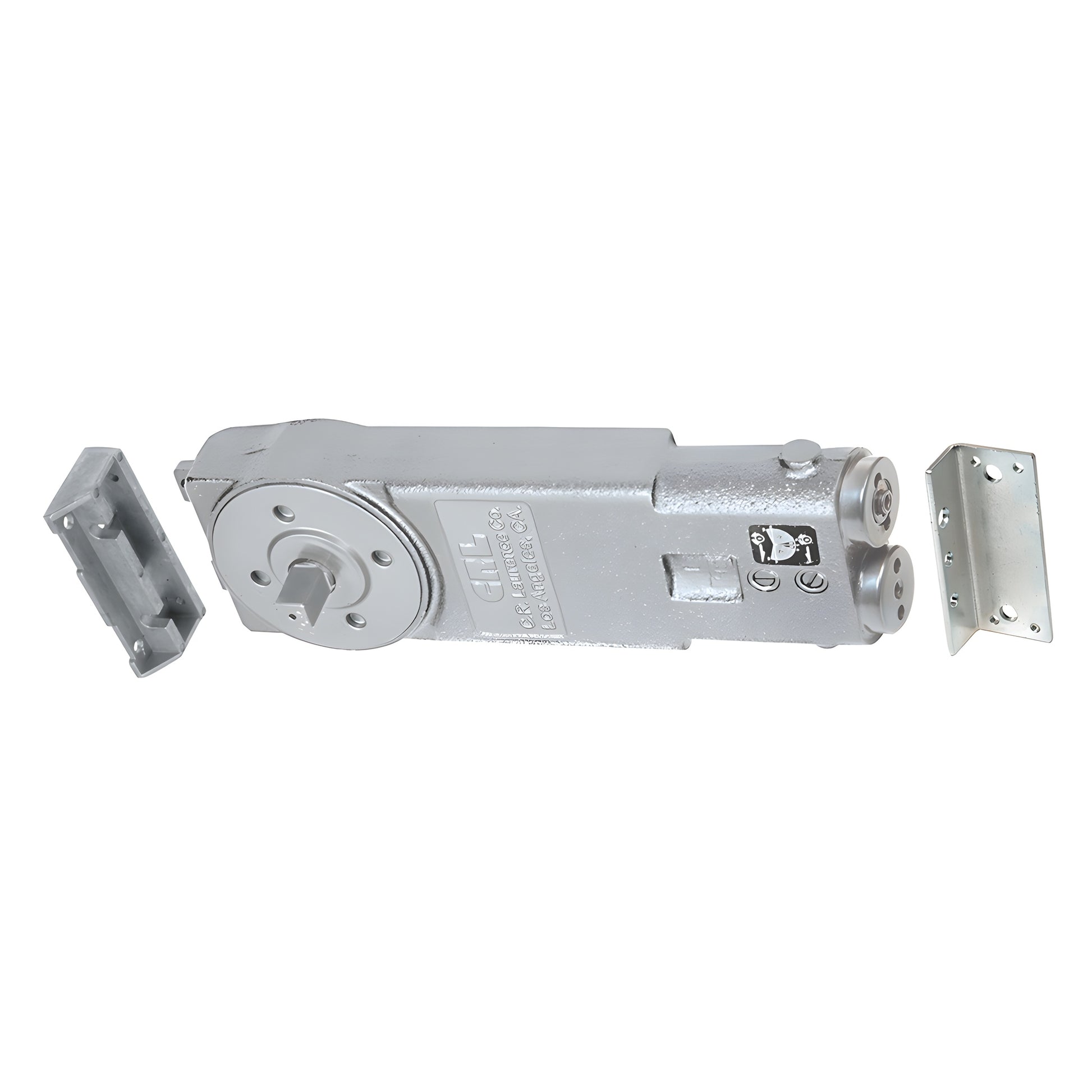

CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL9762) — Concealed overhead door closer with extended 3/4" (19 mm) spindle designed for patch fittings, door rail hardware, and applications requiring extra reach. Meets Federal A.D.A. opening force requirements when properly adjusted and installed. Independent dual-action valves let you separately control closing and latching speeds. Available in 90° and 105° hold-open or no hold-open models. Closer bodies fit standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Mounting clips, templates and instructions included.

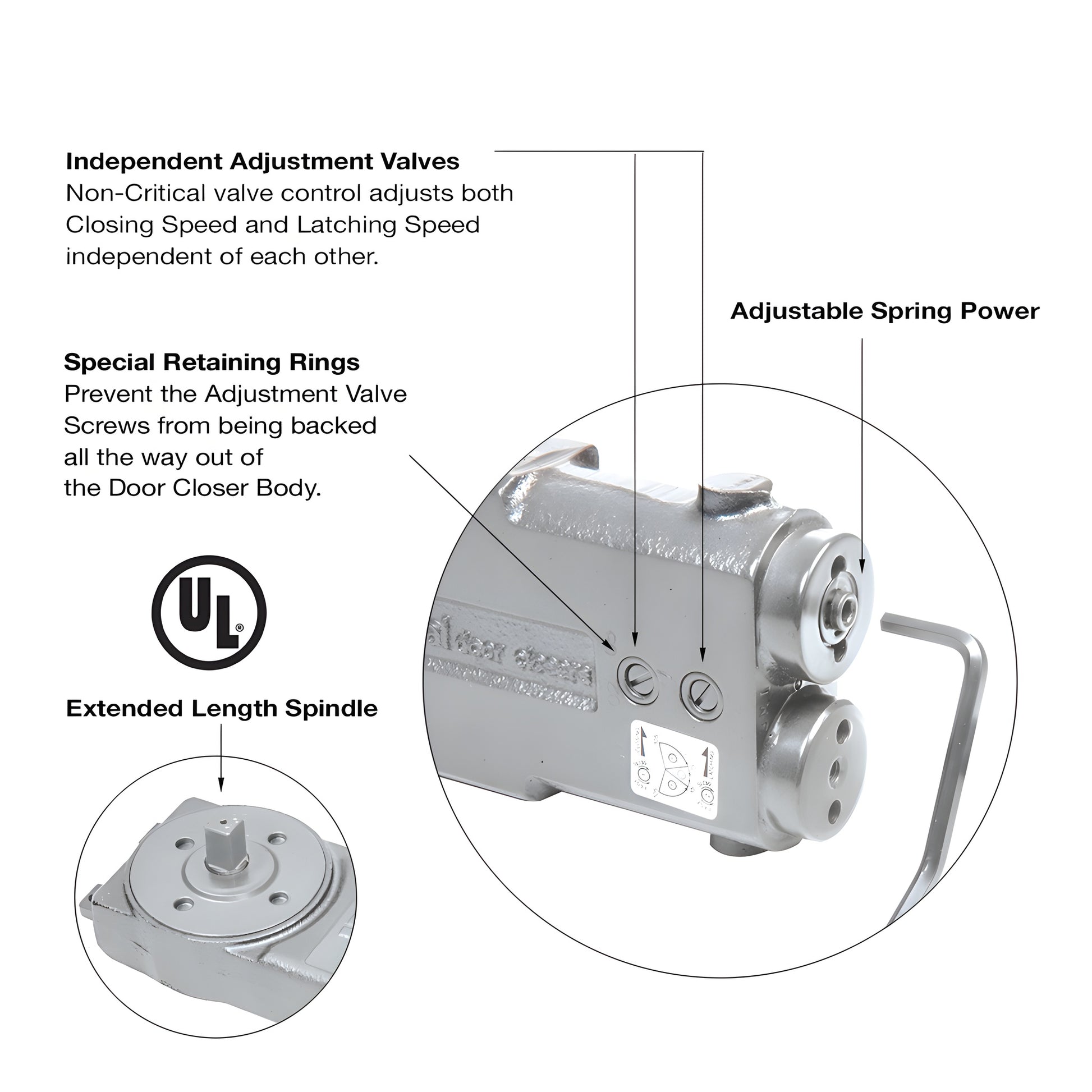

Extended Length Spindle
3/4" (19 mm) spindle for patch fittings, door rail hardware, or added reach where needed.

Independent Adjustment Valves
Non-critical valves independently adjust closing speed and latching speed for precise door control.

Special Retaining Rings
Retaining rings prevent valve screws from being backed out of the closer body during maintenance or adjustment.

Weight & Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
Maximum Door Height: 96" (2.44 m)

Product Warning
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door under varying site conditions and door sizes. Verify performance on-site.
