CRL
#8 x 1-1/2" Phillips Flat Head Sheet Metal Scre...
$0.16
CRL
CRL Aluminum 120" Windscreen Base Shoe Extrusion for 3/8-1/2" Glass
Item# W5B10
Shipping Weight: 27.53 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 27.53 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

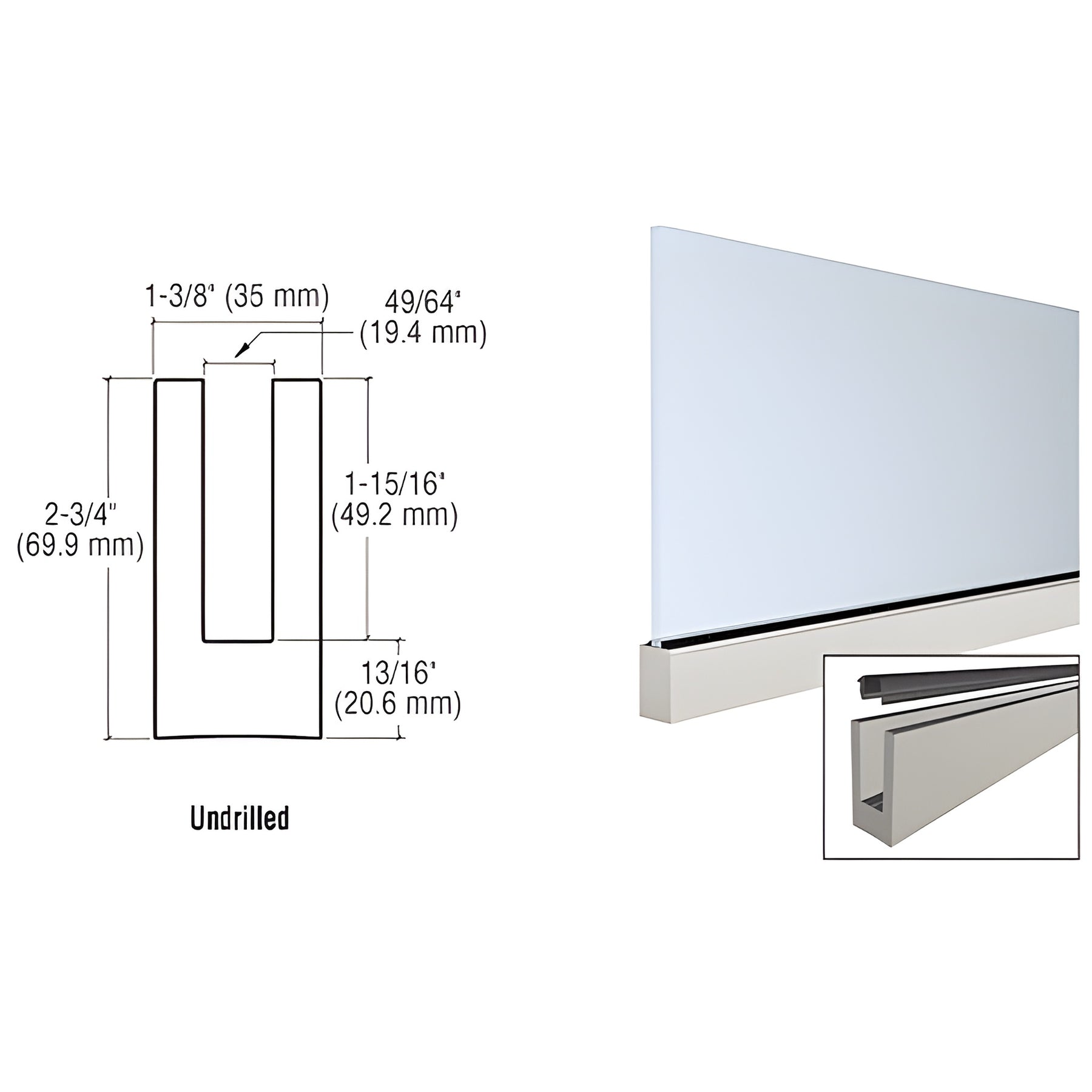

Finish/Color
Mill
Glazing Thickness - Dry Glaze
3/8 Inch
Glazing Thickness - Monolithic
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
120 in. (3048 mm)
Material
Aluminum
Profile
Undrilled
Width
1-3/8 in. (35 mm)
- Works with TL3X10 TAPER-LOC® sets
- Designed for windscreens and privacy partitions
- Available drilled or counter-bored — custom drilling to your specifications
- 6063 alloy, T52 temper
CRL Standard small-profile windscreen base shoe (SKU: W5B10) accepts 3/8" or 1/2" (10 or 12 mm) tempered glass and is typically used as the base channel for windscreens and privacy partitions. It secures each glass panel with CRL's patented dry-glazed TAPER-LOC® system. Not recommended for handrail/guard rail applications. For 1/2" (12 mm) glass, use CRL's wet-glaze method.
Product warning:
All heavy base shoes have a stock length tolerance of ±3/4" (19 mm).
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual color may vary by monitor.
Order SKU W5B10 for a durable, small-profile windscreen base shoe with TAPER-LOC® compatibility — contact us to request custom drilling or confirm shipping weight.
