CRL Aluminum 1900 Series Non-Handed Rim Panic Exit Device
CRL Aluminum 1900 Series Non-Handed Rim Panic Exit Device
Regular price
$1,793.79 CAD
Regular price
Sale price
$1,793.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1900A
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Door Thickness 1-3/4 in. | (44.5 mm) |
Faceplate | Optional |
Finish/Color | Satin Aluminum |
Handing | Non Handed |
Includes | Mounting Hardware |
Material | Steel |
Minimum Stile Width 1-3/4 in. | (44.5 mm) |
Model | 1900 |

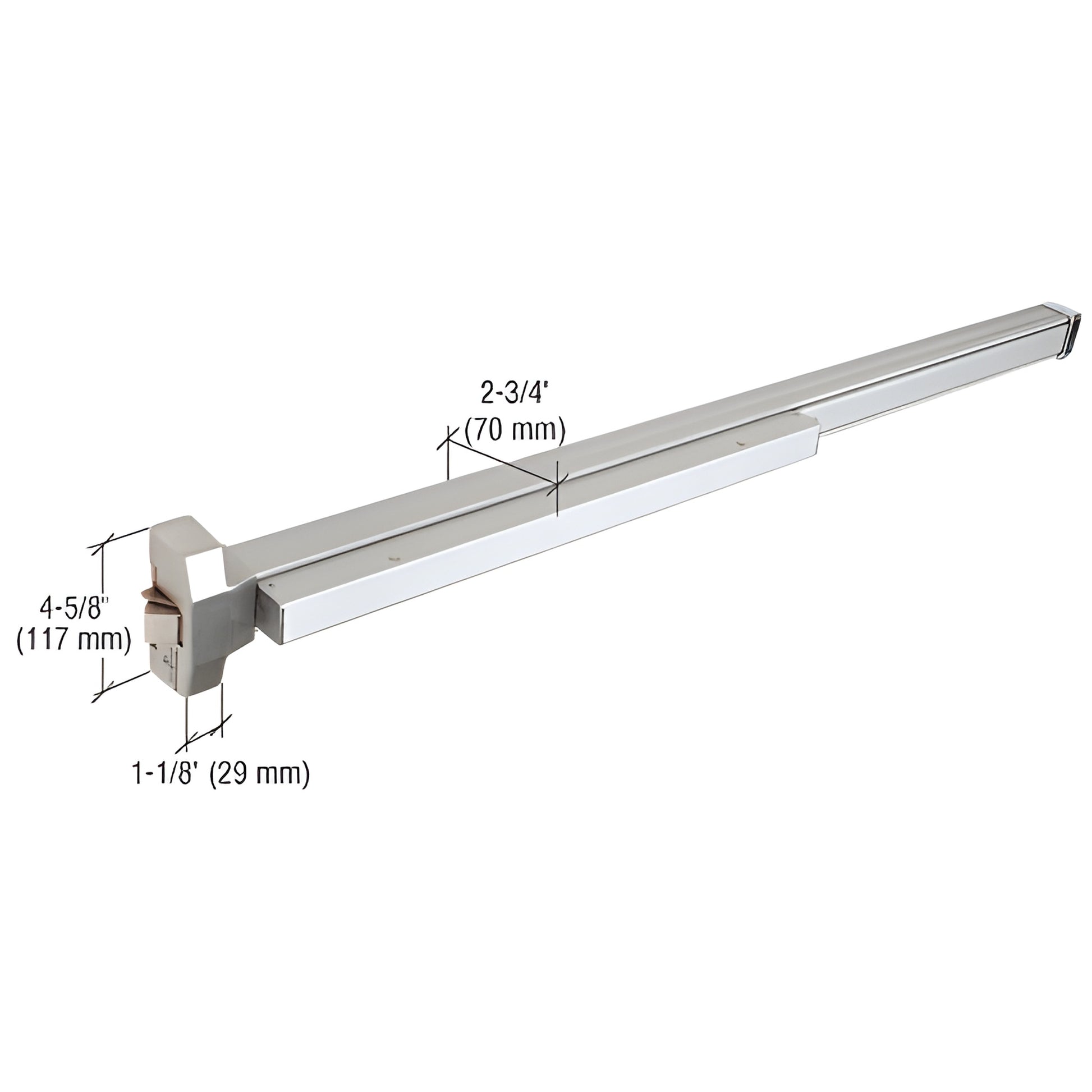

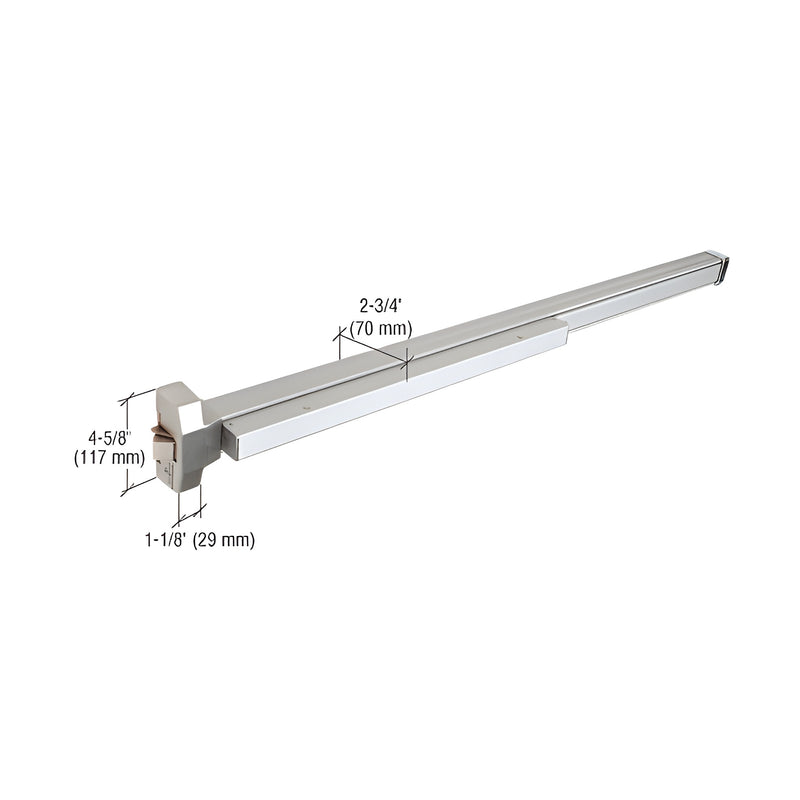

Panic Bar Base Height 1-7/8 in. | (47.6 mm) |
Panic Bar Projection 2-3/4 in. | (69.9 mm) |
Panic Bar Width Net 42-1/2 in. | (1079.5 mm) |
Panic | Dogging Standard Hex Key Dogging |
Panic Head Base Width 1-1/8 in. | (28.6 mm) |
Panic Head Height 4-5/8 in. | (117.5 mm) |
Panic | Type Rim Exit Device |
Push Pad Width 22 in. | (558.8 mm) |
Recommended | Door Type Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal |
Replacement Parts DL | 2170SCKDA, DL2170Y8KDA |
Similar | 311295C4628 |
U | L Listed Yes |
Overview
The CRL 1900 Series Narrow Stile Panic Exit Devices are expertly designed for use with 1-3/4" narrow stile aluminum doors, and are also compatible with medium and wide stile aluminum, wood, or hollow metal doors.
Featuring concealed fastening for enhanced security, these devices are non-handed and reversible, making them versatile and easy to install.
With a robust construction that includes a 3/4" throw cast brass latch bolt and a surface-mounted adjustable roller strike, these devices ensure durability and reliability.
For added convenience, they are UL listed and can be upgraded for keyed entry with an optional Rim Cylinder, such as the Cat.
No.
DL911SC Series.
Featuring concealed fastening for enhanced security, these devices are non-handed and reversible, making them versatile and easy to install.
With a robust construction that includes a 3/4" throw cast brass latch bolt and a surface-mounted adjustable roller strike, these devices ensure durability and reliability.
For added convenience, they are UL listed and can be upgraded for keyed entry with an optional Rim Cylinder, such as the Cat.
No.
DL911SC Series.
