- For Use with Deadlatch and Cylindrical Latches with 1/2" to 5/8" (12 to 16 mm) Projection
- Field Convertible from Fail-Secure or Fail-Safe
- 12V DC or 24V DC Models
- Non-Handed
This

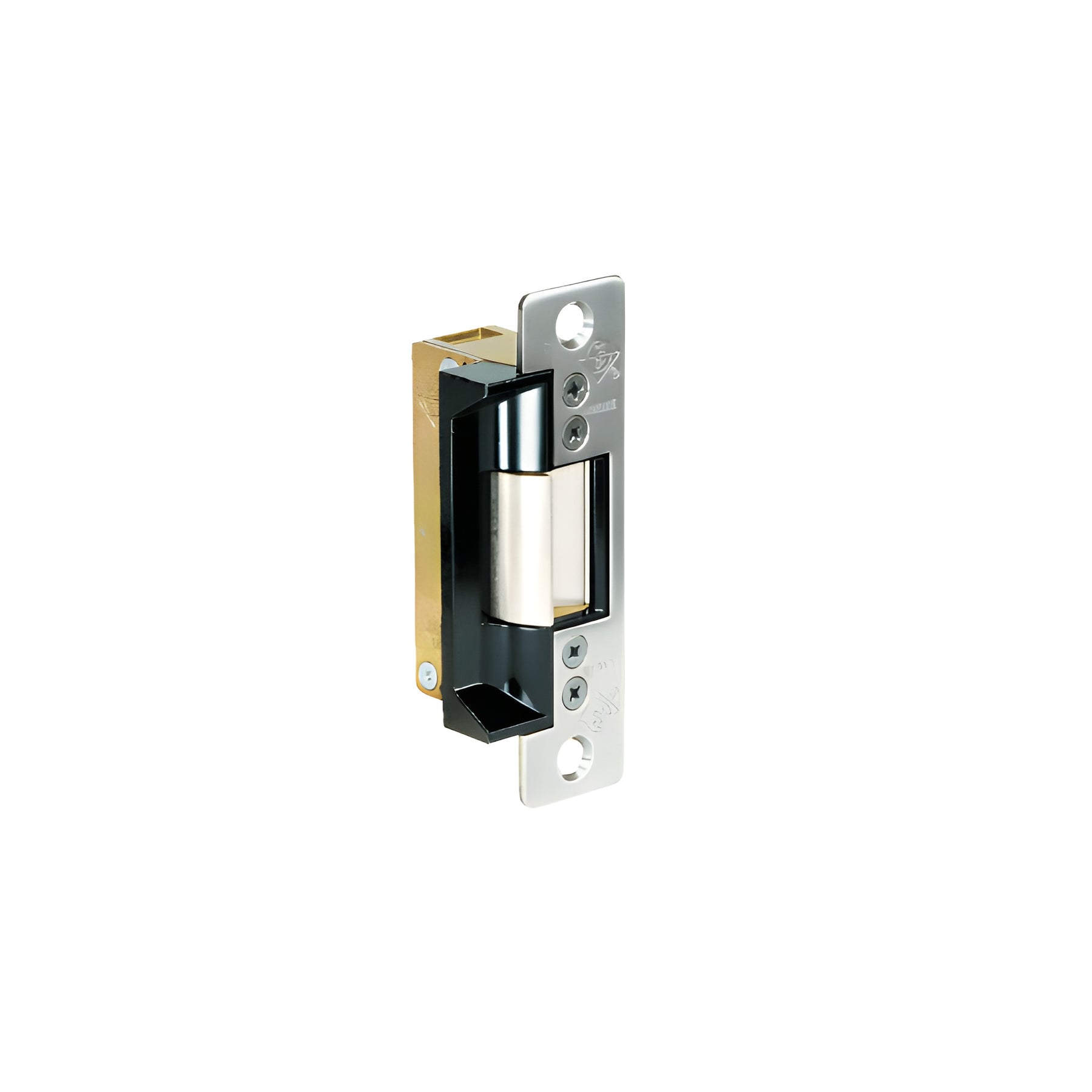

CRL Adams Rite® 7100 Electric Strike
provides for remote electrical actuation to unlock the strike jaw and release the latch bolt for entry without operating the latch. The standard Strike is supplied in fail-secure mode, but is field convertible to fail-safe. Standard 7100 Strike has lip of proper length for 1-3/4" (44 mm) thick door that closes flush with jamb edge. Strikes are supplied with a finished flat faceplate.
SPECIFICATIONS
Input
12 Volts DC or 24 Volts DC
Current Draw
330mA @ 12V DC, 170mA @ 24V DC
Dimensions
Faceplate - Flat = 1-1/4" x 4-7/8" (32 x 124 mm); Case: 1" x 3-3/8" x 1-5/8" (25 x 86 x 41 mm) Strike Opening: 5/8" x 1-7/16" x 1/2" (16 x 37 x 13 mm)
Shipped as Fail-Secure Lock
Requires Power to Unlock. Field Convertible to Fail-Safe Mode.
Product Warning
This Strike is supplied as Fail-Secure. It can be converted in the field to Fail-Safe function this is a 12V DC device. AC is available on special order only. Please contact Technical Sales for a Quotation.
