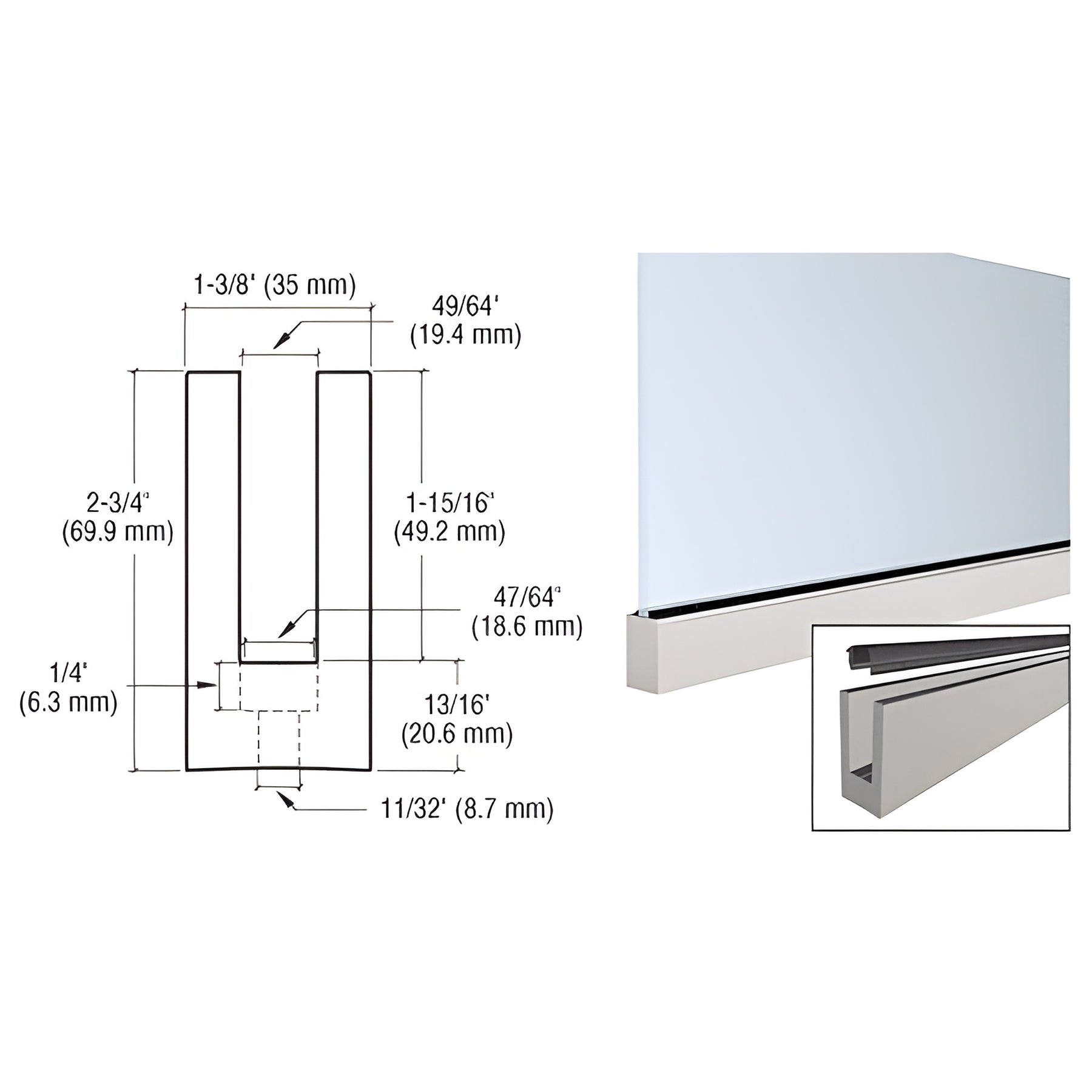

CRL Aluminum 240" Small-Profile Windscreen Base Shoe 3/8-1/2" Drilled

• For 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
• Available pre-drilled in 10 and 20 foot lengths (pre-drilled windscreen base shoe)
• Available drilled and counter-bored, or custom drilling to your specifications
• 6063 alloy, T52 temper (aluminum base shoe)

CRL standard small profile windscreen base shoe (SKU: W5B20D) is designed as a base channel for windscreens and privacy partitions using 3/8" or 1/2" (10 or 12 mm) tempered glass. It is a compact, low-profile solution preferred for tempered glass windscreen installations; not recommended for handrail/guardrail applications. Most standard glass windscreen applications use 3/8" (10 mm) monolithic tempered glass secured in the base shoe with CRL's patented Dry Glazed TAPER-LOC® System. NOTE: If 1/2" (12 mm) glass is required, use CRL's wet glaze method.

Product Warning:

All heavy base shoes have a stock length tolerance of plus or minus 3/4" (19 mm).

Order the W5B20D small profile windscreen base shoe for reliable tempered glass mounting—contact CRL for custom drilling and shipping details.
